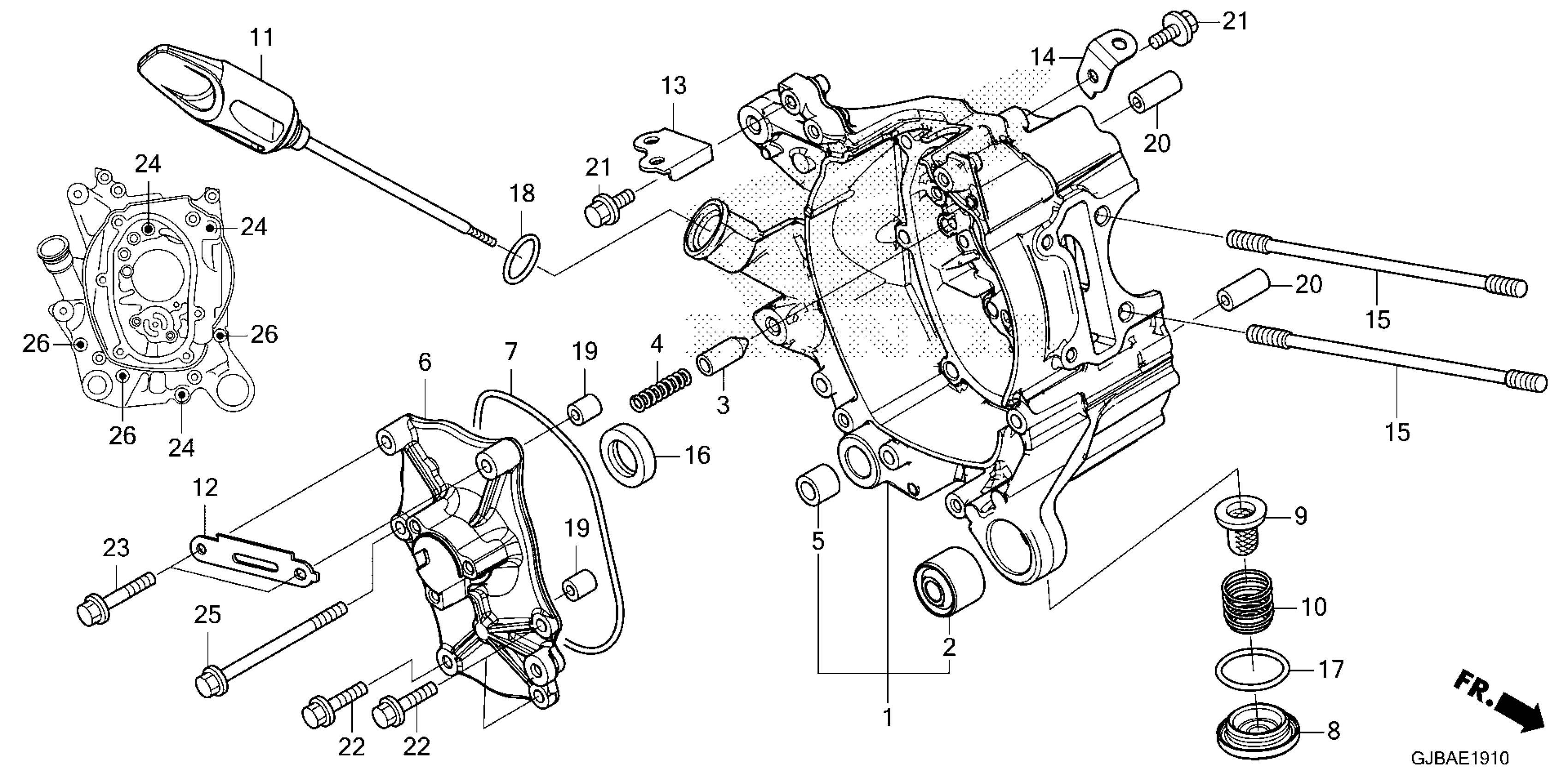

Honda NCW50AC (26) MOTORCYCLE, JPN, VIN# JH2AF771-TK900001 RIGHT CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-GGZ-J00

$63.38

2

BUSH, ENGINE HANGER RUBBER

11103-GGZ-J00

$2.51

3

PLUG, BEARING PUSH

11115-GFM-900

$4.49

4

SPRING, BEARING PUSH

11116-GFM-900

$2.08

5

BUSH, MAIN STAND

11205-GBC-300

$1.49

6

BASE, STATOR

11361-GGZ-J00

$9.31

7

GASKET, STATOR BASE

11363-GGZ-J00

$1.49

8

CAP, OIL HOLE

12361-KGF-305

$25.93

8

CAP, OIL HOLE This part replaces 12361-KGF-911.

12361-KGF-305

$25.93

9

SCREEN, OIL FILTER

15421-KPL-900

$1.64

10

SPRING, OIL FILTER SCREEN

15426-KVB-900

$1.64

11

DIPSTICK, OIL

15651-GGZ-J00

$2.82

12

CLAMP, ALTERNATOR WIRE

32961-GGZ-J00

$1.49

13

CLAMP A, ENGINE HARNESS

32962-GGZ-J40

Unavailable

14

CLAMP B, ENGINE HARNESS

32965-GGZ-J00

$1.49

15

BOLT A, STUD (7X182.5)

90031-GGZ-J00

$2.95

16

OIL SEAL (20.8X32X6)

91201-KWN-901

$1.49

17

O-RING (31.2X2.4) | Use from Engine SN 5120713.

91303-GGZ-J40

Unavailable

17

O-RING (31.2X2.4) | Use up to Engine SN 5120712.

91303-ZW9-000

$3.13

18

O-RING (18X3)

91307-035-000

$2.92

19

PIN A, DOWEL (8X10)

94301-08100

$2.25

20

PIN, DOWEL (8X20) (Honda Code 1417369)

94301-08200

$2.25

21

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

22

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

23

BOLT, FLANGE (6X38)

95701-06038-00

$1.89

24

BOLT, FLANGE (6X60)

95701-06060-00

$1.49

25

BOLT, FLANGE (6X80)

95701-06080-00

$2.34

26

BOLT, FLANGE (6X115)

95701-06115-00

$3.09
