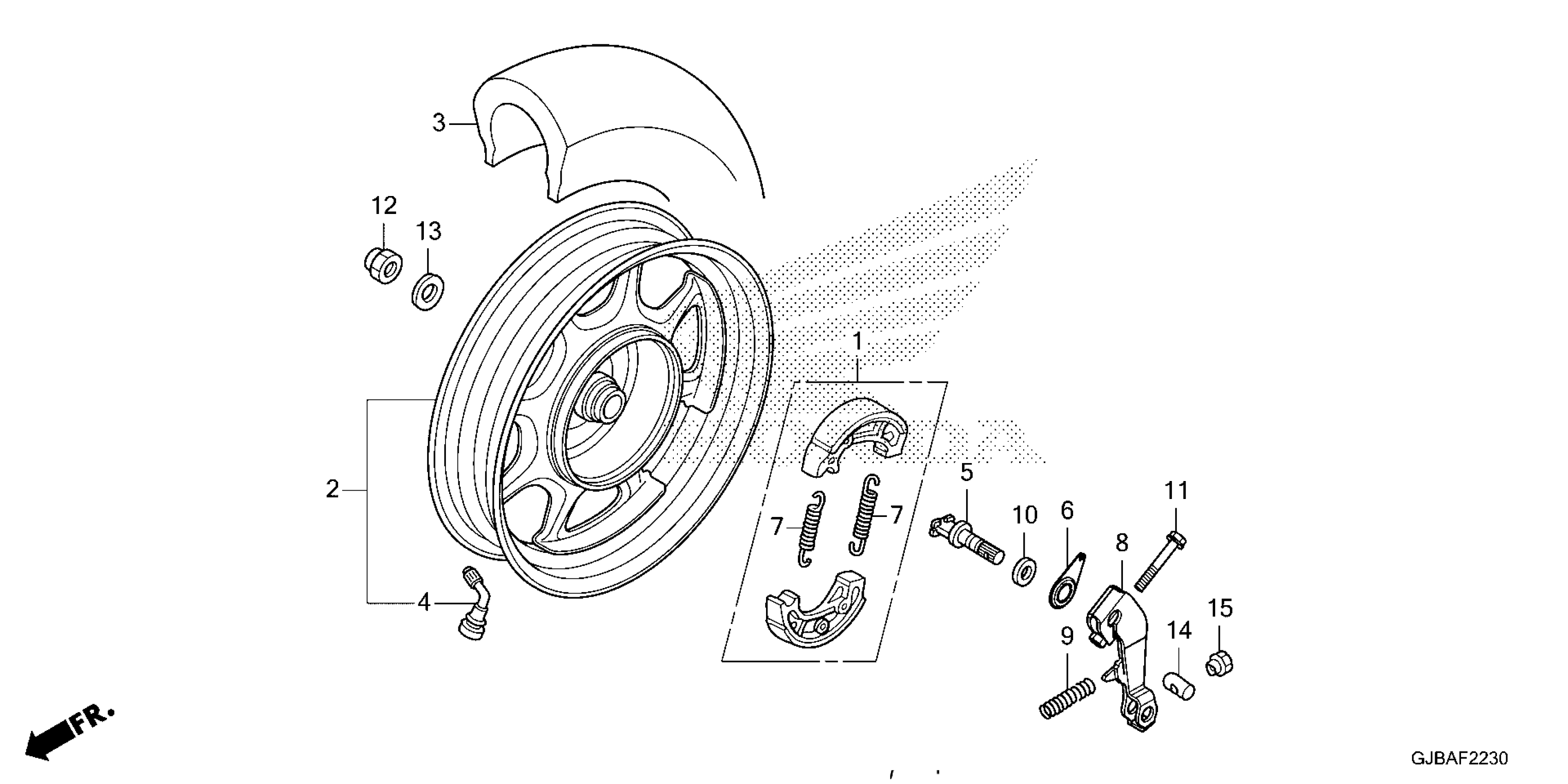

Honda NCW50AC (26) MOTORCYCLE, JPN, VIN# JH2AF771-TK900001 REAR WHEEL Diagram

SHOE SET, BRAKE

06430-GFH-750

$25.51

WHEEL SUB-ASSY., RR. *NH1* (BLACK)

42650-GJA-J01ZA

$114.22

TIRE (80/100-10 46J) (CST)

42711-GJA-J01

$64.72

VALVE, RIM (CST)

42753-K12-911

$2.43

CAM, RR. BRAKE

43141-GJA-J00

$5.91

INDICATOR, RR. BRAKE

43145-GGZ-J00

$0.49

SPRING, BRAKE SHOE This part replaces 43151-GFC-900.

43151-110-000

$2.80

SPRING, BRAKE SHOE (SEE KIT P/N--END OF BLOCK)

43151-110-000

$2.80

ARM, RR. BRAKE

43410-GGZ-J00

$2.45

SPRING, RR. BRAKE ARM

43472-GGZ-J00

$0.28

DUST SEAL, BRAKE CAM

45134-250-000

Unavailable

BOLT, FLANGE (6X40)

90102-GGZ-J00

$0.55

NUT, AXLE (14MM)

90305-197-013

$5.71

WASHER (26X14X2.8)

90501-GAH-000

$6.18

JOINT A, BRAKE ARM

95015-31001

$1.46

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.28
