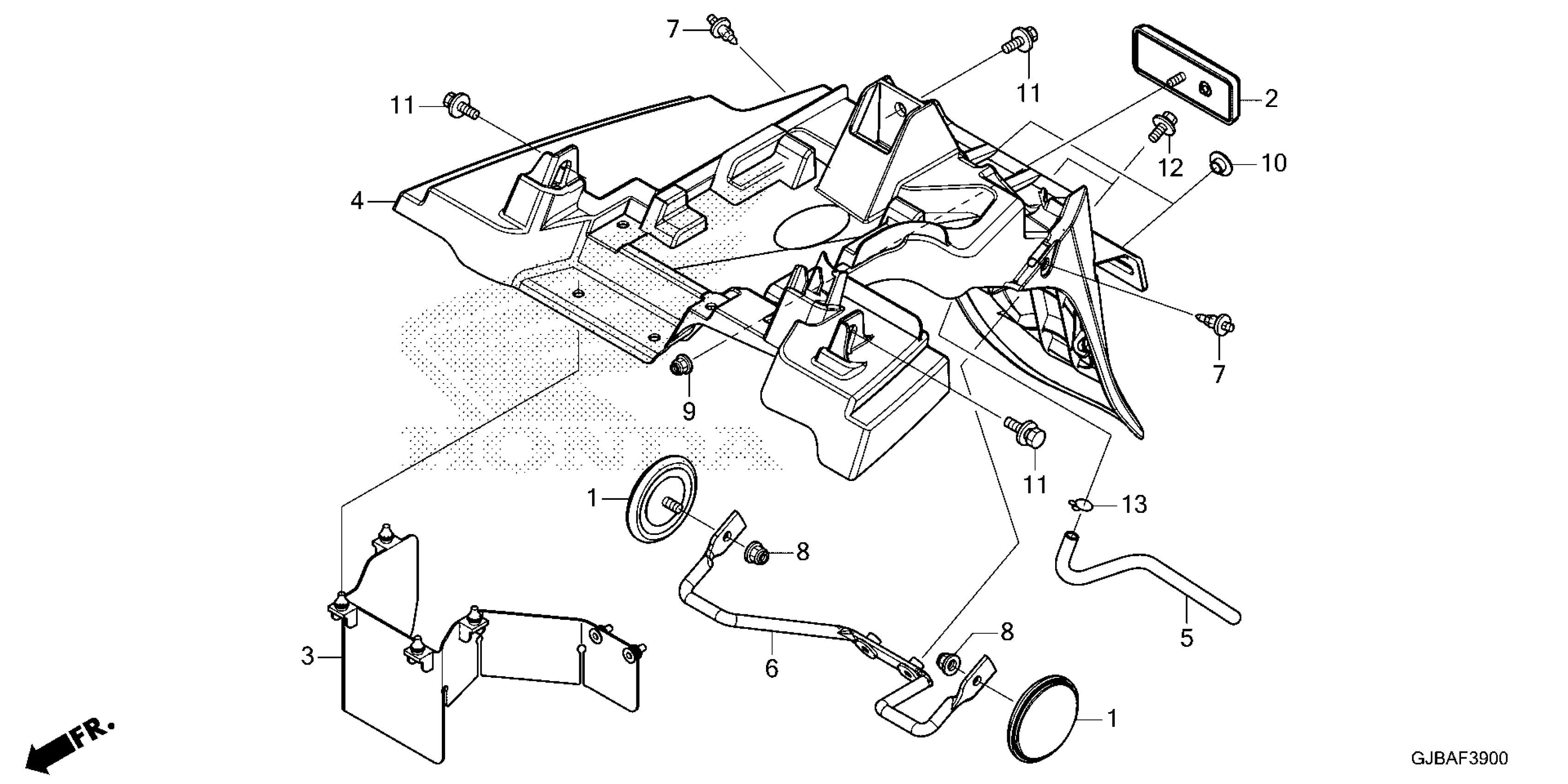

Honda NCW50AC (26) MOTORCYCLE, JPN, VIN# JH2AF771-TK900001 REAR FENDER Diagram

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$11.90

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.60

PLATE, RR. FENDER SPLASH GUARD

80104-GGZ-J00

$2.28

FENDER, RR. *NH1* (BLACK)

80105-GJB-A00ZA

$13.91

TUBE, RR. FENDER DRAIN

80206-GGZ-J00

$1.39

STAY, SIDE REFLECTOR

84701-GJB-A00

$17.12

CLIP, BUMPER SEAL

90116-K2P-V61

$1.46

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$3.79

NUT, FLANGE (5MM) (FUSE RASHI)

90301-MG8-000

$4.25

WASHER, CHAIN CASE SETTING

90522-028-000

$2.62

BOLT-WASHER (6X12)

93404-06012-00

$1.48

BOLT-WASHER (6X12)

93404-06012-07

$1.48

CLIP, TUBE (B8) CLIP, TUBE (B7)

95002-02080

$1.59
