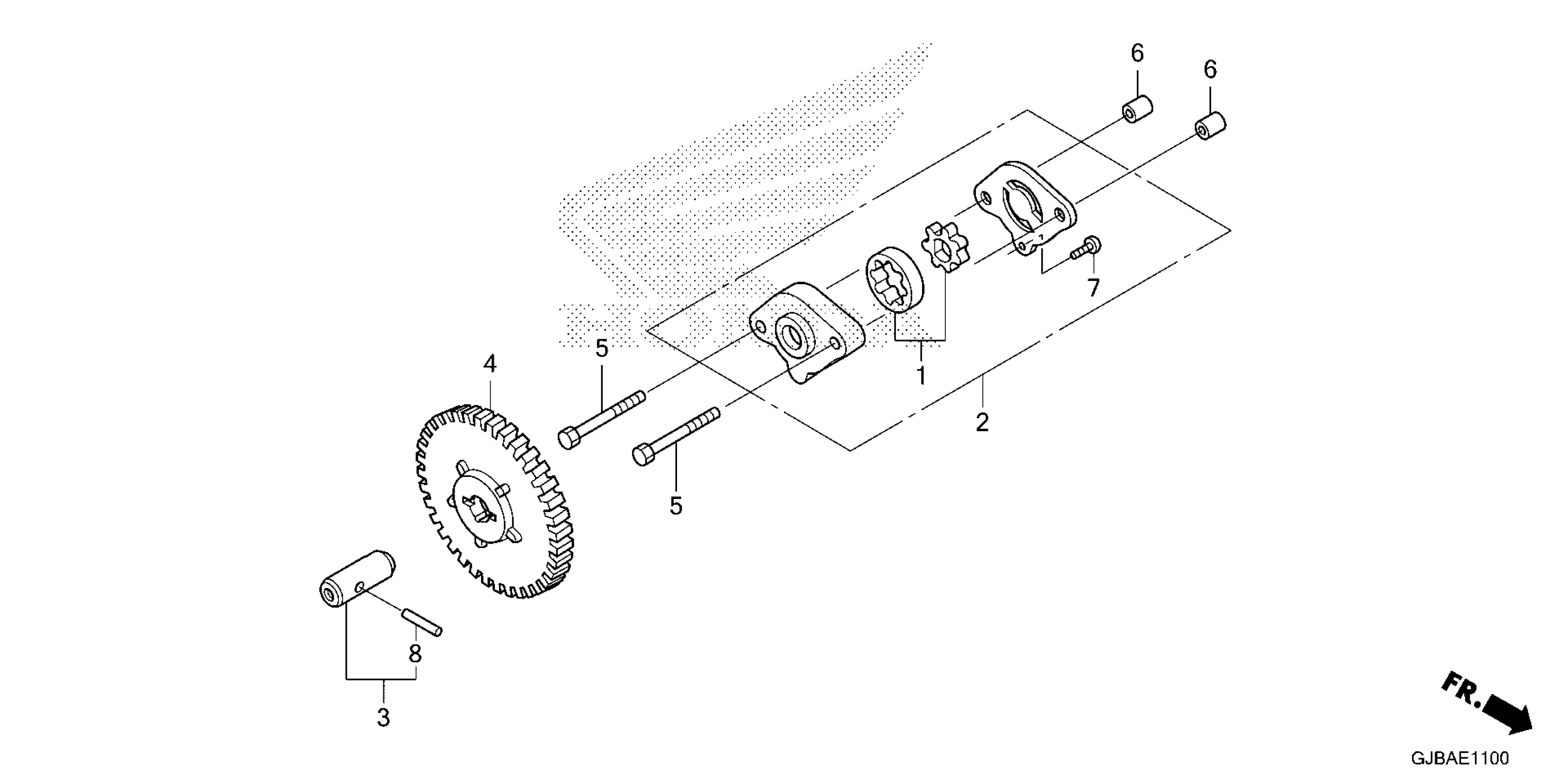

Honda NCW50AC (26) MOTORCYCLE, JPN, VIN# JH2AF771-TK900001 OIL PUMP Diagram

#

Description

Price

1

ROTOR SET, OIL PUMP

15021-107-000

$20.01

2

PUMP ASSY., OIL

15100-GGZ-J00

$5.01

3

SHAFT, OIL PUMP

15130-GGZ-J00

$4.39

4

GEAR, OIL PUMP DRIVEN (37T)

15133-GGZ-J00

$7.52

5

BOLT, HEX. (6X30)

90002-GFC-900

$0.57

6

PIN, DOWEL SPECIAL (8X14)

90701-KFM-900

$0.80

7

SCREW, TAPPING (4X8)

93901-34120

$0.83

8

ROLLER (3X16.8)

96220-30168

$0.29
