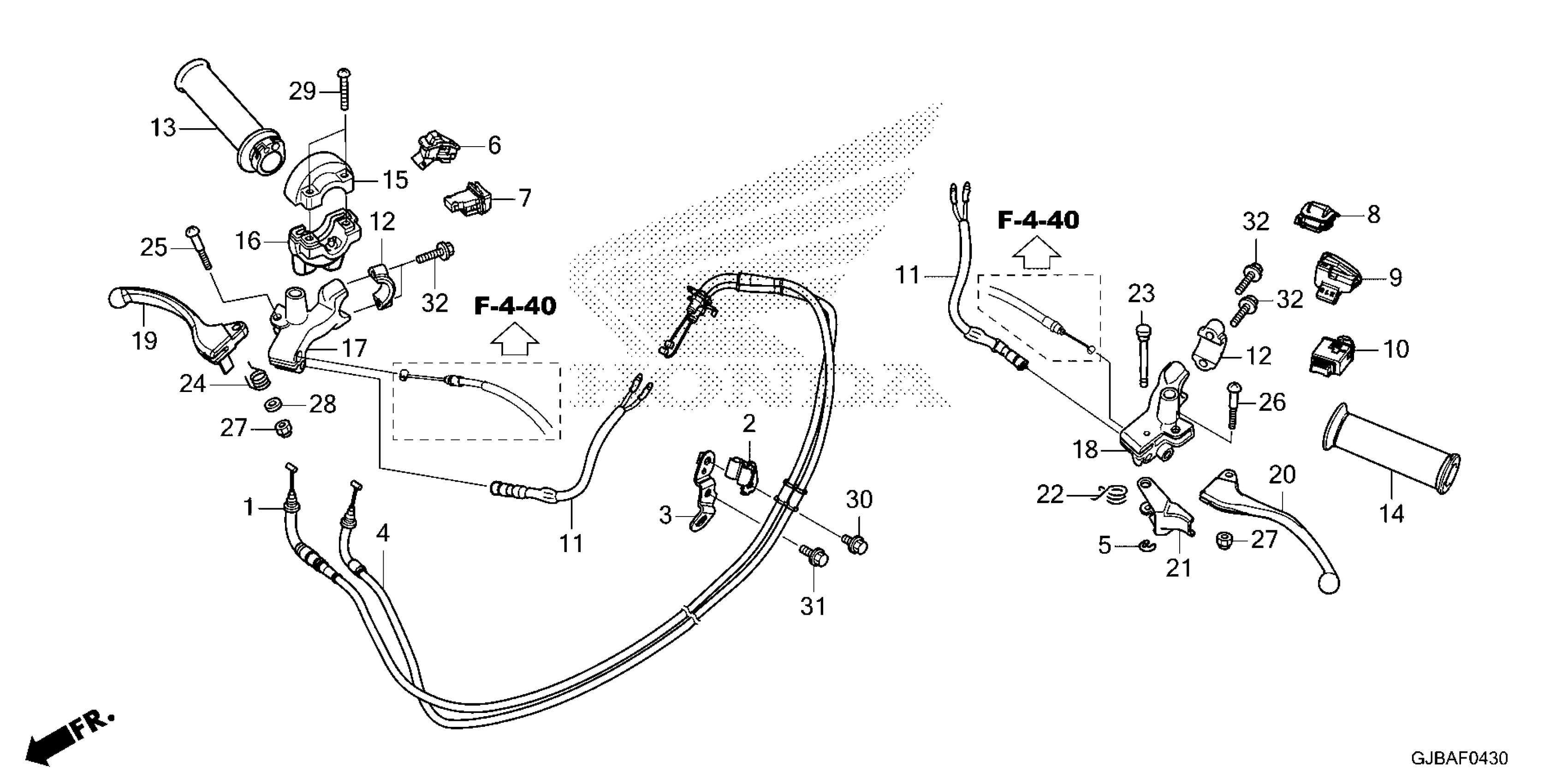

Honda NCW50AC (26) MOTORCYCLE, JPN, VIN# JH2AF771-TK900001 HANDLE LEVER@SWITCH Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-GJA-J01

$10.79

2

CLAMP, THROTTLE CABLE

17915-GGZ-J00

$1.49

3

STAY, CABLE CLAMP

17916-GGZ-J00

$1.49

4

CABLE B, THROTTLE

17920-GJA-J01

$9.38

5

E-RING (3MM)

30158-GW3-980

$1.49

6

SWITCH UNIT, ENGINE STOP

35130-KWN-671

$13.97

7

SWITCH UNIT, STARTER

35160-K20-T21

$5.90

8

SWITCH UNIT, DIMMER

35170-KYZ-901

$28.23

9

SWITCH UNIT, HORN

35180-K20-T21

$5.95

10

SWITCH UNIT, TURN SIGNAL (TOYO)

35200-K03-N31

$4.33

11

SWITCH ASSY., FR. STOP

35340-GJA-J71

$4.13

12

HOLDER, MASTER CYLINDER

45517-GGZ-J01

$1.49

13

GRIP, THROTTLE *NH1*

53140-GJB-J00ZA

$2.39

13

GRIP, THROTTLE *YR337R* (BROWNIE BROWN R)

53140-GJB-J00ZB

$2.74

14

GRIP, L. *NH1*

53166-GJB-J00ZA

$1.69

14

GRIP, L. HANDLE *YR337R* (BROWNIE BROWN R)

53166-GJB-J00ZB

$1.89

15

HOUSING, THROTTLE (UPPER)

53167-K66-V00

$5.64

16

HOUSING, THROTTLE (LOWER)

53168-K66-V00

$10.05

17

BRKT, R HNDL LEVER

53171-GGZ-J01

$6.34

18

BRKT, L HNDL LEVER

53172-GJA-J03

$34.43

19

LEVER, R. HANDLEBAR

53175-GGZ-J00

$5.04

20

LEVER, L. HANDLEBAR

53178-GGZ-J00

$5.14

21

LEVER, BRAKE LOCK

53181-GJA-J00

$6.48

22

SPRING, LEVER RETURN

53182-KVB-900

$1.49

23

PIN, PARKING LEVER PIVOT

53183-KVB-900

$1.79

24

SPRING, BRAKE LEVER RETURN

53199-K16-940

$1.49

25

SCREW, HANDLE LEVER PIVOT

90115-GBL-870

$1.49

26

SCREW, HANDLE LEVER PIVOT

90115-KWN-900

$1.49

27

NUT, HEX. (5MM)

90302-435-761

$2.23

28

WASHER (NOT AVAILABLE)

90441-147-000

$1.49

29

SCREW, PAN (5X20)

93500-05020-0A

$1.49

30

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

31

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

32

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
