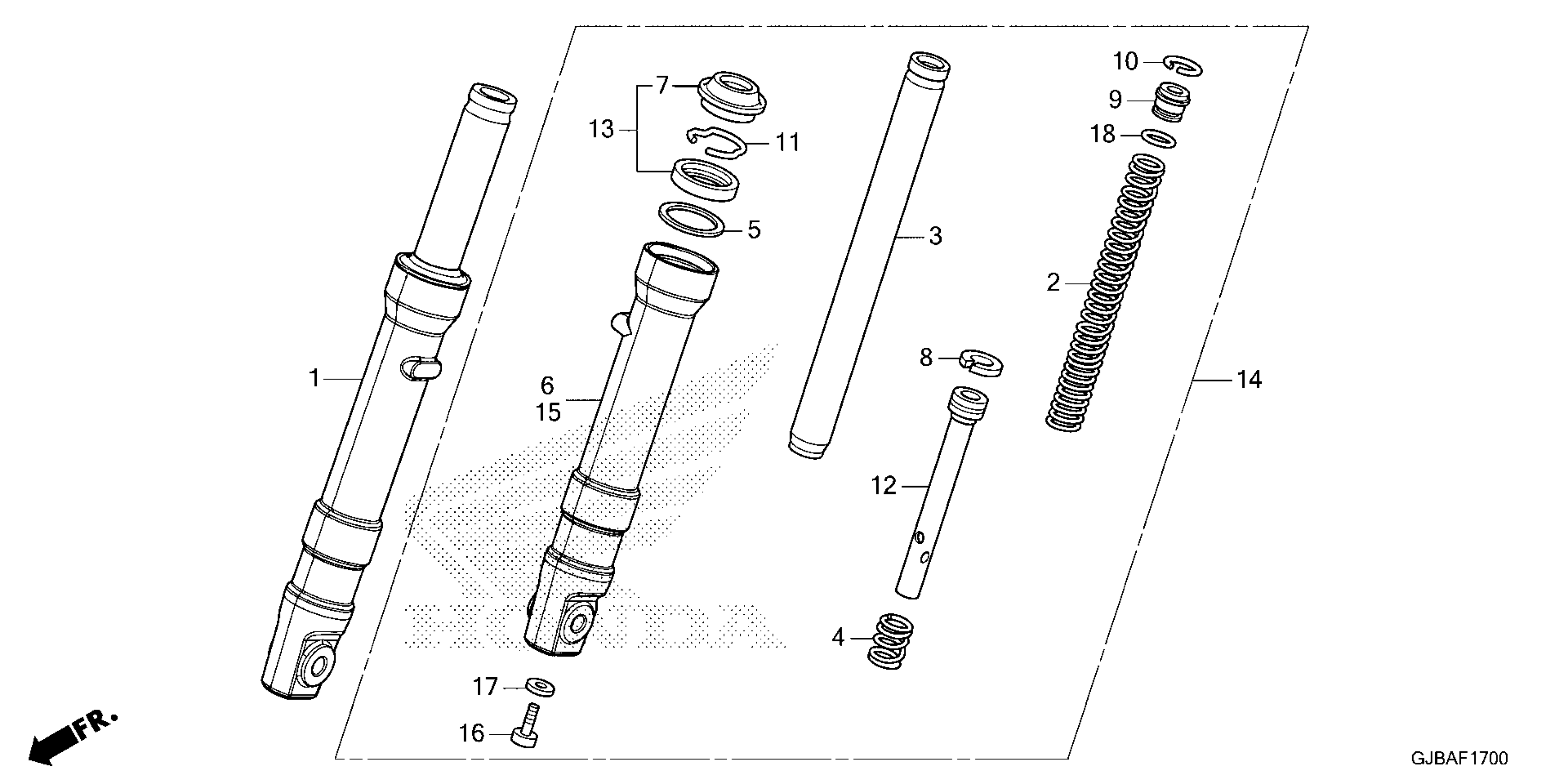

Honda NCW50AC (26) MOTORCYCLE, JPN, VIN# JH2AF771-TK900001 FRONT FORK Diagram

FORK ASSY., R. FR. (SHOWA)

51400-GGZ-J01

$51.64

SPRING, FR. FORK

51401-GGZ-J01

$3.00

PIPE, FR. FORK

51410-GGZ-J01

$20.72

SPRING, REBOUND (SHOWA)

51412-GN5-901

$4.92

RING, BACK-UP

51412-KWB-601

$1.49

CASE, R. FR. (LOWER)

51420-GGZ-J01

$24.62

DUST SEAL (SHOWA)

51425-GN5-901

$15.82

RING, PISTON

51437-GGZ-J01

$1.49

SEAT B, SPRING

51454-KEV-881

$4.57

RING, STOPPER

51456-KPH-901

$1.49

RING, OIL SEAL STOPPER (SHOWA)

51466-065-901

$4.43

PIPE, SEAT

51470-GGZ-J01

$2.70

SEAL SET, FR. FORK (SHOWA)

51490-KGH-901

$5.44

FORK ASSY., L. FR. (SHOWA)

51500-GJA-J01

$52.87

CASE, L. FR. (LOWER)

51520-GJA-J01

$25.15

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

O-RING (16MM) This part replaces 91356-GM0-003.

91303-800-000

$2.23
