Description

Price

1

CLUTCH OUTER

22100-GGZ-J00

$14.30

2

PLATE, DRIVE

22350-GAH-A00

$34.87

2

PLATE, DRIVE

22350-GGZ-J00

$6.92

3

SPRING, CLUTCH

22401-GG2-900

$3.85

4

WEIGHT SET, CLUTCH

22535-GAK-305

$71.98

5

RUBBER, CLUTCH DAMPER

22804-148-000

$2.97

6

BELT, DRIVE

23100-GGZ-J01

$17.00

7

FACE SET, DRIVEN

23205-GGZ-J00

$40.48

8

FACE, MOVABLE DRIVEN

23220-GGZ-J00

$22.85

9

PIN, GUIDE

23225-GR1-750

$4.02

10

SPRING, DRIVEN FACE

23233-GGZ-J01

$5.74

11

COLLAR, SEAL

23237-GGZ-J01

$2.82

12

COLLAR, SPRING

23238-GGZ-J01

$2.33

13

NUT, SPECIAL (28MM)

90202-GGZ-J00

$1.49

14

WASHER, THRUST (6MM)

90442-044-000

$2.21

15

CIRCLIP (6MM)

90454-GB2-000

$1.79

16

BEARING, RADIAL BALL (6901U)

91006-GGL-J01

$9.56

17

BEARING, NEEDLE (17X25X18)

91103-GGL-J01

$13.82

18

OIL SEAL (34X39X3) (ARAI)

91211-GFC-771

$7.67

19

O-RING (36X1.5) (ARAI)

91301-KA5-741

$7.69

20

O-RING (39.8X2.2)

91302-GGL-J01

$2.34

21

NUT, FLANGE (10MM)

94050-10000

$1.59

22

CIRCLIP (INNER) (24MM)

94520-24000

$1.49

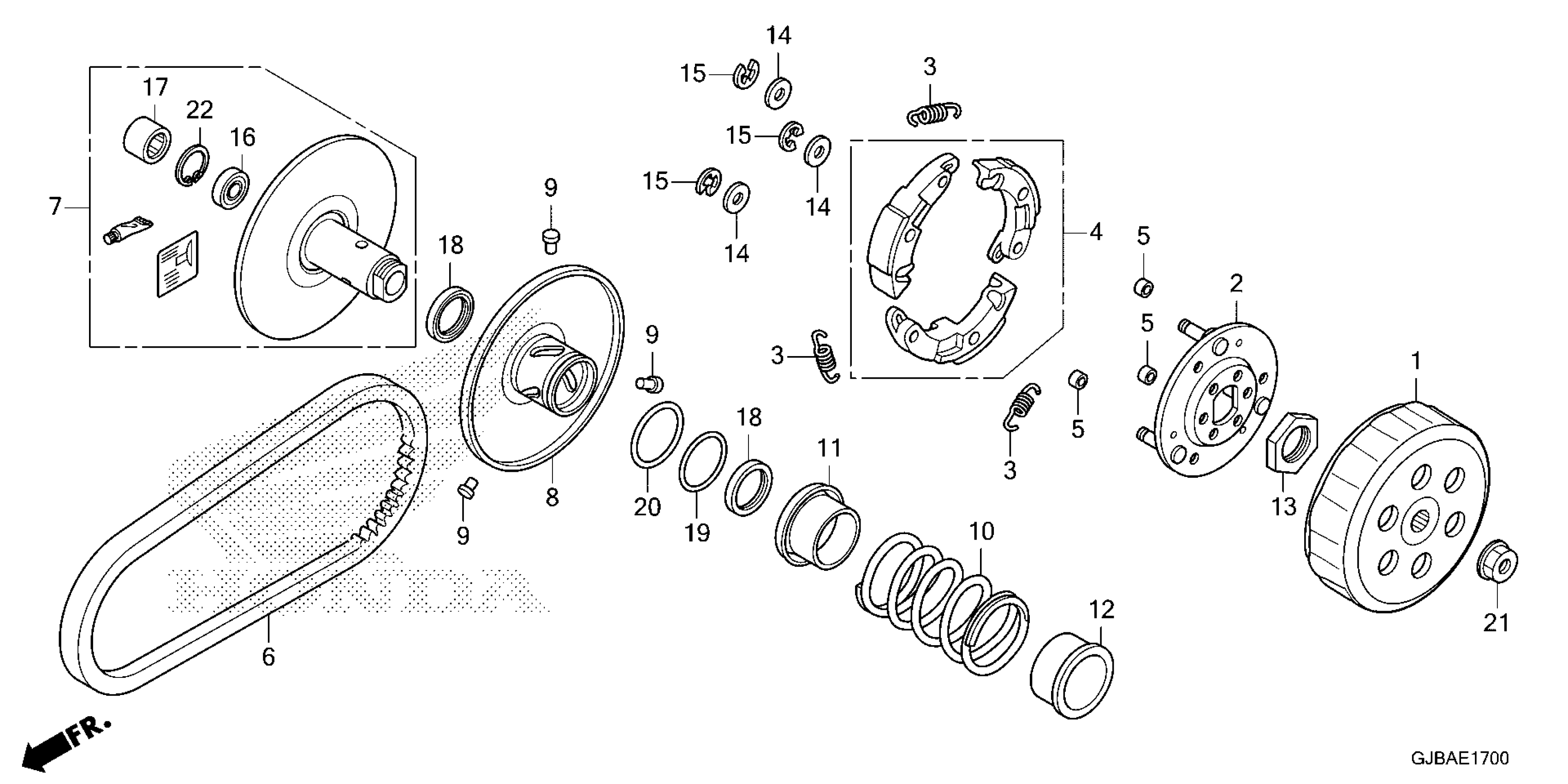

Honda NCW50AC (26) MOTORCYCLE, JPN, VIN# JH2AF771-TK900001 DRIVEN FACE Diagram

CLUTCH OUTER

PLATE, DRIVE

PLATE, DRIVE

SPRING, CLUTCH

WEIGHT SET, CLUTCH

RUBBER, CLUTCH DAMPER

BELT, DRIVE

FACE SET, DRIVEN

FACE, MOVABLE DRIVEN

PIN, GUIDE

SPRING, DRIVEN FACE

COLLAR, SEAL

COLLAR, SPRING

NUT, SPECIAL (28MM)

WASHER, THRUST (6MM)

CIRCLIP (6MM)

BEARING, RADIAL BALL (6901U)

BEARING, NEEDLE (17X25X18)

OIL SEAL (34X39X3) (ARAI)

O-RING (36X1.5) (ARAI)

O-RING (39.8X2.2)

NUT, FLANGE (10MM)

CIRCLIP (INNER) (24MM)
