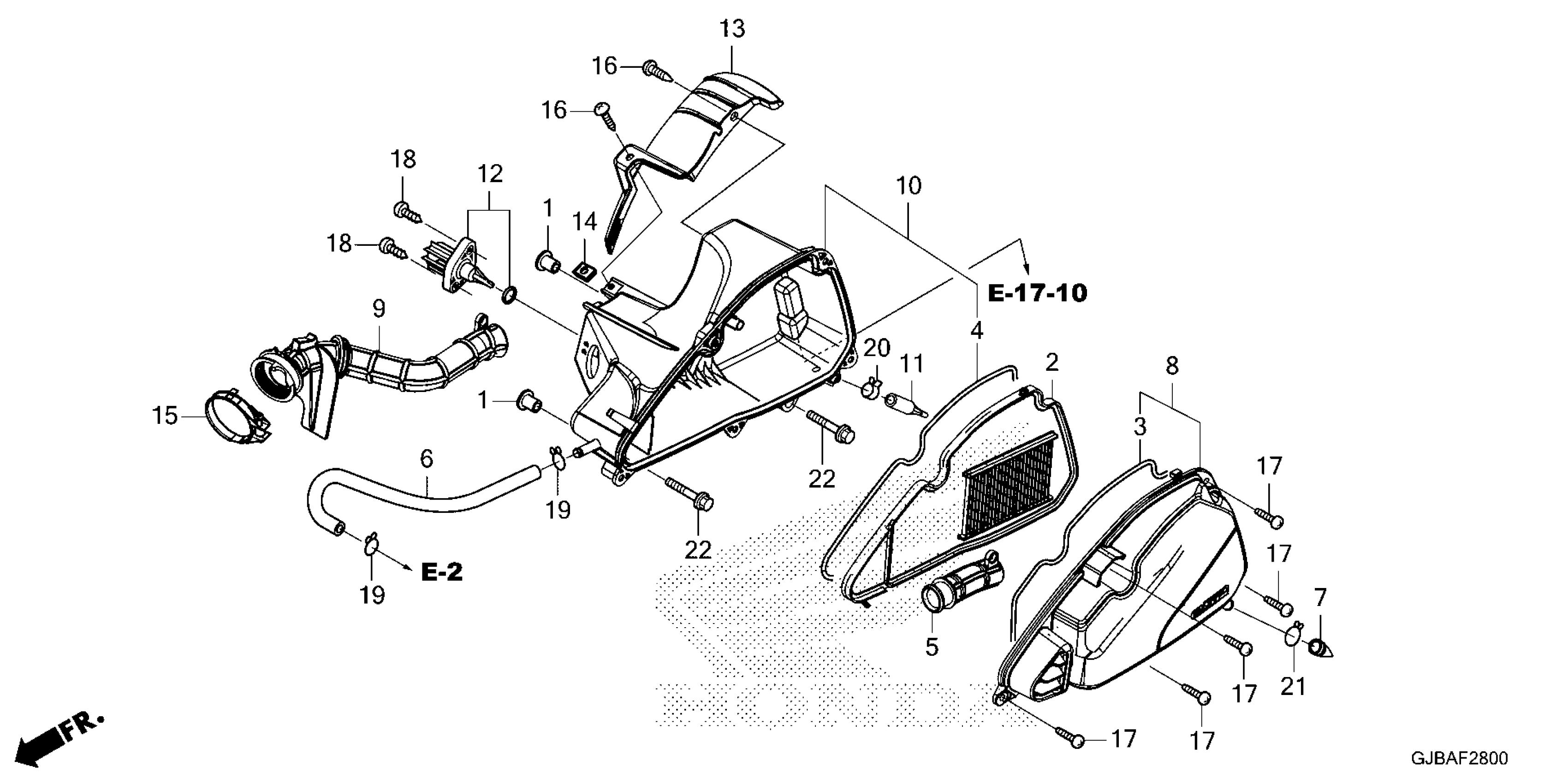

Honda NCW50AC (26) MOTORCYCLE, JPN, VIN# JH2AF771-TK900001 AIR CLEANER Diagram

#

Description
Price

1

COLLAR, AIR CLEANER SETTING

17208-GR1-010

$2.78

2

ELEMENT, AIR CLEANER

17210-GGZ-J00

$7.79

3

SEAL, AIR CLEANER COVER

17212-GGZ-J00

$1.10

4

SEAL, AIR CLEANER HOUSING

17213-GGZ-J00

$1.17

5

DUCT, AIR CLEANER

17215-GGZ-J00

$2.00

6

TUBE, BREATHER

17218-GGZ-J00

$4.75

7

TUBE, AIR CLEANER DRAIN

17234-KCW-871

$2.35

8

COVER SUB-ASSY., AIR CLEANER

17245-GGZ-J00

$6.45

9

TUBE, AIR CLEANER CONNECTING

17253-GGZ-J00

$7.65

10

CASE SUB-ASSY., AIR CLEANER

17255-GGZ-J00

$7.80

11

TUBE, DRAIN

17261-KVB-T00

$1.29

12

SENSOR ASSY., AIR TEMPERATURE

37880-KWW-C01

$40.03

13

FENDER, RR. (INNER)

80106-GGZ-J00

$1.61

14

NUT, SPRING (5MM) This part replaces 90301-GAZ-930.

90301-KE1-003

$2.80

14

NUT, SPRING (5MM)

90301-KE1-003

$2.80

15

BAND, AIR CLEANER CONNECTING TUBE (42)

90652-GGZ-J00

$1.29

16

SCREW, TAPPING (5X16)

93903-25380

$0.83

17

SCREW, TAPPING (5X20)

93903-25480

$0.61

18

SCREW, TAPPING (5X20)

93913-255J0

$1.57

19

CLIP, TUBE (B12.5)

95002-02130

$1.04

20

CLAMP, TUBE (D12)

95002-41200-08

$2.30

21

CLIP, TUBE (C12)

95002-80000

$0.42

22

BOLT, FLANGE (6X30)

95701-06030-00

$1.71
