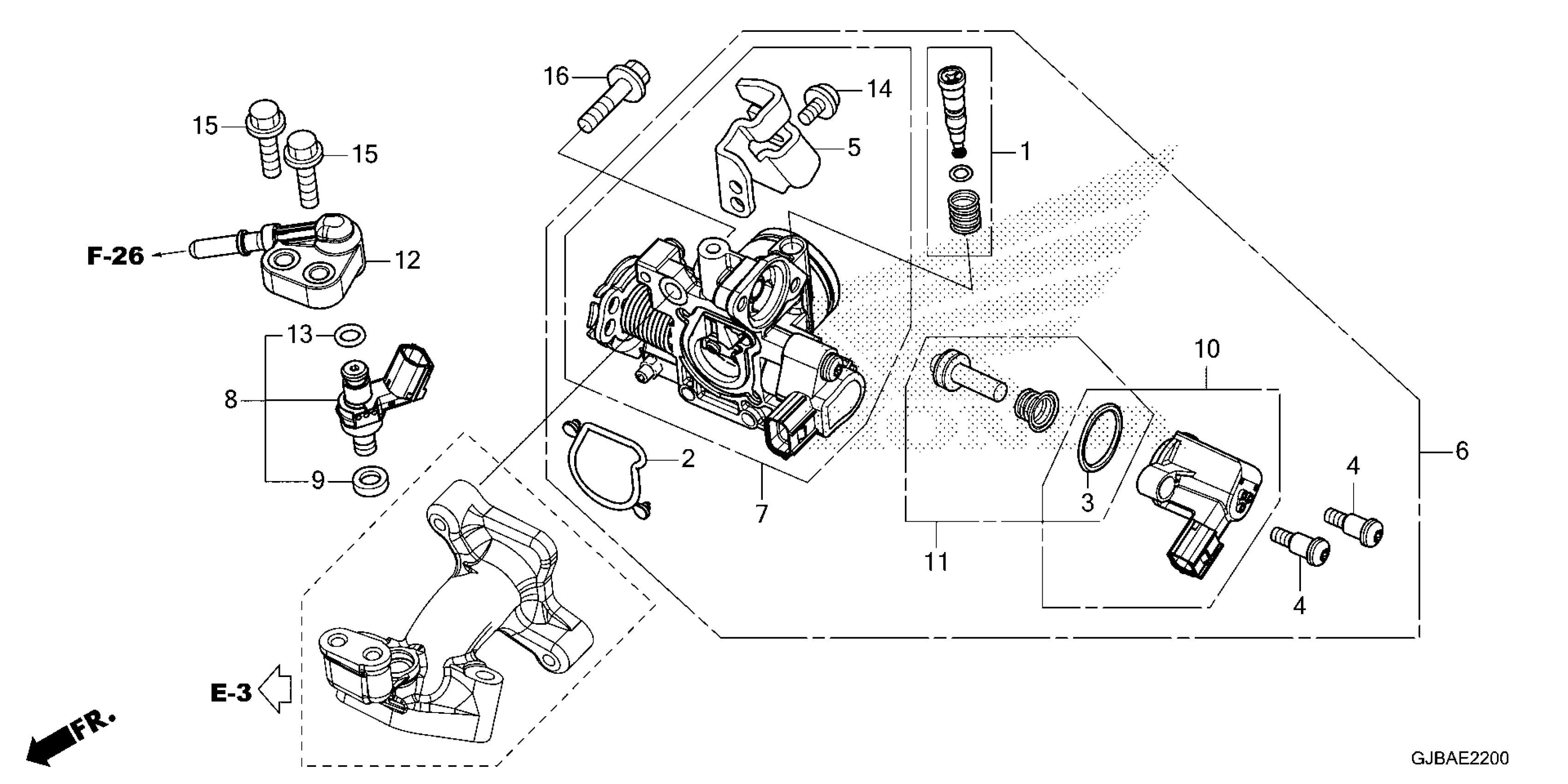

Honda NCW50AC (25) MOTORCYCLE, JPN, VIN# JH2AF771-SK800001 THROTTLE BODY Diagram

SCREW SET

16016-K03-H11

$1.75

O-RING, THROTTLE BODY

16075-K25-901

$1.25

O-RING (1.9X20.4)

16077-KVB-S51

$1.25

SCREW, TORX (5X8.7)

16081-KYJ-901

$2.49

STAY, WIRE

16169-GGZ-J01

$7.12

BODY ASSY., THROTTLE (WHA A)

16400-GGZ-J41

$256.41

BODY SET

16410-GGZ-J41

$255.86

INJECTOR ASSY., FUEL

16450-GGZ-J01

$30.81

RING, SEAL (Honda Code 8954000)

16472-KPC-D50

$2.04

SOLENOID

16480-KVB-S51

$40.77

SEAT SET

16485-GGZ-J01

$3.79

JOINT, INJECTOR

17560-GGZ-J00

$38.11

O-RING (6.3X2.2)

91301-GGL-J01

$9.39

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.04

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.04

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

BOLT, FLANGE (6X25)

96001-06025-00

$1.91
