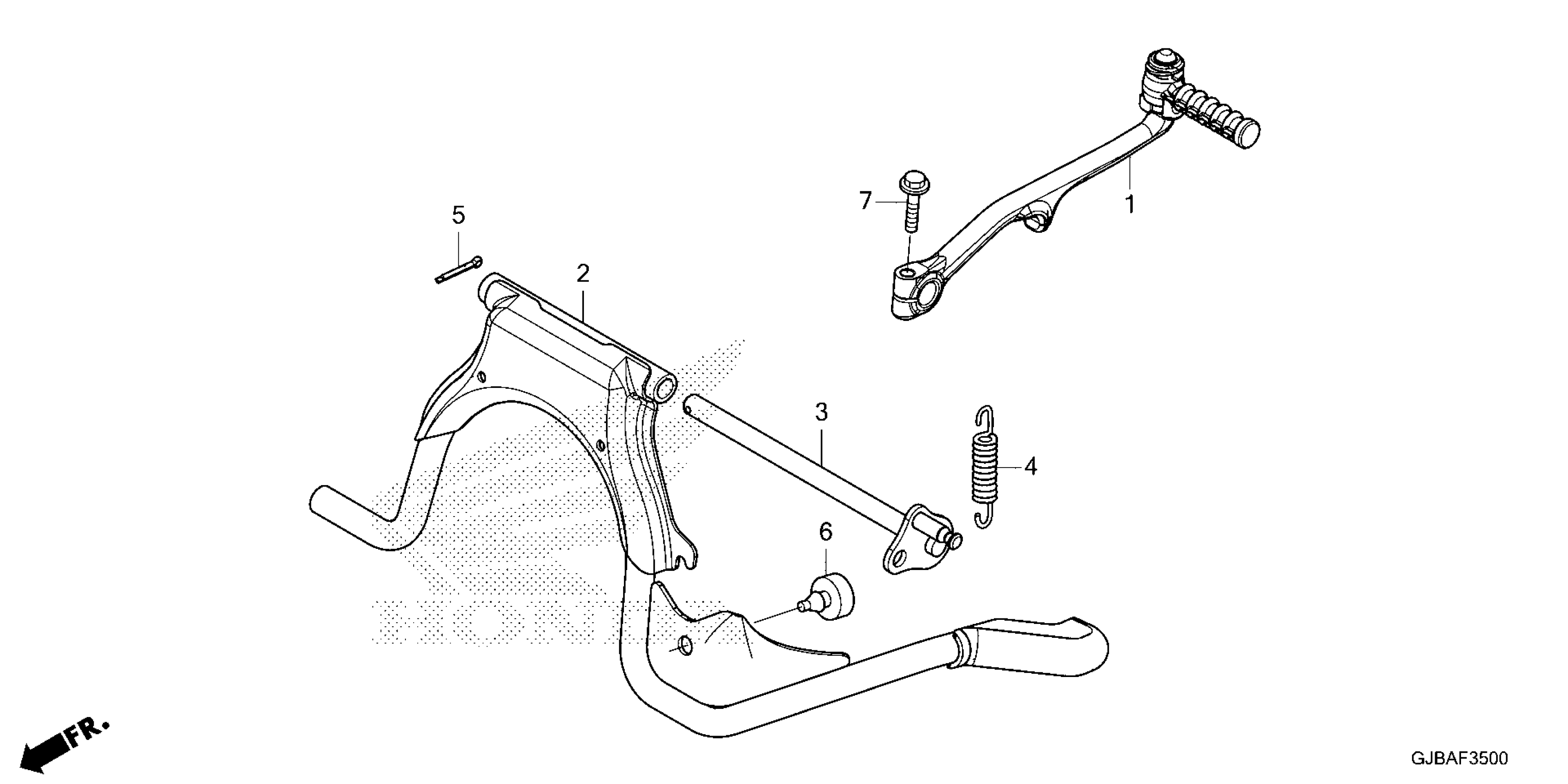

Honda NCW50AC (25) MOTORCYCLE, JPN, VIN# JH2AF771-SK800001 STAND@KICK PEDAL Diagram

#

Description

Price

1

ARM ASSY., KICK STARTER

28300-GGZ-J00

$10.07

2

STAND, MAIN

50500-GGZ-J40

$44.30

3

SHAFT, MAIN STAND

50503-GGZ-J00

$2.39

4

SPRING, MAIN STAND

50520-GW2-000

$3.77

5

PIN, COTTER (3.0X45) This part replaces 94201-30200.

94201-30450

$0.94

5

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.94

5

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$0.94

5

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.94

5

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.94

5

PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)

94201-30450

$0.94

6

RUBBER B, STAND STOPPER

95011-62000

$1.22

7

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
