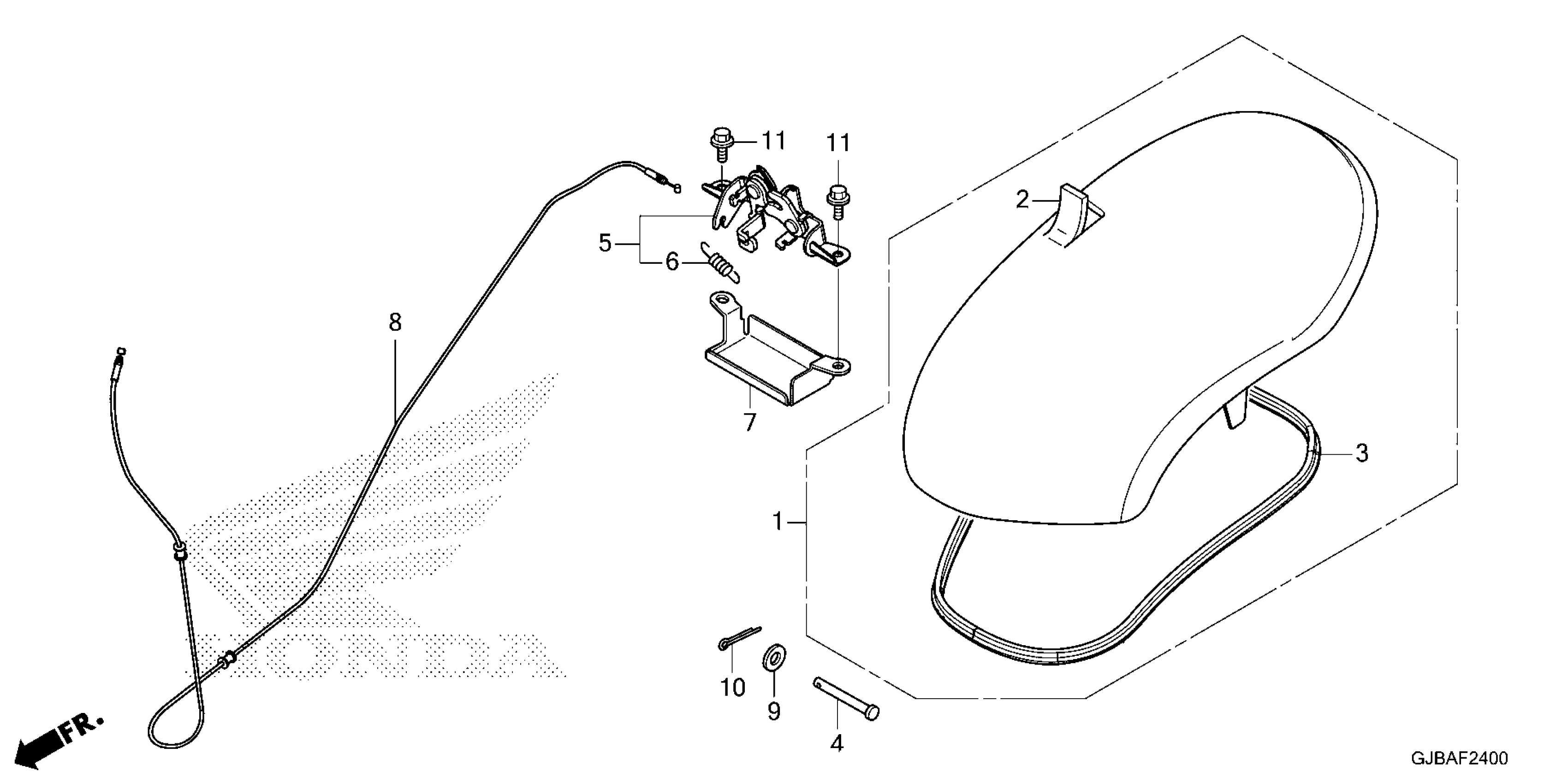

Honda NCW50AC (25) MOTORCYCLE, JPN, VIN# JH2AF771-SK800001 SEAT Diagram

#

Description
Price

1

SEAT, SINGLE (TYPE2)

77100-GJB-J01ZA

$105.50

1

SEAT, SINGLE (TYPE1)

77100-GJB-J01ZB

$115.41

2

LEATHER, SEAT (TYPE2) (NO LETTERS PRINTED)

77101-GJB-J01ZA

$37.69

2

LEATHER, SEAT (TYPE1) (NO LETTERS PRINTED)

77101-GJB-J01ZB

$39.38

3

RUBBER, SEAL

77115-GJB-J00

$17.78

4

PIN, SEAT HINGE

77215-KZL-930

$8.18

5

CATCH, SEAT

77230-GGZ-J00

$3.50

6

SPRING, SEAT LOCK

77234-GGZ-J00

$0.28

7

GUARD, SEAT CATCH

77238-GJA-J00

$1.60

8

CABLE, SEAT LOCK (YAMATO) | Use up to Frame SN SK801100.

77240-GJA-J01

$6.99

8

CABLE, SEAT LOCK | Use from Frame SN SK801101.

77240-GJA-J02

$15.97

9

WASHER, PLAIN (8MM)

94101-08000

$0.76

10

PIN, COTTER (1.6X25) This part replaces 94201-15150.

94201-16250

$0.96

10

PIN, COTTER (1.6X25) This part replaces 94201-15200.

94201-16250

$0.96

10

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$0.96

10

PIN, COTTER (1.6X25) This part replaces 94201-16180.

94201-16250

$0.96

10

PIN, COTTER (1.6X25) This part replaces 94201-16200.

94201-16250

$0.96

10

PIN, COTTER (1.6X25)

94201-16250

$0.96

11

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.84
