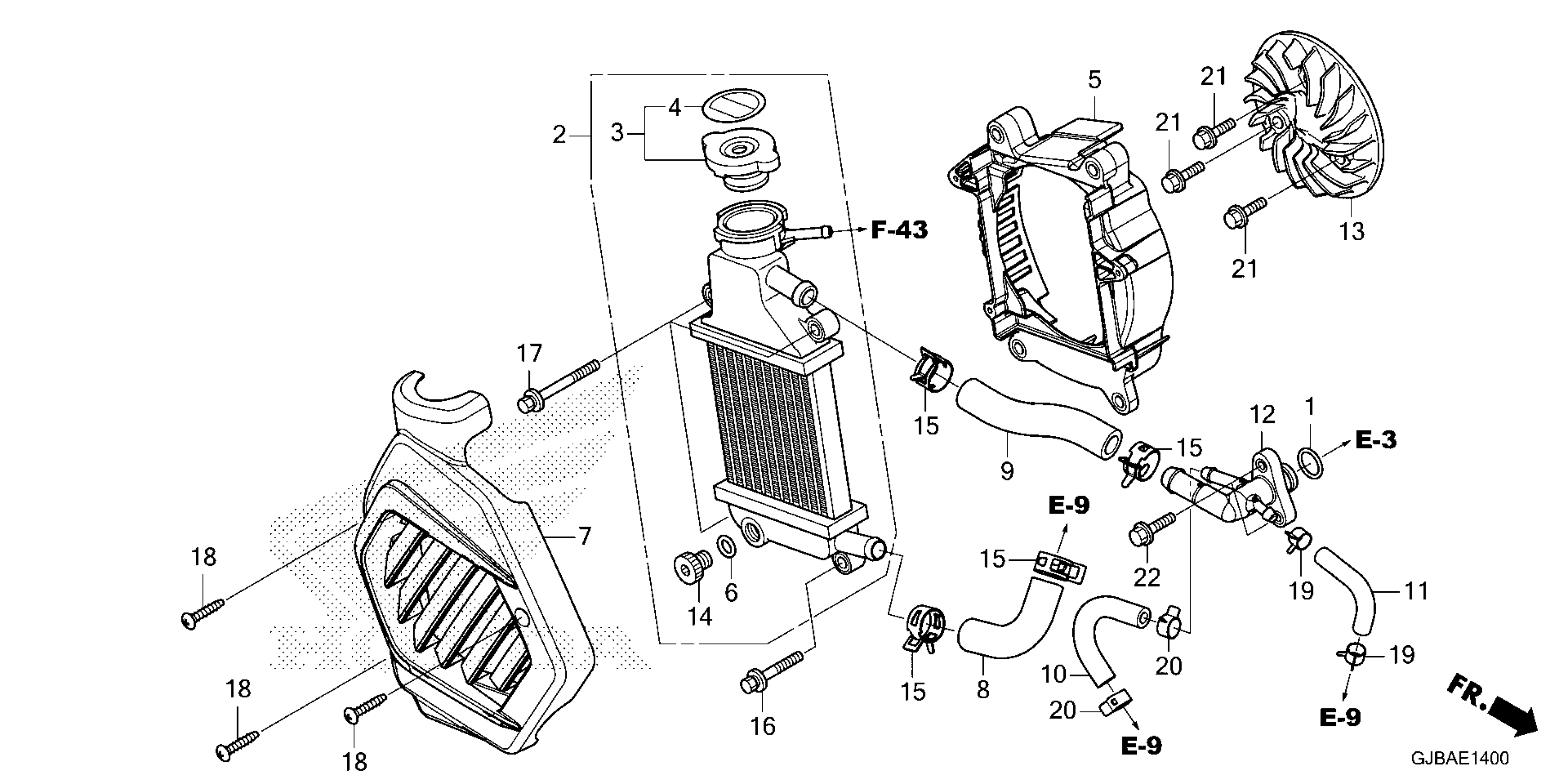

Honda NCW50AC (25) MOTORCYCLE, JPN, VIN# JH2AF771-SK800001 RADIATOR Diagram

#

Description
Price

1

O-RING (15.4X2)

12207-KWN-900

$1.49

2

RADIATOR

19010-GGZ-J01

$49.44

3

CAP, RADIATOR

19037-GEE-710

$30.28

4

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

5

BASE, RADIATOR

19105-GGZ-J00

$16.92

6

SEAL, DRAIN

19109-GET-003

$2.26

7

COVER, RADIATOR

19151-GGZ-J00

$3.74

8

HOSE, RADIATOR

19501-GGZ-J00

$3.51

9

HOSE, CYLINDER HEAD

19503-GGZ-J00

$4.46

10

HOSE, BYPASS

19505-GGZ-J00

$3.48

11

TUBE, AIR BREATHER

19506-GGZ-J00

$1.87

12

JOINT, WATER HOSE

19507-GGZ-J00

$9.39

13

FAN, COOLING

19510-GGZ-J01

$5.08

14

BOLT, DRAIN

90103-GET-003

$4.08

15

CLAMP, WATER HOSE (21MM)

90701-GGZ-J01

$1.49

16

BOLT-WASHER (6X35)

93401-06035-00

$1.49

17

BOLT-WASHER (6X50)

93401-06050-00

$1.49

18

SCREW, TAPPING (4X25)

93913-24680

$1.49

19

CLAMP, TUBE (D10.5)

95002-41050-08

$2.34

20

CLAMP, TUBE (D12.5)

95002-41250-08

$2.34

21

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

22

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
