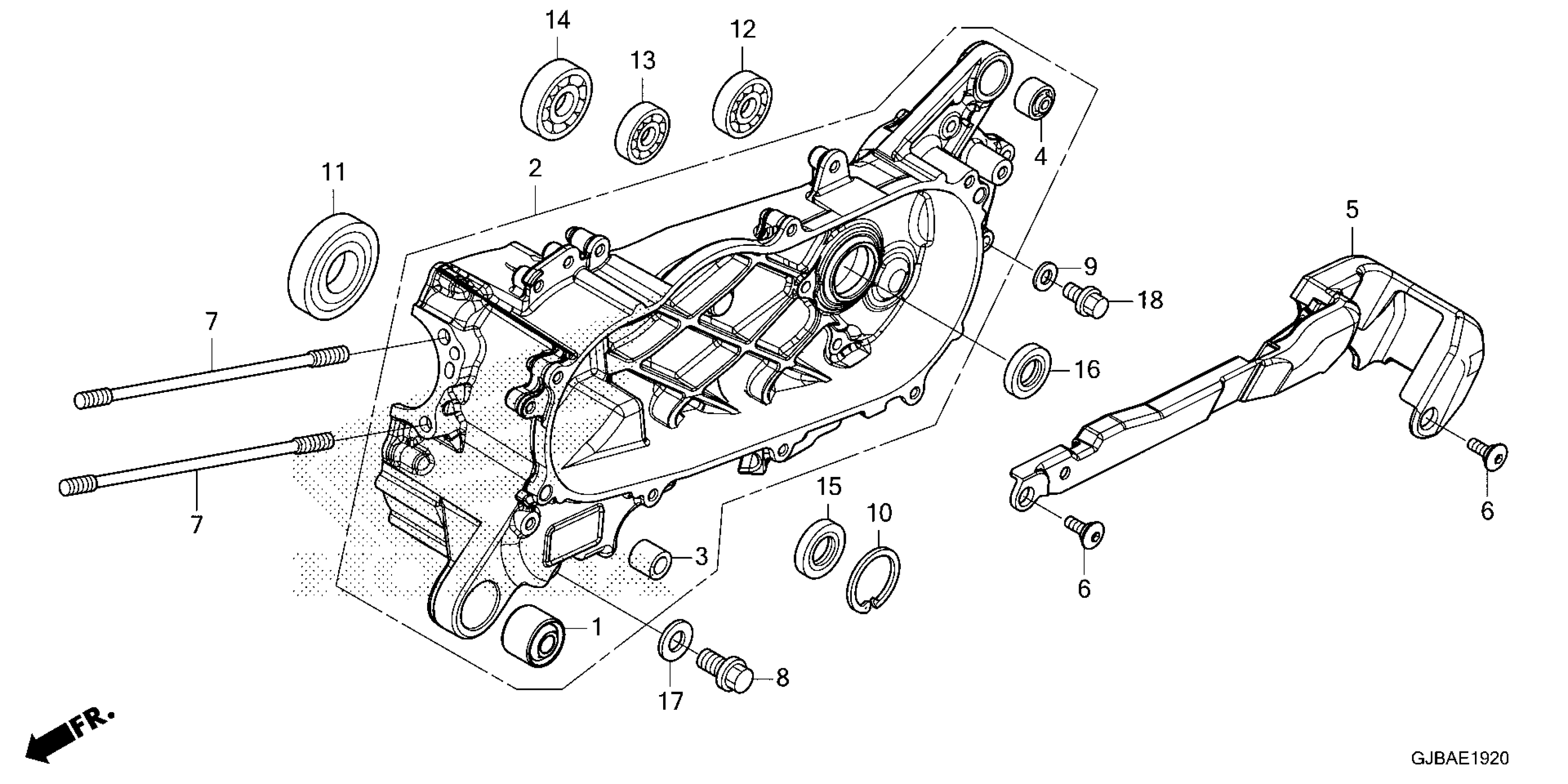

Honda NCW50AC (25) MOTORCYCLE, JPN, VIN# JH2AF771-SK800001 LEFT CRANKCASE Diagram

BUSH, ENGINE HANGER RUBBER

11103-GGZ-J00

$2.51

CRANKCASE, L.

11200-GGZ-J01

$79.33

BUSH, MAIN STAND

11205-GBC-300

$1.49

BUSH, RR. CUSHION RUBBER (LOWER)

11205-GGZ-J00

$3.21

PROTECTOR, SPEED SENSOR

32112-GGZ-J00

$4.03

BOLT, SOCKET (6X18)

90001-KWR-000

$1.49

BOLT A, STUD (7X182.5)

90031-GGZ-J00

$2.95

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$3.98

BOLT, DRAIN PLUG (12X15)

90131-896-650

$3.98

WASHER, SEALING (8MM)

90474-333-000

$3.30

CIRCLIP, SPECIAL (33MM)

90604-MEB-670

$4.40

BEARING, RADIAL BALL SPECIAL (6205U) (NTN)

91002-GGZ-J02

$14.69

BEARING, RADIAL BALL (6202) This part replaces 91006-GFC-901.

96100-62020-00

$9.18

BEARING, RADIAL BALL (6202)

96100-62020-00

$9.18

BEARING, RADIAL BALL (6201) (NTN)

91006-KZR-601

$7.56

BEARING, RADIAL BALL (6203) This part replaces 91007-GFC-901.

96100-62033-00

$10.00

BEARING, RADIAL BALL (6203)

96100-62033-00

$10.00

OIL SEAL (19X32X6)

91202-GEE-003

$4.49

OIL SEAL (17X30X5) (ARAI)

91204-GGZ-J01

$1.89

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

BOLT, FLANGE (8X12)

95701-08012-00

$1.49
