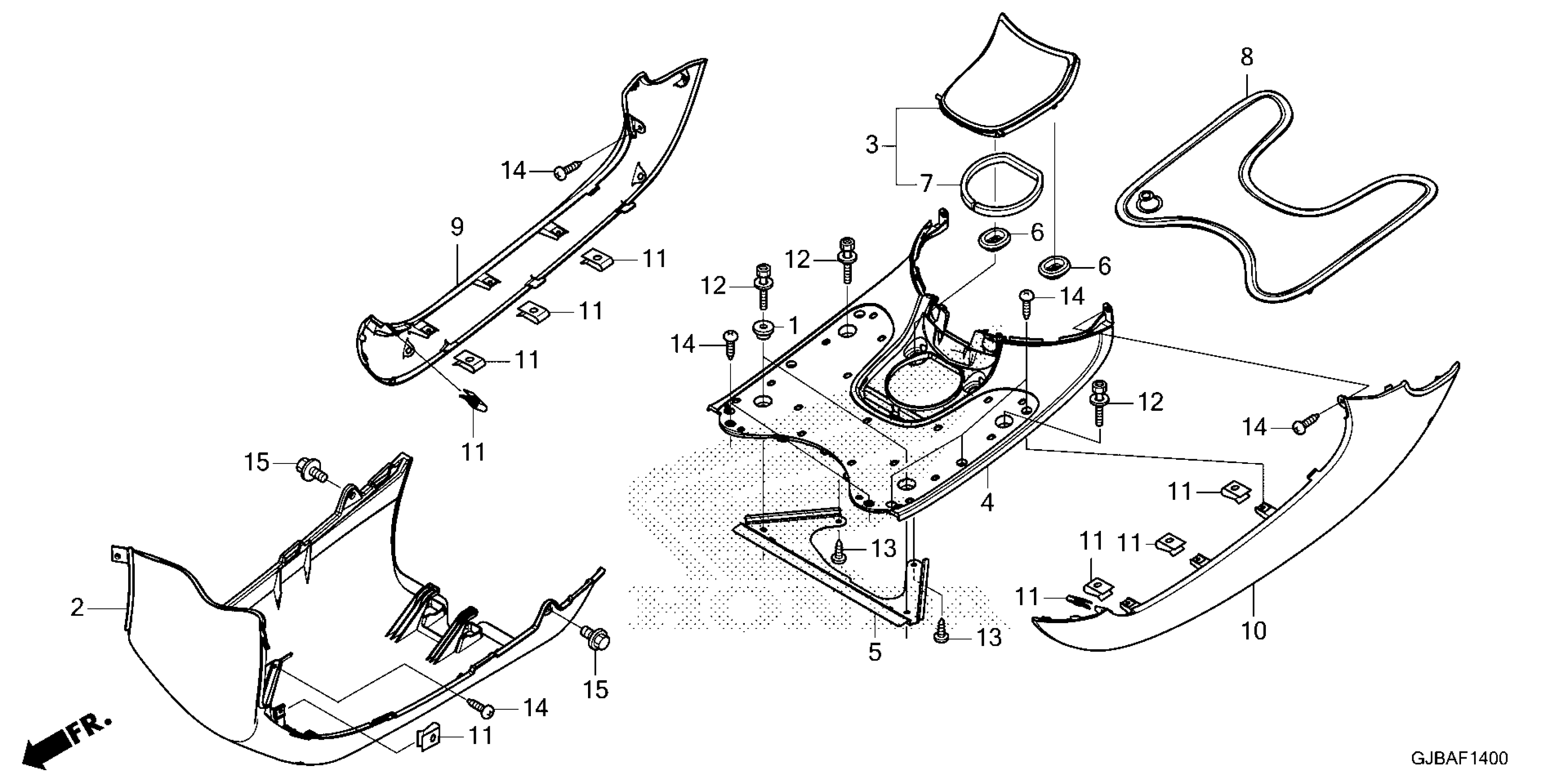

Honda NCW50AC (25) MOTORCYCLE, JPN, VIN# JH2AF771-SK800001 FLOOR STEP Diagram

#

Description
Price

1

COLLAR, MUFFLER PROTECTOR

18316-K01-900

$7.56

2

COVER (LOWER) *NH1* (BLACK)

50611-GJB-J00ZA

$17.84

3

LID ASSY., FUEL *NH1* (BLACK)

64306-GJB-J00ZB

$16.35

3

LID, FUEL *NH388R*

64306-GJB-J00ZD

$17.07

4

STEP, FLOOR *NH1* (BLACK)

64310-GJB-J00ZB

$44.00

4

STEP, FLOOR *NH388R*

64310-GJB-J00ZD

$45.93

5

PLATE, FUEL PUMP GUARD

64312-GGZ-J00

$4.26

6

GROMMET, FUEL LID

64313-GGZ-J00

$0.32

7

SEAL, FUEL LID

64321-GJB-J00

$7.31

8

FLOOR MAT *YR337R* (BROWNIE BROWN R)

64325-GJB-J00ZA

$7.92

8

FLOOR MAT *NHB71R* (BALENA GRAY R)

64325-GJB-J00ZB

$7.04

9

COVER, R. SIDE *PB394M* (URBANE DENIM BLUE METALLIC)

83520-GJB-J00ZC

$72.69

9

CVR, R. SIDE *R134*

83520-GJB-J00ZW

$58.53

10

COVER, L. SIDE *PB394M* (URBANE DENIM BLUE METALLIC)

83620-GJB-J00ZC

$72.69

10

CVR, L. SIDE *R134*

83620-GJB-J00ZW

$61.18

11

NUT, SPRING (4MM)

90302-SA4-003

$5.04

12

BOLT-WASHER (6X30)

93404-06030-00

$1.21

13

SCREW, TAPPING (4X12)

93903-34380

$1.96

14

SCREW, TAPPING (4X16)

93903-34480

$0.84

15

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.16
