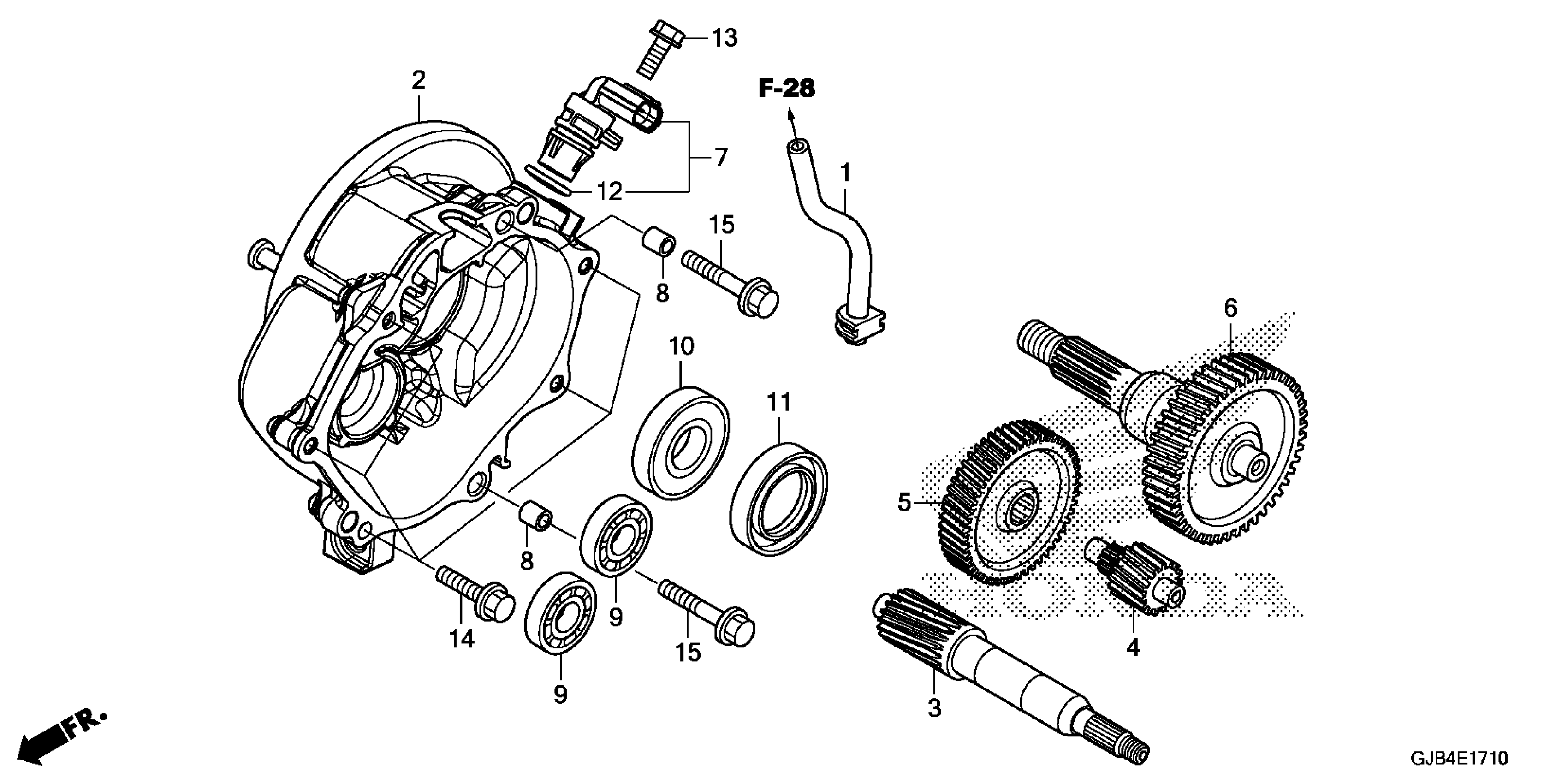

Honda NCW50AC (24) MOTOR SCOOTER, JPN, VIN# JH2AF771-RK700001 TRANSMISSION Diagram

TUBE, TRANSMISSION BREATHER

11220-GGZ-J00

$1.49

CASE, TRANSMISSION

21200-GGZ-J00

$43.08

SHAFT, DRIVE (14T)

23411-GGZ-J00

$19.52

COUNTERSHAFT (12T)

23421-GGZ-J00

$12.67

GEAR, COUNTER (45T)

23422-GGZ-J40

$38.89

GEAR, FINAL (46T)

23430-GGZ-J40

$109.77

SENSOR ASSY., SPEED

37700-K66-V01

$36.02

PIN, DOWEL SPECIAL (8X14)

90701-KFM-900

$1.49

BEARING, RADIAL BALL (6201) (NTN)

91006-KZR-601

$7.56

BEARING, RADIAL BALL (6203UU)

91008-GGZ-J01

$6.96

OIL SEAL (24X40X7)

91205-GGZ-J01

$1.54

O-RING (14.8X2.4)

91303-K27-V01

$1.49

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
