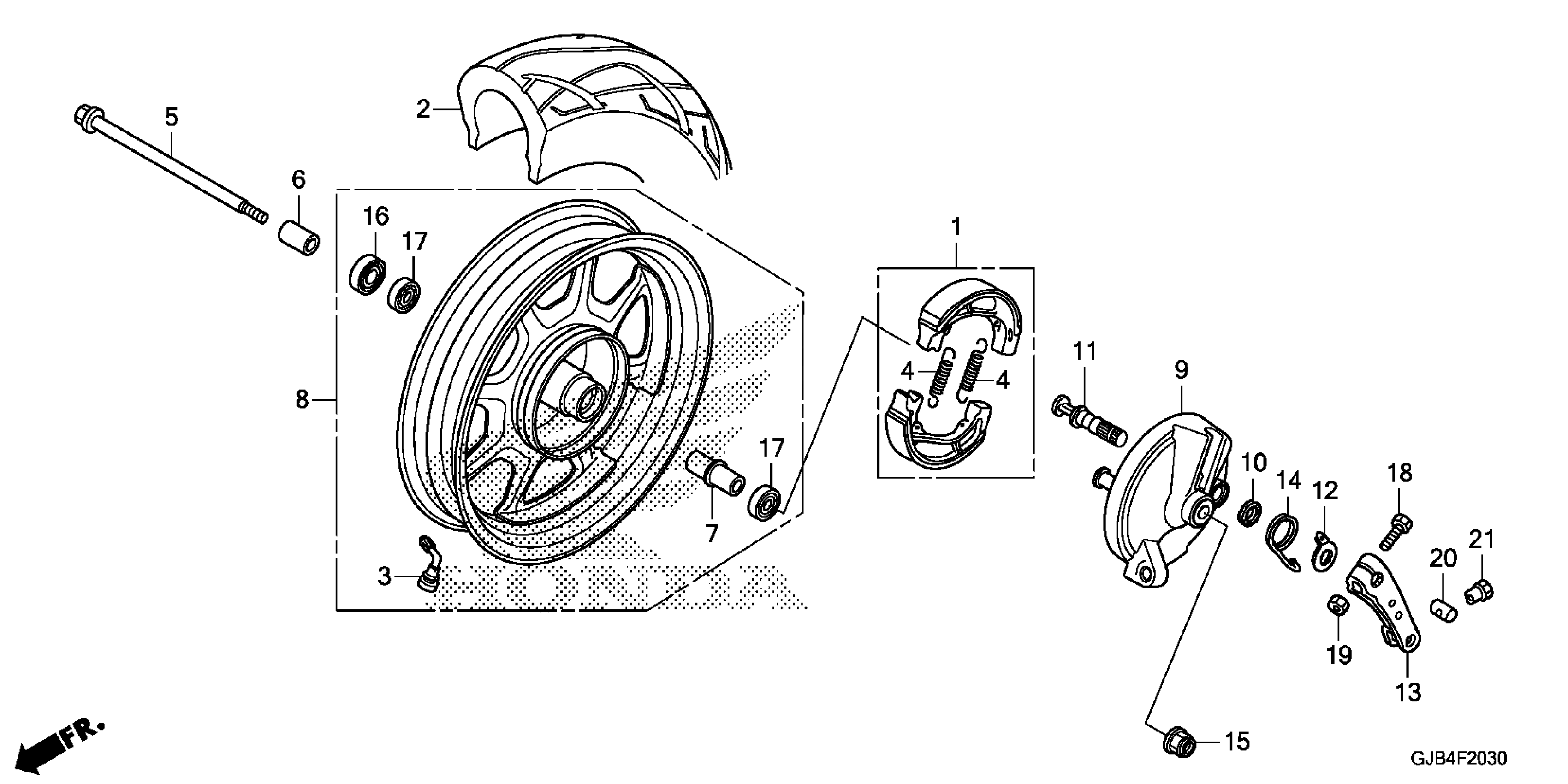

Honda NCW50AC (24) MOTOR SCOOTER, JPN, VIN# JH2AF771-RK700001 FRONT WHEEL Diagram

#

Description
Price

1

SHOE SET, BRAKE

06450-GFC-770

$28.21

2

TIRE (80/100-10 46J) (CST)

42711-GJA-J01

$64.72

3

VALVE, RIM (CST)

42753-K12-911

$2.43

4

SPRING, BRAKE SHOE

43151-GC4-000

$4.45

4

SPRING, BRAKE SHOE

45151-GFC-900

$2.70

5

AXLE, FR. WHEEL

44301-GGZ-J00

$2.23

6

COLLAR, FR. WHEEL SIDE

44311-GGZ-J00

$1.84

7

COLLAR, FR. AXLE DISTANCE

44620-GJA-J00

$2.01

8

WHEEL SUB-ASSY., FR. *NH295M* (SPARKLING SILVER METALLIC)

44650-GJA-J01ZB

$148.25

8

WHEEL SUB-ASSY., FR. *NH1* (BLACK)

44650-GJA-J01ZA

$114.22

9

PANEL, FR. BRAKE *NH295M* (SPARKLING SILVER METALLIC)

45100-GJA-J00ZB

$16.42

9

PANEL, FR. BRAKE *NH1* (BLACK)

45100-GJA-J00ZA

$15.99

10

SEAL, BRAKE CAM

45134-165-890

$1.43

11

CAM, FR. BRAKE

45141-GJA-J00

$3.29

12

INDICATOR, FR. BRAKE

45145-GFC-900

$1.96

13

ARM, FR. BRAKE

45410-GJA-J00

$2.77

14

SPRING, BRAKE ARM RETURN

45435-GJA-J00

$0.67

15

NUT, U (10MM) NUT, SELF-LOCK (10MM)

90304-GE8-003

$3.42

16

OIL SEAL (19X30.5X7) (ARAI)

90754-147-003

$4.94

17

BEARING, RADIAL BALL (6000U) (NTN)

91051-GGZ-J01

$2.83

18

BOLT, HEX. (5X25)

92101-05025-0H

$0.46

19

NUT, HEX. (5MM)

94001-050800S

$0.94

20

JOINT A, BRAKE ARM

95015-31001

$1.46

21

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.28
