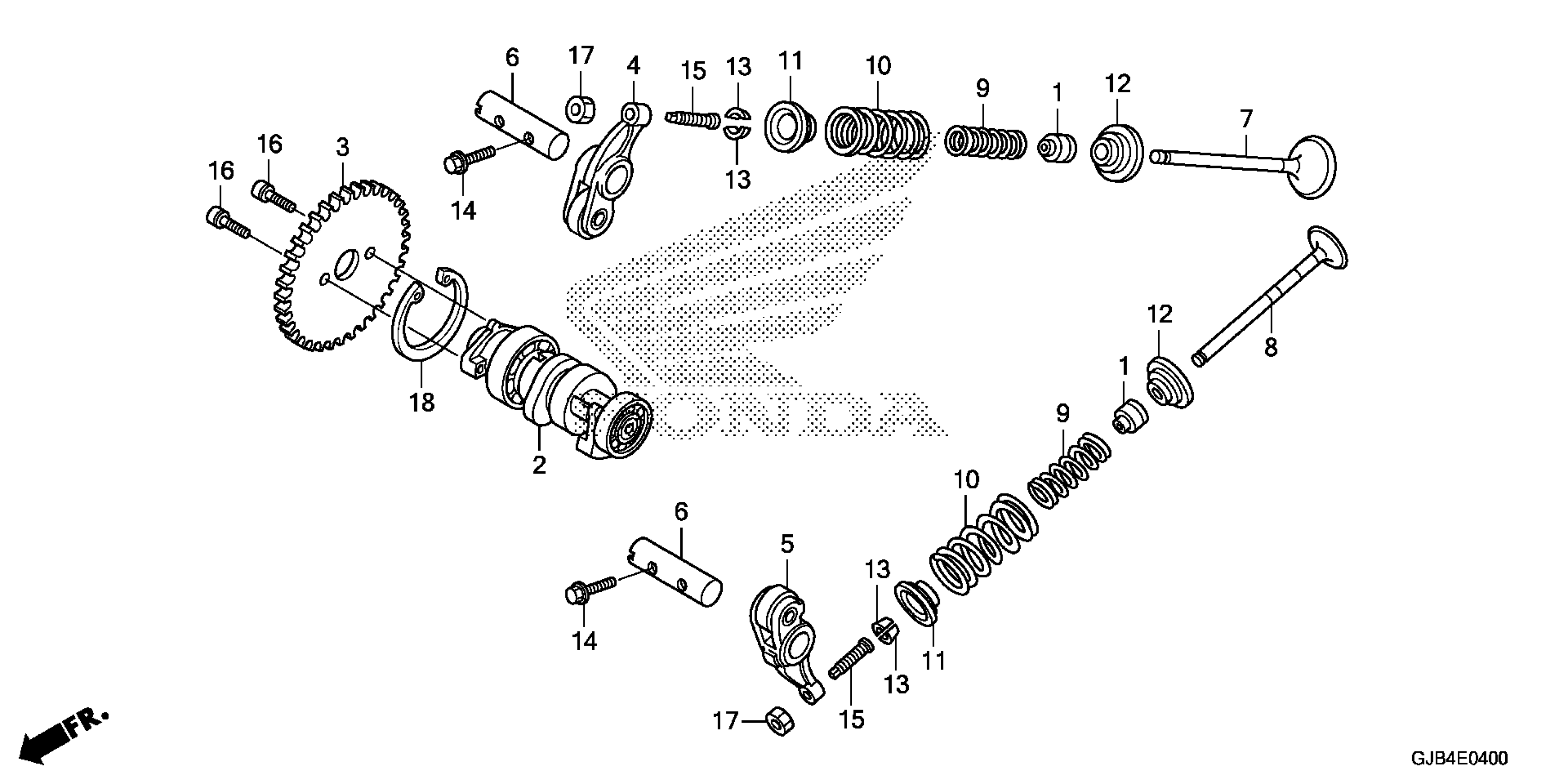

Honda NCW50AC (24) MOTOR SCOOTER, JPN, VIN# JH2AF771-RK700001 CAMSHAFT@VALVE Diagram

SEAL, VALVE STEM (ARAI)

12209-ML0-722

$7.64

CAMSHAFT | Use up to Engine SN 5120712.

14100-GGZ-J01

$36.39

CAMSHAFT | Use from Engine SN 5120713.

14100-GGZ-J02

Unavailable

SPROCKET, CAM (34T)

14321-GGZ-J00

$3.28

ARM, IN. VALVE ROCKER

14430-GGZ-J00

$100.33

ARM, EX. VALVE ROCKER

14440-GGZ-J00

$31.28

SHAFT, ROCKER ARM

14451-KVB-S50

$11.09

VALVE, IN.

14711-GGZ-J00

$10.64

VALVE, EX.

14721-GGZ-J00

$20.02

SPRING, EX. VALVE (INNER) (IN./EX.)

14752-GGM-900

$1.49

SPRING, EX. VALVE (OUTER) (IN./EX.)

14761-GGM-900

$1.49

RETAINER, VALVE SPRING

14771-GGZ-J00

$1.62

SEAT, VALVE SPRING

14775-GGZ-J00

$4.70

COTTER, VALVE

14781-ML0-720

$3.45

BOLT, FLANGE (5X12)

90002-KWB-600

$1.49

SCREW, TAPPET ADJUSTING

90012-KWB-600

$1.49

BOLT, SOCKET KNOCK (5MM)

90083-KVB-900

$1.49

NUT, TAPPET ADJUSTING

90206-001-000

$1.66

CIRCLIP (INNER) (35MM)

94520-35000

$1.84
