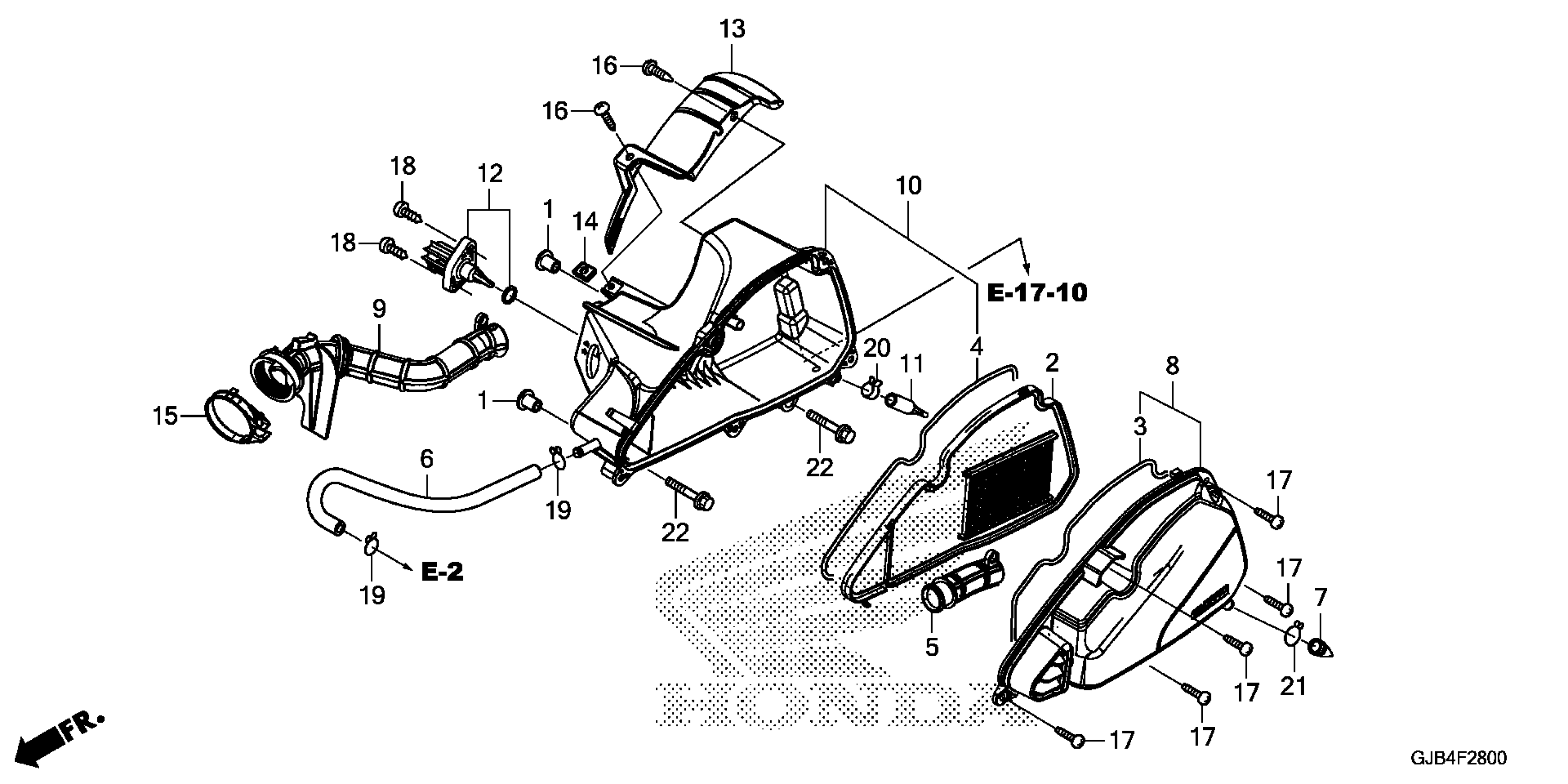

Honda NCW50AC (24) MOTOR SCOOTER, JPN, VIN# JH2AF771-RK700001 AIR CLEANER Diagram

#

Description
Price

1

COLLAR, AIR CLEANER SETTING

17208-GR1-010

$2.92

2

ELEMENT, AIR CLEANER

17210-GGZ-J00

$8.93

3

SEAL, AIR CLEANER COVER

17212-GGZ-J00

$1.49

4

SEAL, AIR CLEANER HOUSING

17213-GGZ-J00

$1.49

5

DUCT, AIR CLEANER

17215-GGZ-J00

$2.26

6

TUBE, BREATHER

17218-GGZ-J00

$5.38

7

TUBE, AIR CLEANER DRAIN

17234-KCW-871

$2.57

8

COVER SUB-ASSY., AIR CLEANER

17245-GGZ-J00

$7.30

9

TUBE, AIR CLEANER CONNECTING

17253-GGZ-J00

$8.66

10

CASE SUB-ASSY., AIR CLEANER

17255-GGZ-J00

$8.82

11

TUBE, DRAIN

17261-KVB-T00

$1.49

12

SENSOR ASSY., AIR TEMPERATURE

37880-KWW-C01

$44.57

13

FENDER, RR. (INNER)

80106-GGZ-J00

$1.82

14

NUT, SPRING (5MM) This part replaces 90301-GAZ-930.

90301-KE1-003

$2.97

14

NUT, SPRING (5MM)

90301-KE1-003

$2.97

15

BAND, AIR CLEANER CONNECTING TUBE (42)

90652-GGZ-J00

$1.49

16

SCREW, TAPPING (5X16)

93903-25380

$1.49

17

SCREW, TAPPING (5X20)

93903-25480

$1.49

18

SCREW, TAPPING (5X20)

93913-255J0

$1.72

19

CLIP, TUBE (B12.5)

95002-02130

$1.49

20

CLAMP, TUBE (D12)

95002-41200-08

$2.34

21

CLIP, TUBE (C12)

95002-80000

$1.49

22

BOLT, FLANGE (6X30)

95701-06030-00

$1.89
