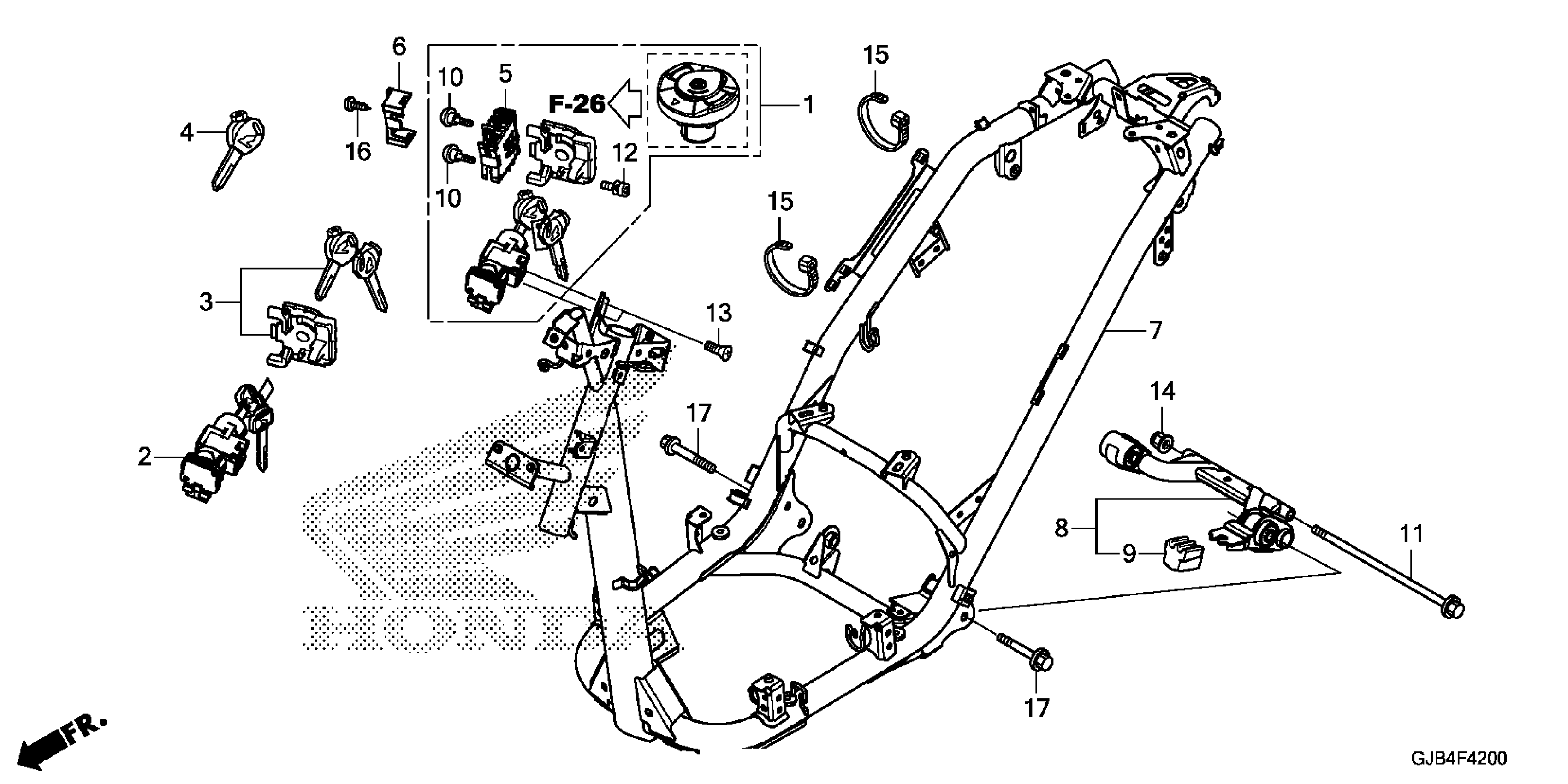

Honda NCW50AC (16) METROPOLITAN, JPN, VIN# JH2AF771-GK000001 TO JH2AF771-GK099999 FRAME Diagram

LOCK SET This part replaces 35010-GJA-J00.

35010-GJA-J02

$64.99

LOCK SET This part replaces 35010-GJA-J01.

35010-GJA-J02

$64.99

LOCK SET

35010-GJA-J02

$64.99

SWITCH ASSY., COMBINATION & LOCK

35101-K46-N01

$23.41

SHUTTER, KEY

35110-K46-N01

$20.21

KEY, BLANK (N0KEYTOP2REPORDER) (N0TAGTOP2REPORDER) | (Optional).

35121-K46-N00

Unavailable

SWITCH ASSY., SEAT OPENER

35190-K46-N01

$7.15

COVER, CABLE

35191-K27-V01

$1.92

FRAME

50100-GJB-J00

$342.44

LINK ASSY., ENGINE HANGER

50350-GGZ-J00

$50.16

RUBBER, LINK STOPPER

50352-GGZ-J00

$1.95

SCREW, SCREEN SETTING

90101-MT4-000

$1.79

BOLT, FLANGE (10X238)

90106-GCC-C50

$6.75

BOLT, SOCKET (5X9)

90111-MR5-000

$2.61

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

NUT, U (10MM) NUT, SELF-LOCK (10MM)

90304-GE8-003

$3.67

BAND, WIRE HARNESS

90620-SB2-003

$24.63

SCREW, TAPPING (4X12)

93901-24320

$1.49

BOLT, FLANGE (10X60)

95801-10060-00

$2.25
