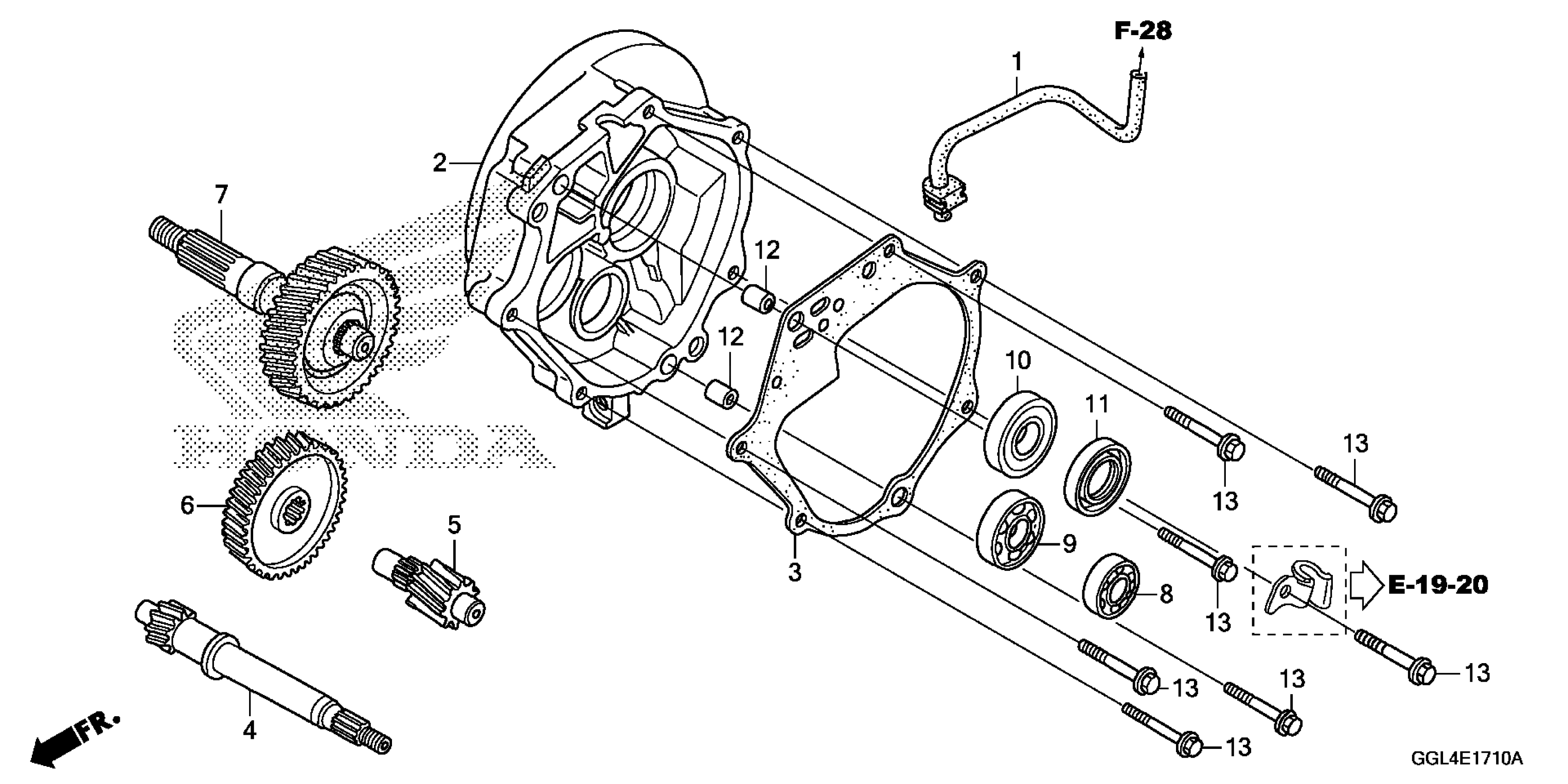

Honda NCH502AC (15) METROPOLITAN, CHN, VIN# LALAF701-F3200001 TRANSMISSION Diagram

TUBE, TRANSMISSION BREATHER

11220-GFC-901

$6.87

CASE, TRANSMISSION

21200-GFC-771

$117.26

GASKET, TRANSMISSION COVER

21395-GFC-901

$11.66

SHAFT, DRIVE (15T)

23411-GFH-920

$41.74

COUNTERSHAFT (13T)

23421-GFH-920

$31.87

GEAR, COUNTER (54T)

23422-GFH-920

$49.93

GEAR, FINAL (49T)

23430-GFC-900

$94.28

BEARING, RADIAL BALL (6201) (NSK)

91005-GFC-901

$13.56

BEARING, RADIAL BALL (6201)

96100-62010-00

$8.08

BEARING, RADIAL BALL (6202) This part replaces 91006-GFC-901.

96100-62020-00

$9.18

BEARING, RADIAL BALL (6202)

96100-62020-00

$9.18

BEARING, RADIAL BALL (6004UU) (NTN CORP.)

91009-GE0-004

$14.88

BEARING, RADIAL BALL (6004UU) (C3) (NSK)

91009-GFC-901

$14.34

OIL SEAL (28X42X7)

91203-GGL-J01

$8.93

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
