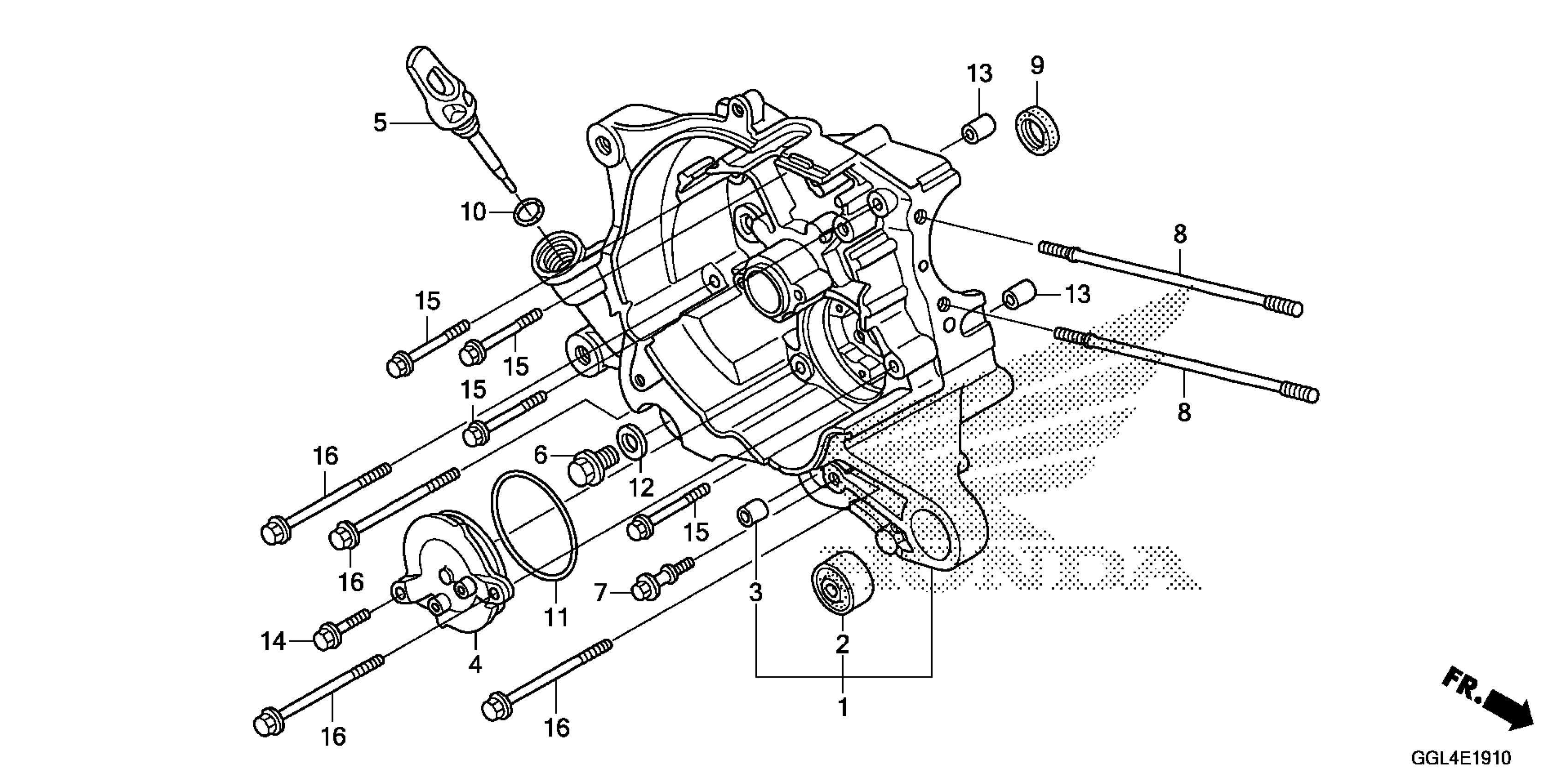

Honda NCH502AC (15) METROPOLITAN, CHN, VIN# LALAF701-F3200001 RIGHT CRANKCASE Diagram

CRANKCASE, R.

11100-GGL-J01

$173.98

RUBBER BUSH, ENGINE HANGER

11105-GFC-900

$6.36

BUSH, MAIN STAND

11205-GBC-300

$1.49

COVER, OIL PUMP

11361-GFC-770

$12.26

DIPSTICK, OIL

15651-GFC-900

$9.05

BOLT, DRAIN PLUG (12MM)

90004-GFC-J30

$2.20

BOLT, SPECIAL (6X27)

90016-GAM-690

$4.61

BOLT A, STUD (7X180)

90031-GGL-J00

$5.03

OIL SEAL (16X26X7)

91201-GCC-771

$3.84

O-RING (18X3)

91307-035-000

$2.92

O-RING (64X2)

91307-639-000

Unavailable

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (8X20) (Honda Code 1417369)

94301-08200

$2.25

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

BOLT, FLANGE (6X80)

95701-06080-00

$2.34
