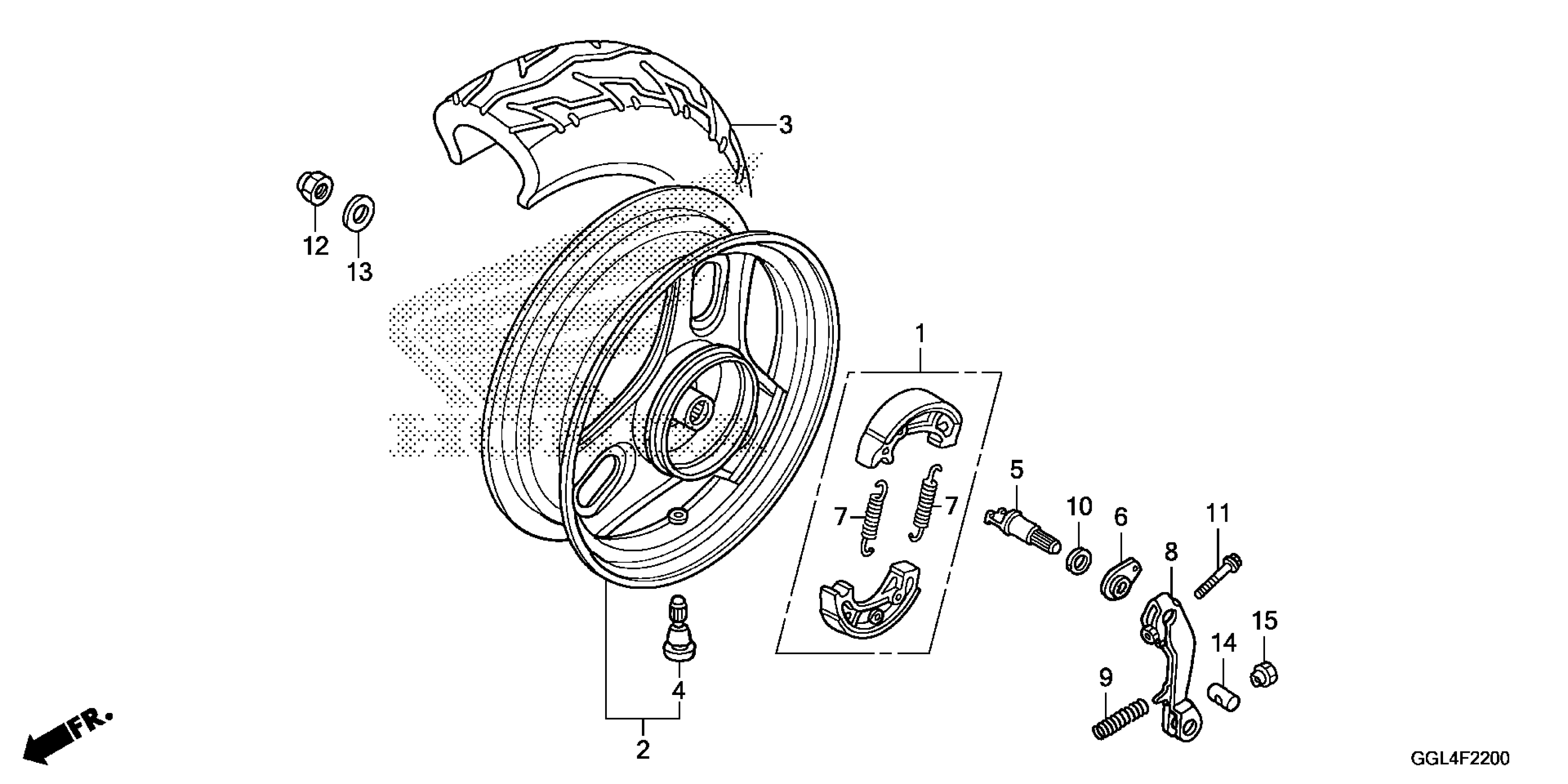

Honda NCH502AC (15) METROPOLITAN, CHN, VIN# LALAF701-F3200001 REAR WHEEL Diagram

SHOE SET, BRAKE

06430-GFH-750

$26.08

WHEEL SET, RR. *NH1* (COO) (BLACK)

42650-GGL-305ZA

$173.50

WHEEL SET, RR. *NH295M* (COO) (SPARKLING SILVER METALLIC)

42650-GGL-305ZB

Unavailable

TIRE (80/100-10 46J) (DURO)

42711-GFC-904

Unavailable

VALVE, RIM

42753-GFC-880

Unavailable

VALVE, RIM This part replaces 42753-GFC-902.

42753-GFC-880

Unavailable

CAM, RR. BRAKE

43141-GGL-J01

$15.59

INDICATOR, RR. BRAKE

43145-GFC-900

$2.09

SPRING, BRAKE SHOE This part replaces 43151-GFC-900.

43151-110-000

$2.80

SPRING, BRAKE SHOE (SEE KIT P/N--END OF BLOCK)

43151-110-000

$2.80

ARM, RR. BRAKE

43410-GFH-920

$25.10

SPRING, RR. BRAKE ARM

43472-GFC-950

$2.32

DUST SEAL, BRAKE CAM

45134-250-000

Unavailable

BOLT, FLANGE (6X40)

90102-GFH-920

$1.46

NUT, U (16MM)

90305-KBN-901

$18.47

WASHER (16MM)

90501-GFC-900

$0.82

JOINT A, BRAKE ARM

95015-31001

$1.85

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.54
