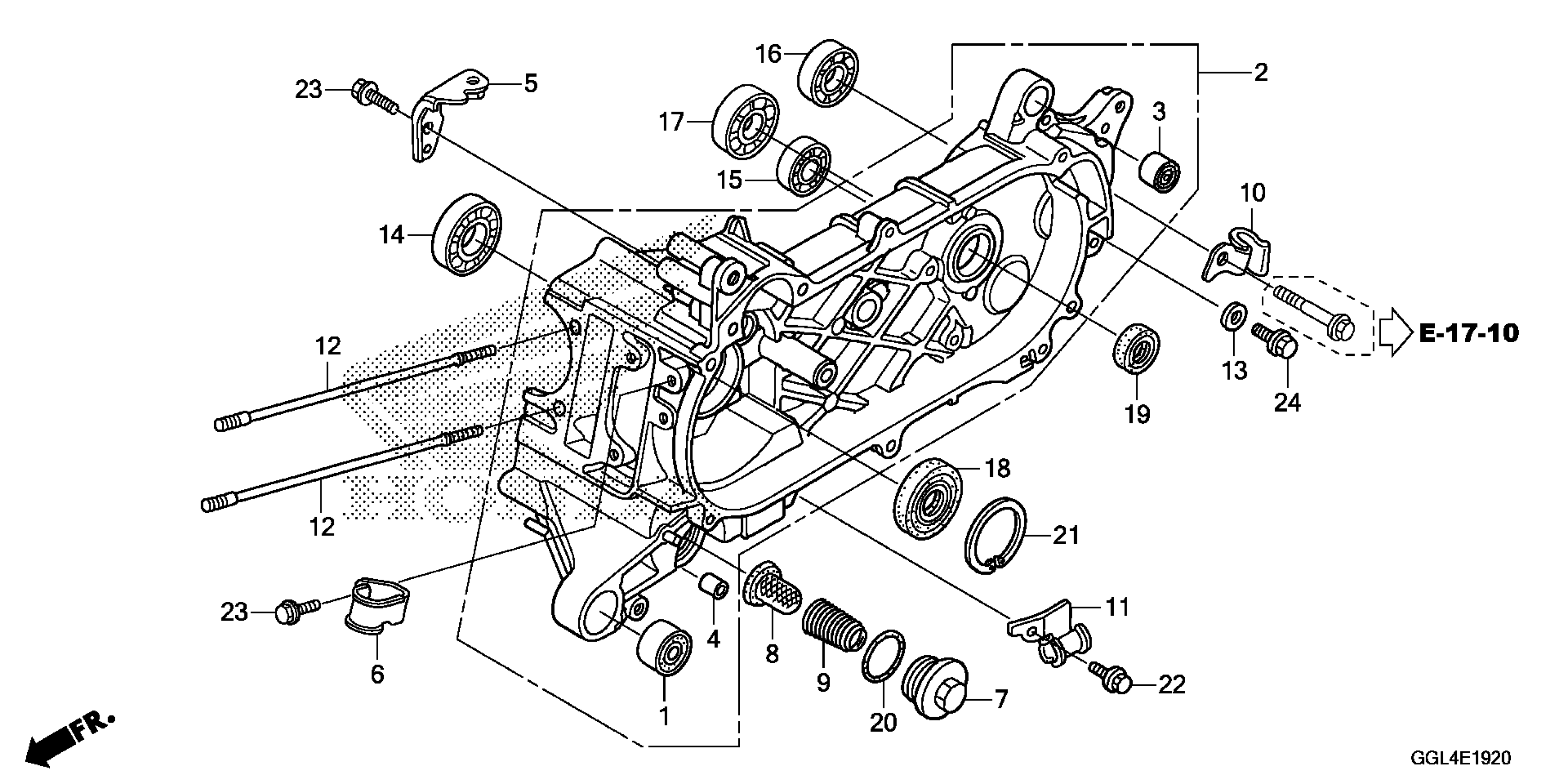

Honda NCH502AC (15) METROPOLITAN, CHN, VIN# LALAF701-F3200001 LEFT CRANKCASE Diagram

#

Description
Price

1

RUBBER BUSH, ENGINE HANGER

11105-GFC-900

$6.36

2

CRANKCASE, L.

11200-GGL-J00

$298.85

3

BUSH, RR. CUSHION RUBBER (LOWER)

11203-GFC-770

$5.31

4

BUSH, MAIN STAND

11205-GBC-300

$1.49

5

STAY, HOSE CLAMP

11230-GFC-770

$3.38

6

CLAMP, THROTTLE CABLE

11241-GFC-770

$3.28

7

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

7

CAP, VALVE ADJ.

12361-300-000

Unavailable

7

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

8

SCREEN, OIL FILTER

15421-GFC-900

$2.15

9

SPRING, OIL FILTER SCREEN

15426-KCW-880

$2.92

10

CLAMP, DRAIN

17222-GGL-J00

$3.92

11

CLAMP, RR. BRAKE CABLE

43455-GGL-J00

$3.75

12

BOLT B, STUD (7X185)

90032-GGL-J00

$5.03

13

WASHER, SEALING (8MM)

90474-333-000

$3.30

14

BEARING, RADIAL BALL (6007) (NTN)

91002-GFC-901

$33.62

15

BEARING, RADIAL BALL (6201) (NSK)

91005-GFC-901

$13.56

15

BEARING, RADIAL BALL (6201)

96100-62010-00

$8.08

16

BEARING, RADIAL BALL (6202) This part replaces 91006-GFC-901.

96100-62020-00

$9.18

16

BEARING, RADIAL BALL (6202)

96100-62020-00

$9.18

17

BEARING, RADIAL BALL (6203) This part replaces 91007-GFC-901.

96100-62033-00

$10.00

17

BEARING, RADIAL BALL (6203)

96100-62033-00

$10.00

18

OIL SEAL (20X52X6)

91202-GGL-J01

$6.03

19

OIL SEAL (17X30X5) (ARAI)

91204-GBB-003

$3.85

20

O-RING (30.8MM) (Honda Code 0001065)

91302-001-020

$3.75

21

CIRCLIP (INNER) (52MM)

94520-52150

$2.13

22

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

23

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

24

BOLT, FLANGE (8X12)

95701-08012-00

$1.49
