Description

Price

1

CLUTCH (OUTER)

22100-GW2-710

$97.62

2

PLATE, DRIVE

22350-GAH-A00

$34.87

2

PLATE, DRIVE This part replaces 22350-GAK-930.

22350-GAH-A00

$34.87

3

SPRING, CLUTCH

22401-GG2-900

$3.85

4

WEIGHT SET, CLUTCH

22535-GAK-305

$71.98

5

RUBBER, CLUTCH DAMPER

22804-148-000

$2.97

6

BELT, DRIVE (MITSUBOSHI)

23100-GFC-901

$35.72

7

FACE SET, DRIVEN

23205-GGL-J00

$86.15

8

FACE, MOVABLE DRIVEN

23220-GFC-900

$49.05

9

PIN, GUIDE

23225-GR1-750

$4.02

10

SPRING, DRIVEN FACE

23233-GEE-000

$13.20

11

COLLAR, SEAL

23237-GR1-880

$12.41

12

COLLAR, SPRING

23238-GS7-010

$15.95

13

NUT, SPECIAL (28MM)

90202-187-000

$7.32

14

WASHER, THRUST (6MM)

90442-044-000

$2.21

15

CIRCLIP (6MM)

90454-GB2-000

$1.79

16

BEARING, RADIAL BALL (6901U)

91006-GGL-J01

$9.56

17

BEARING, NEEDLE (17X25X18)

91103-GGL-J01

$13.82

18

OIL SEAL (34X39X3) (ARAI)

91211-GFC-771

$7.67

19

O-RING (36X1.5) (ARAI)

91301-KA5-741

$7.69

20

O-RING (39.8X2.2)

91302-GGL-J01

$2.34

21

NUT, FLANGE (10MM)

94050-10000

$1.59

22

CIRCLIP (INNER) (24MM)

94520-24000

$1.49

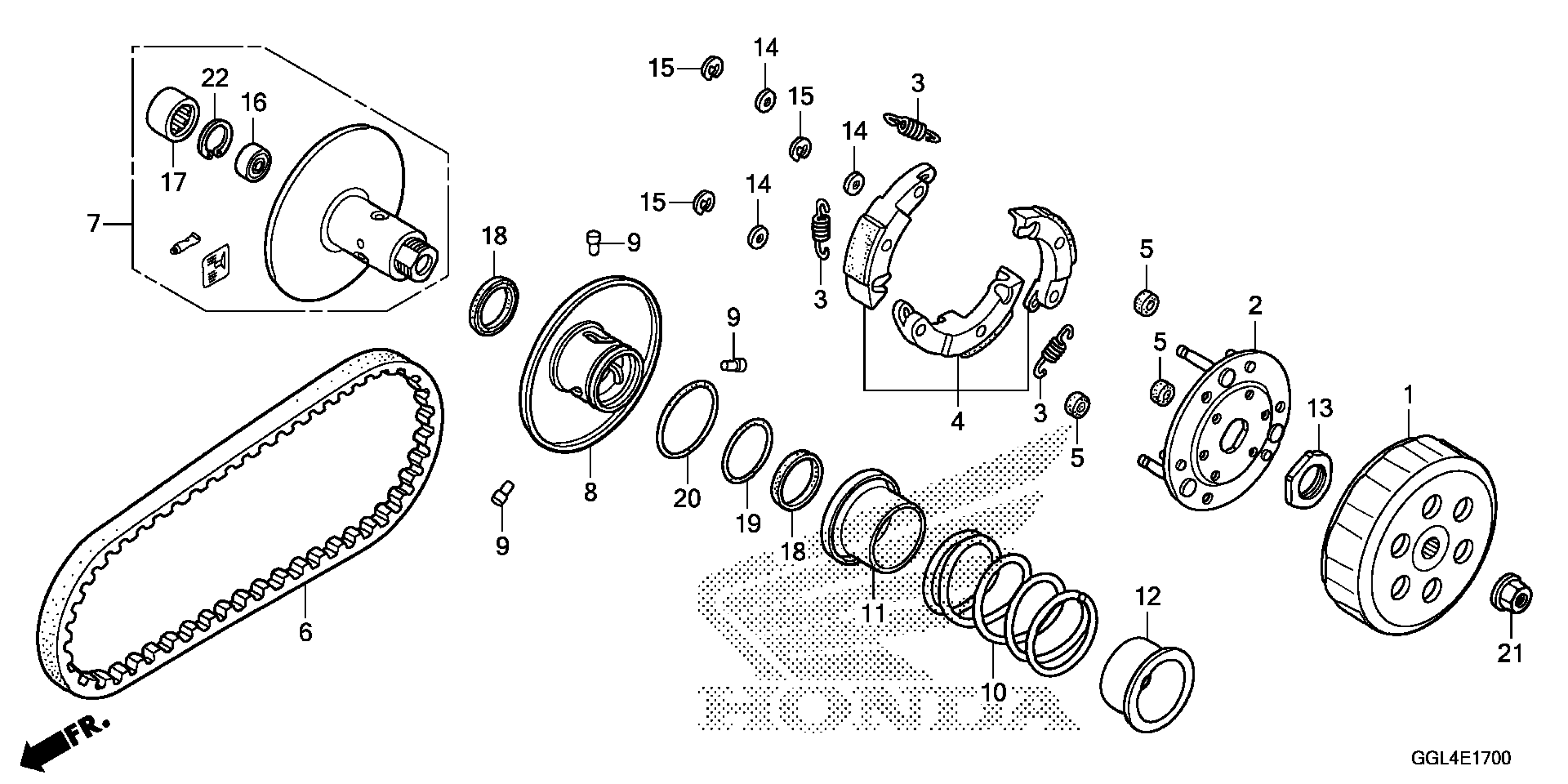

Honda NCH502AC (15) METROPOLITAN, CHN, VIN# LALAF701-F3200001 DRIVEN FACE Diagram
