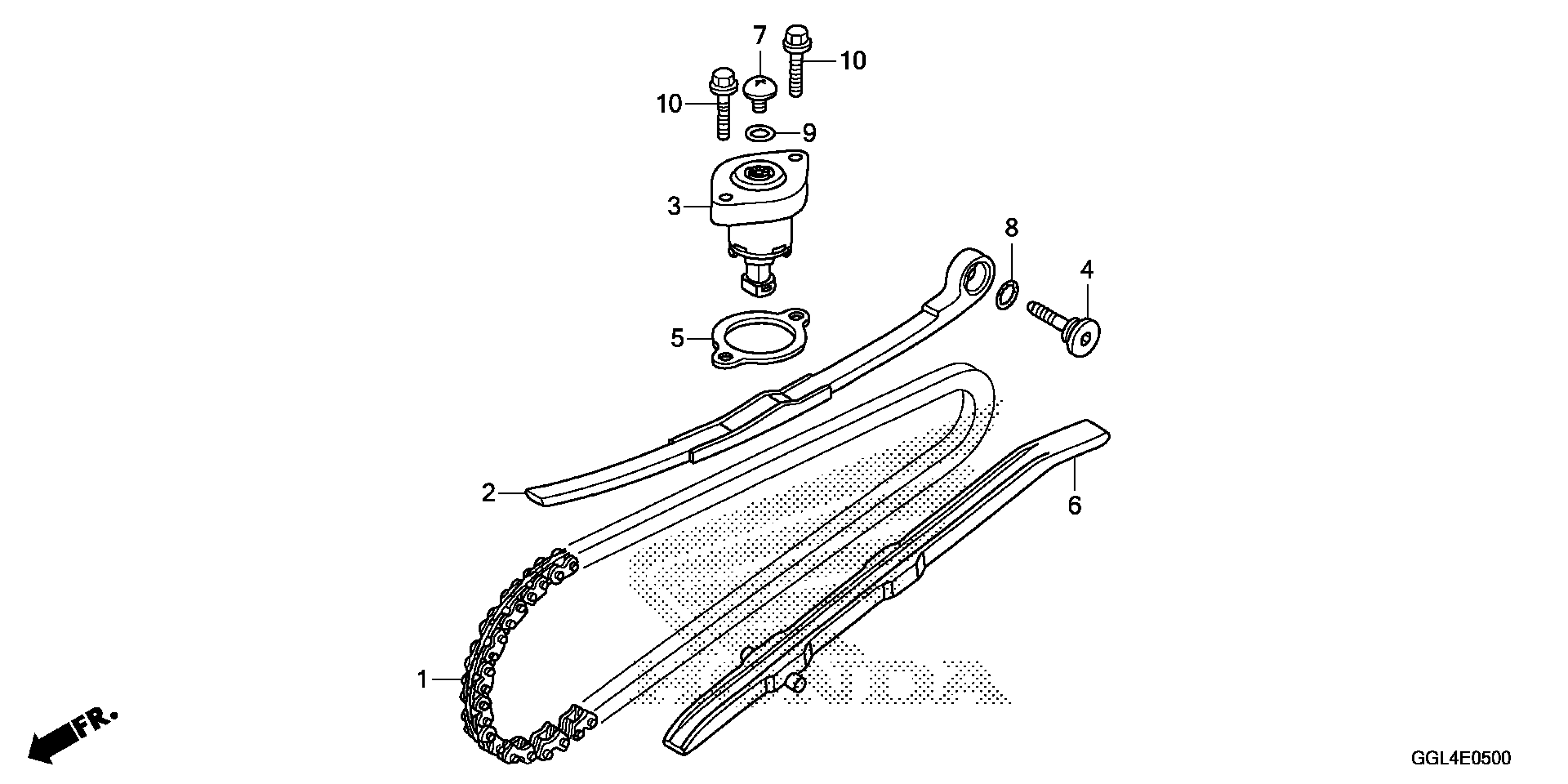

Honda NCH502AC (15) METROPOLITAN, CHN, VIN# LALAF701-F3200001 CAM CHAIN@TENSIONER Diagram

CHAIN, CAM (86L) (BORG WARNER)

14401-GCC-771

$45.10

CHAIN, CAM (86L) (SCR-0404 SV) (DAIDO)

14401-GCC-772

$44.62

TENSIONER, CAM CHAIN

14510-GCC-000

$53.85

LIFTER ASSY., TENSIONER

14520-GFC-771

$73.70

PIVOT, CAM CHAIN TENSIONER

14531-GCC-000

$3.08

GASKET, TENSIONER LIFTER

14560-GFC-902

$4.57

GUIDE, CAM CHAIN

14611-GFC-900

$20.87

SCREW, PAN (6X6)

90005-KY7-000

$3.24

O-RING (15.2X1.5)

91301-GR0-004

$2.70

O-RING (15.2X1.5) This part replaces 91301-HM5-630.

91301-GR0-004

$2.70

O-RING (1.5X9.5)

91306-MG3-000

$2.33

O-RING (1.5X9.5) This part replaces 91306-105-690.

91306-MG3-000

$2.33

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
