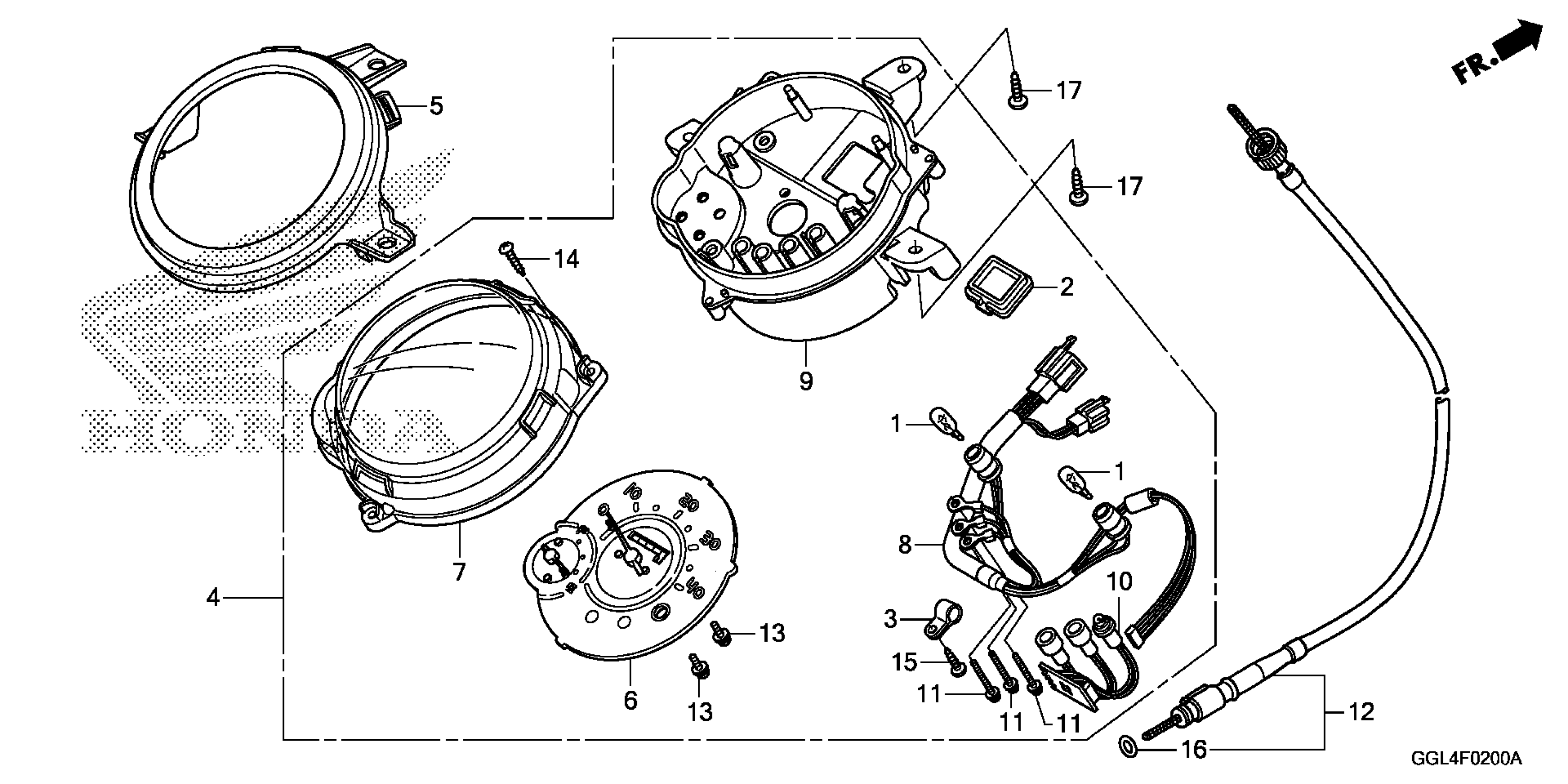

Honda NCH502AC (14) METROPOLITAN, CHN, VIN# LALAF701-E3100001 TO LALAF701-E3199999 SPEEDOMETER Diagram

Description

Price

BULB, WEDGE BASE (T10 12V 1.7W)

34908-KTF-641

$5.31

CAP

37113-KV3-951

$2.66

CLAMP

37121-KV3-008

$4.36

SPEEDOMETER ASSY. (MPH/KPH)(COO)

37200-GGL-305

$261.61

RING, SPEEDOMETER

37205-GGL-J00

$40.36

SPEEDOMETER

37210-GGL-A01

$178.13

LENS

37211-GGL-J01

$23.39

SOCKET

37213-GGL-A01

$45.66

CASE ASSY. (LOWER)

37214-GGL-A01

$44.02

INDICATOR ASSY.

37215-GGL-A01

$23.31

SCREW-WASHER (3X22)

37305-KE5-008

$2.75

CABLE ASSY., SPEEDOMETER

44830-GGL-J00

$24.05

SCREW-WASHER, SPECIAL (4X10)

90035-166-008

$2.67

SCREW, TAPPING (3X14)

90101-KY6-008

$2.61

SCREW, TAPPING (4X14)

90109-MZ5-008

$4.52

O-RING (8.5X1.5)

91352-GFC-900

$1.95

SCREW, TAPPING (5X16)

93903-25310

$1.49
