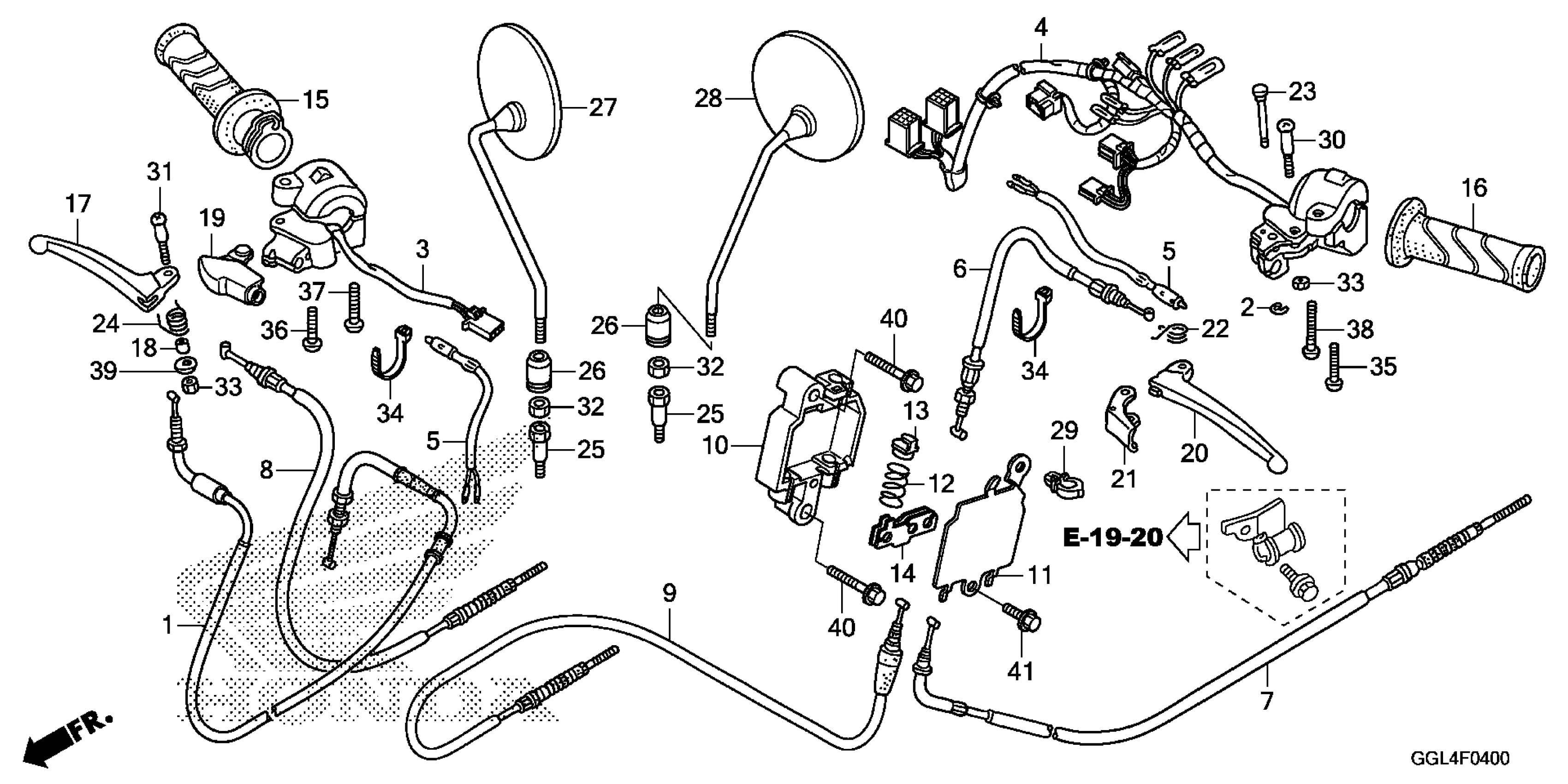

Honda NCH502AC (14) METROPOLITAN, CHN, VIN# LALAF701-E3100001 TO LALAF701-E3199999 HANDLE LEVER@SWITCH@CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE (HI-LEX)

17910-GGL-J01

$52.23

1

CABLE, THROTTLE (HI-LEX) This part replaces 17910-GGL-J02.

17910-GGL-J01

$52.23

2

E-CLIP (3MM)

30158-700-010

$2.92

3

SWITCH ASSY., STARTER & ENGINE STOP

35130-GGL-A01

$102.44

4

SWITCH ASSY., TURN SIGNAL

35200-GGL-A01

$106.85

5

SWITCH ASSY., FR. STOP

35340-GGL-J01

$16.10

6

CABLE, RR. BRAKE FIRST

43440-GGL-J01

$17.57

7

CABLE, RR. BRAKE SECOND

43450-GGL-J01

$34.08

8

CABLE, FR. BRAKE FIRST

45440-GGL-J01

$25.02

9

CABLE, FR. BRAKE SECOND

45450-GGL-J01

$23.03

10

BRACKET, BRAKE

47601-GGL-J00

$16.67

11

COVER, BRACKET

47602-GGL-J00

$12.82

12

SPRING, DELAY

47604-GGL-J00

$2.64

13

STOPPER, EQUALIZER

47605-GGL-J00

$4.15

14

EQUALIZER

47651-GGL-J00

$7.34

15

GRIP, THROTTLE *NH1L* (COO) (BLACK)

53140-GGL-305ZA

$16.75

15

GRIP, THROTTLE *YR167R* (COO) (FUNKY BROWN)

53140-GGL-305ZB

$16.75

16

GRIP, L. HANDLE *NH1L* (COO) (BLACK)

53166-GGL-305ZA

$8.36

16

GRIP, L. HANDLE *YR167R* (COO) (FUNKY BROWN)

53166-GGL-305ZB

$8.39

17

LEVER, R. HANDLEBAR (COO) This part replaces 53175-GEL-305.

53175-GGA-305

$12.88

17

LEVER, R. HANDLEBAR (COO)

53175-GGA-305

$12.88

17

LEVER, R. HANDLEBAR (COO) This part replaces 53175-GGL-305.

53175-GGA-305

$12.88

18

GUIDE, RETURN SPRING

53176-GET-000

$4.36

19

COVER, R. HANDLE LEVER

53176-GFC-950

$16.43

20

LEVER, L. HANDLEBAR (COO)

53178-GGL-305

$14.62

21

LEVER, PARKING

53181-GFC-770

$8.56

22

SPRING, PARKING LEVER RETURN

53182-GW3-980

$2.48

23

PIN, PARKING LEVER PIVOT

53183-GW3-980

$3.84

24

SPRING, BRAKE LEVER RETURN

53199-GEE-010

$2.92

25

BOLT, ADAPTER (8MM)

88115-GAH-790

$10.95

26

CAP, LOCK NUT

88116-GFC-B40

$2.46

27

MIRROR, R. This part replaces 88210-GGL-305.

88210-GET-K31

$34.90

28

MIRROR, L. This part replaces 88220-GGL-305.

88220-GET-K31

$34.43

29

CLIP, HARNESS

90112-GFC-J31

$1.95

30

SCREW, HANDLE LEVER PIVOT (5X26)

90115-147-000

$2.72

31

SCREW, HANDLE LEVER PIVOT

90115-GBL-870

$1.49

32

NUT, HEX. (8MM) (LEFT HAND THREAD)

90201-GC8-650

$1.49

33

NUT, HEX. (5MM)

90302-435-761

$2.23

34

BAND, WIRE

90650-KYS-941

$3.08

35

SCREW, PAN (5X28)

93500-05028-0A

$1.49

36

SCREW, PAN (5X32)

93500-05032-0A

$1.49

37

SCREW, PAN (5X35)

93500-05035-0A

$1.49

38

SCREW, PAN (5X40)

93500-05040-0A

$1.49

39

WASHER, PLAIN (5MM)

94103-05000

$1.49

40

BOLT, FLANGE (6X30)

95701-06030-08

$2.06

41

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
