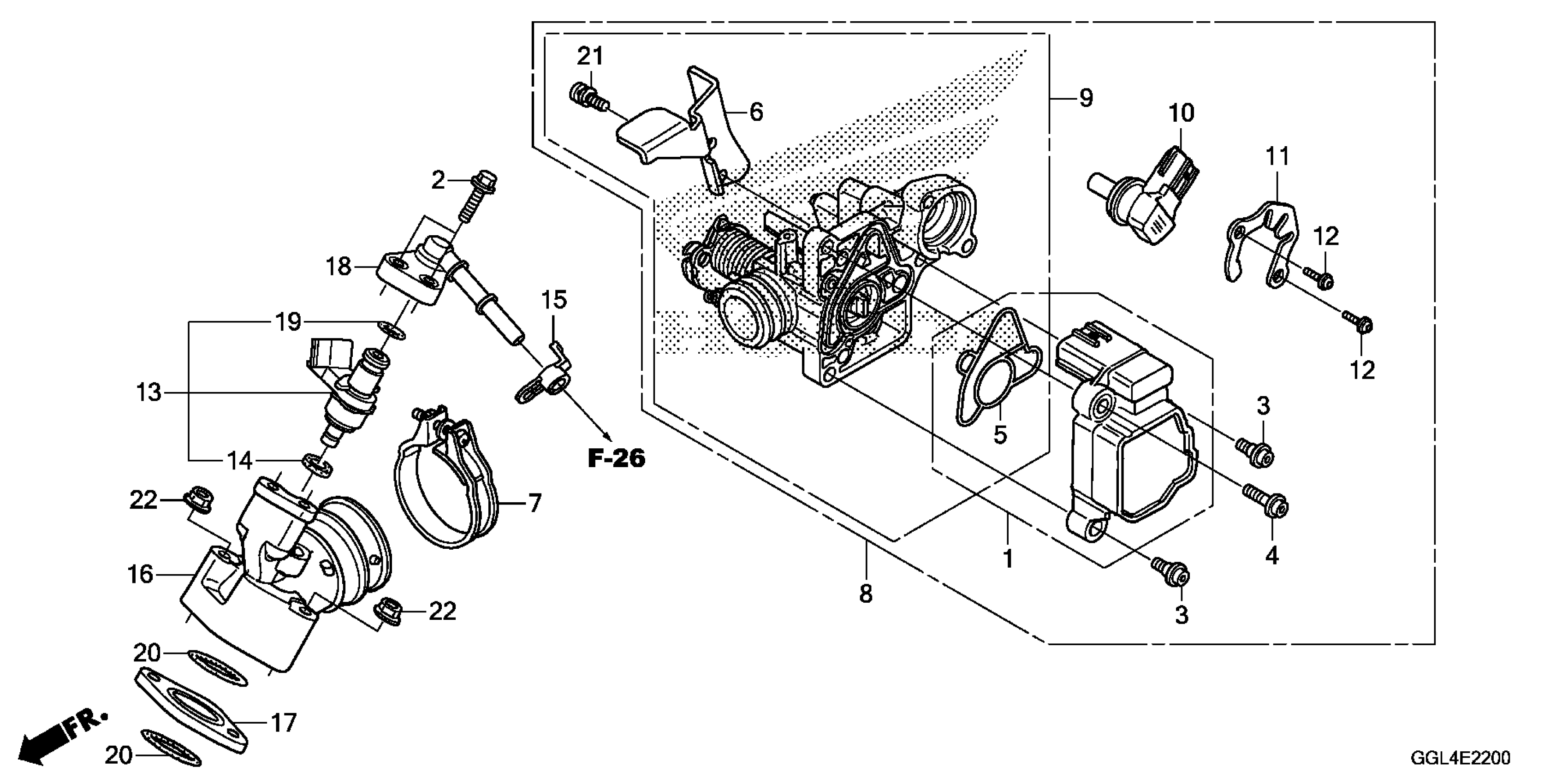

Honda NCH502AC (13) METROPOLITAN, CHN, VIN# LALAF700-D3003343 TO LALAF700-D3099999 THROTTLE BODY@FUEL INJECTOR Diagram

SENSOR SET

16060-GFZ-003

$98.43

BOLT, FLANGE (5X20)

16080-KPH-701

$4.63

SCREW, TORX (5X8.7)

16081-KPH-701

$3.12

SCREW, TORX (5X17)

16082-KPH-701

$5.43

O-RING, THROTTLE BODY

16083-KTR-941

$1.49

PLATE, STAY

16169-GFM-901

$9.59

BAND, INSULATOR

16217-GFC-770

$5.30

BODY ASSY., THROTTLE (GQW6A C)

16400-GFC-J33

$351.21

BODY SET

16410-GFC-J32

$172.57

VALVE SET, IDLE AIR CONTROL

16430-KTM-D22

$77.75

PLATE, IDLE AIR CONTROL VALVE

16432-GFM-901

$5.74

SCREW, TORX

16433-HN8-A61

$1.49

INJECTOR ASSY., FUEL

16450-GGL-J01

$98.91

RING, SEAL (Honda Code 8954000)

16472-KPC-D50

$2.14

DAMPER A, CONNECTOR

16718-KTW-900

$2.34

PIPE, INLET

17110-GGL-J02

$182.61

INSULATOR, IN. PIPE

17119-GFC-770

$7.15

JOINT, INJECTOR

17560-GGL-J00

$30.23

O-RING (6.3X2.2)

91301-GGL-J01

$10.46

O-RING (19.8X1.9)

91308-GFC-900

$2.51

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.49

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49
