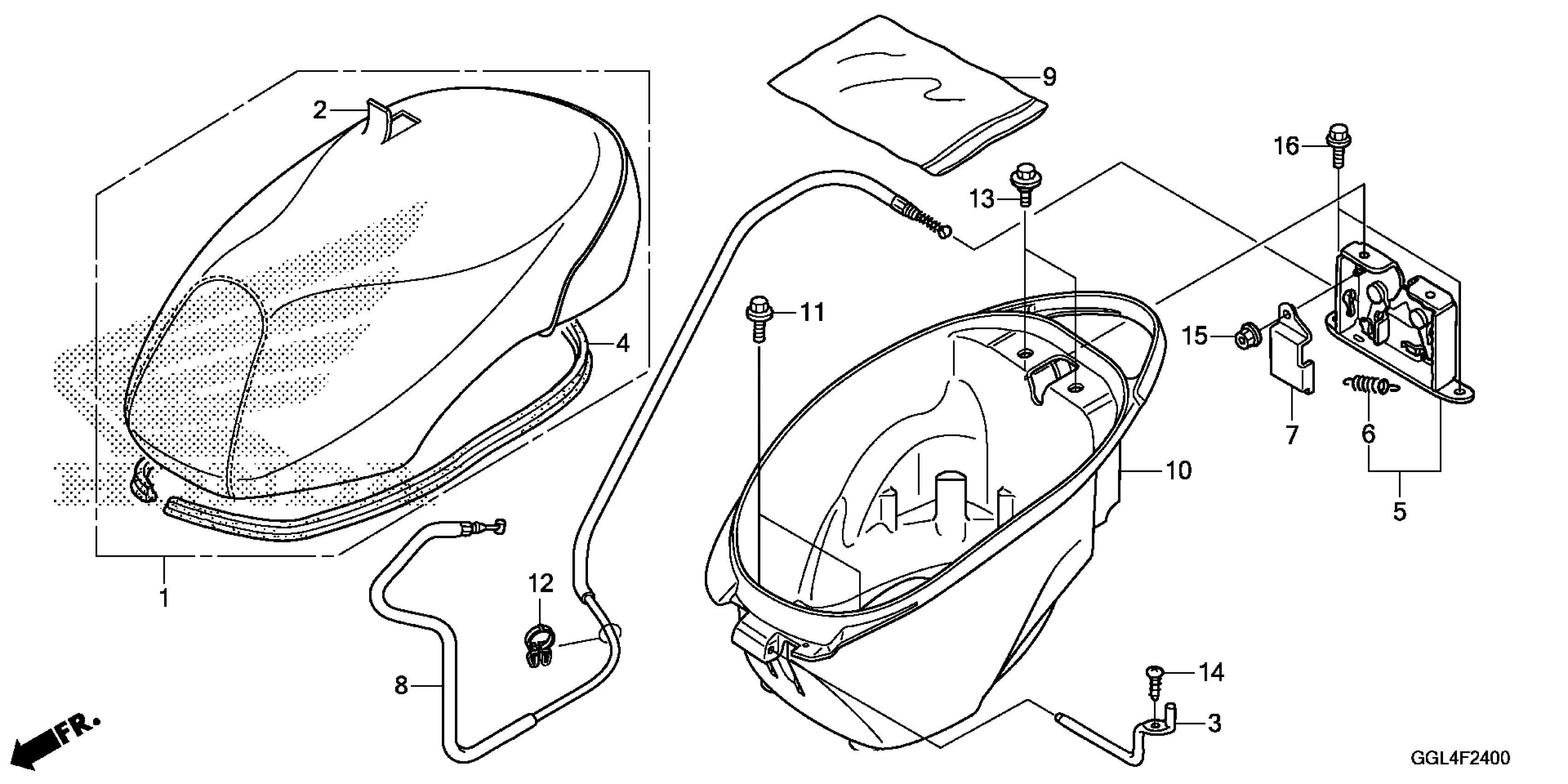

Honda NCH502AC (13) METROPOLITAN, CHN, VIN# LALAF700-D3003343 TO LALAF700-D3099999 SEAT@LUGGAGE BOX Diagram

Description

Price

SEAT, SINGLE (TYPE1)

77100-GGL-J10ZA

Unavailable

LEATHER, SEAT (TYPE1)

77101-GGL-J10ZA

$107.33

PIN, SEAT HINGE

77113-GFC-901

$5.13

RUBBER, SEAL

77115-GFC-770

$10.56

CATCH, SEAT

77235-GFC-900

$29.15

SPRING, SEAT CATCH

77236-GET-000

$5.89

GUARD, SEAT CATCH

77238-GFC-900

$3.79

CABLE, SEAT LOCK

77241-GFC-770

$29.20

BAG, SERVICE BOOK

77251-GR1-000

$4.30

BOX, LUGGAGE

81250-GFC-770

$45.00

BOLT, FLANGE (6X12)

90101-GCH-000

$1.49

CLIP, HARNESS

90112-GFC-J31

$1.95

BOLT, SPECIAL (6MM)

90653-GFC-900

$2.25

SCREW, TAPPING (4X12)

93903-34380

$2.18

NUT, FLANGE (6MM)

94050-06080

$1.49

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62
