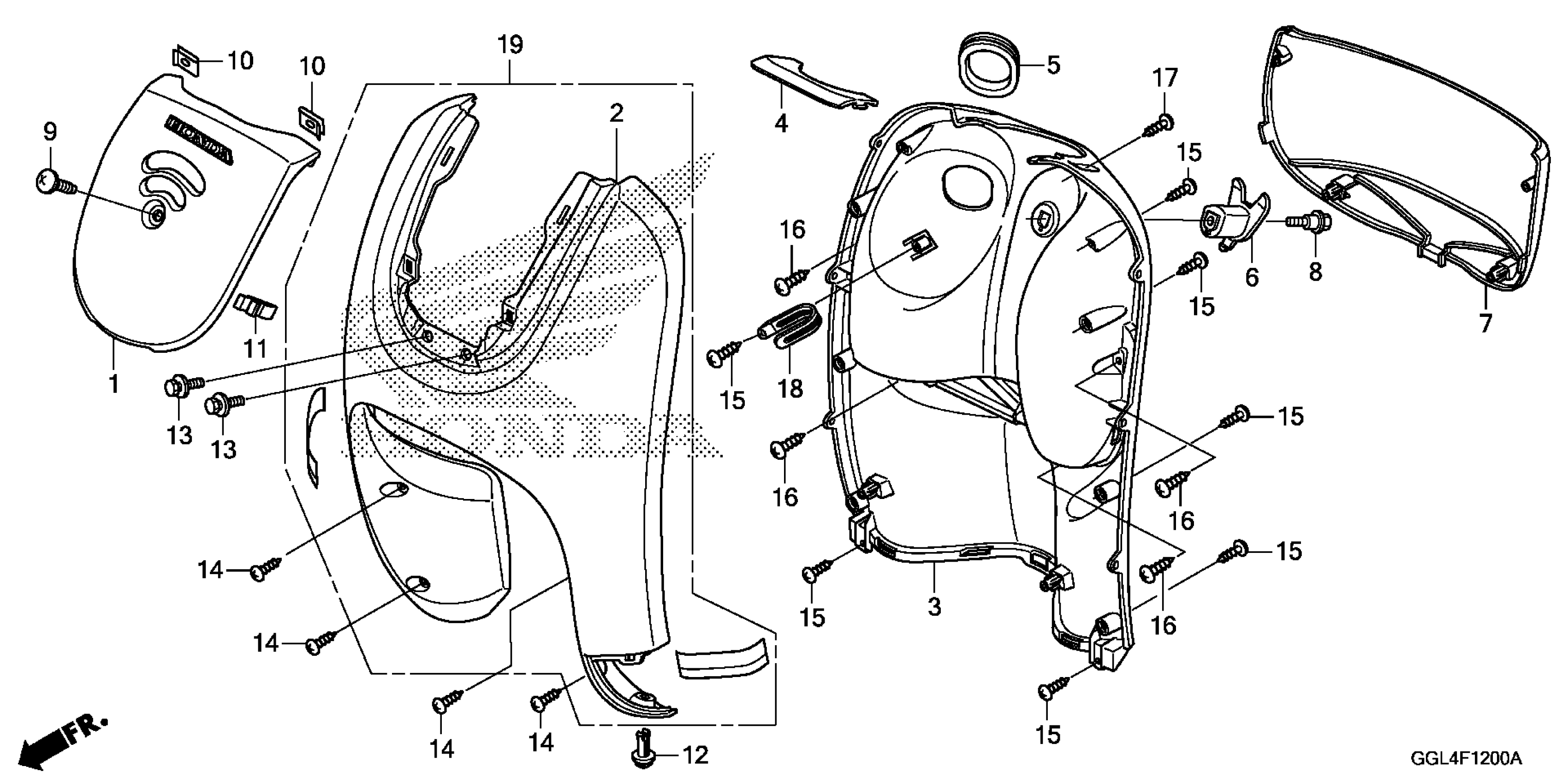

Honda NCH502AC (13) METROPOLITAN, CHN, VIN# LALAF700-D3003343 TO LALAF700-D3099999 FRONT COVER Diagram

COVER SET, FR. TOP (TYPE1) (WL)

64300-GGL-A10ZA

$77.50

COVER (INNER) *NH1* (BLACK)

81131-GGL-J00ZA

$233.01

COVER (UPPER) (INNER) *NH1* (BLACK)

81132-GGL-J00ZA

$6.35

COVER, COMBINATION & LOCK SWITCH

81133-GFH-920

$6.07

HOOK, LUGGAGE *NH1* (BLACK)

81134-GGL-J00ZA

$4.22

COVER, RACK (INNER) *NH1* (BLACK)

81141-GGL-J00ZA

$39.22

BOLT, SPECIAL (6MM)

90107-GGL-J00

$1.88

SCREW, SPECIAL (6X14)

90110-GAH-000

$2.54

NUT, SPRING (4MM)

90303-GGL-J01

$2.51

CLIP, SNAP FITTING (PO)(NATURAL)

90666-SDA-A01

$0.76

CLIP, TRIM

90683-GFC-T11

$2.13

BOLT-WASHER (6X16)

93404-06016-08

$1.63

SCREW, TAPPING (4X16)

93903-34420

$0.82

SCREW, TAPPING (4X16)

93903-34480

$0.90

SCREW, TAPPING (5X16)

93903-35320

$0.82

SCREW, TAPPING (4X16)

93903-44480

$0.90

CLIP (4X100)

94591-41000

$4.01

COVER SET, FR. (TYPE2) (WL)

64330-GGL-J10ZA

$177.97
