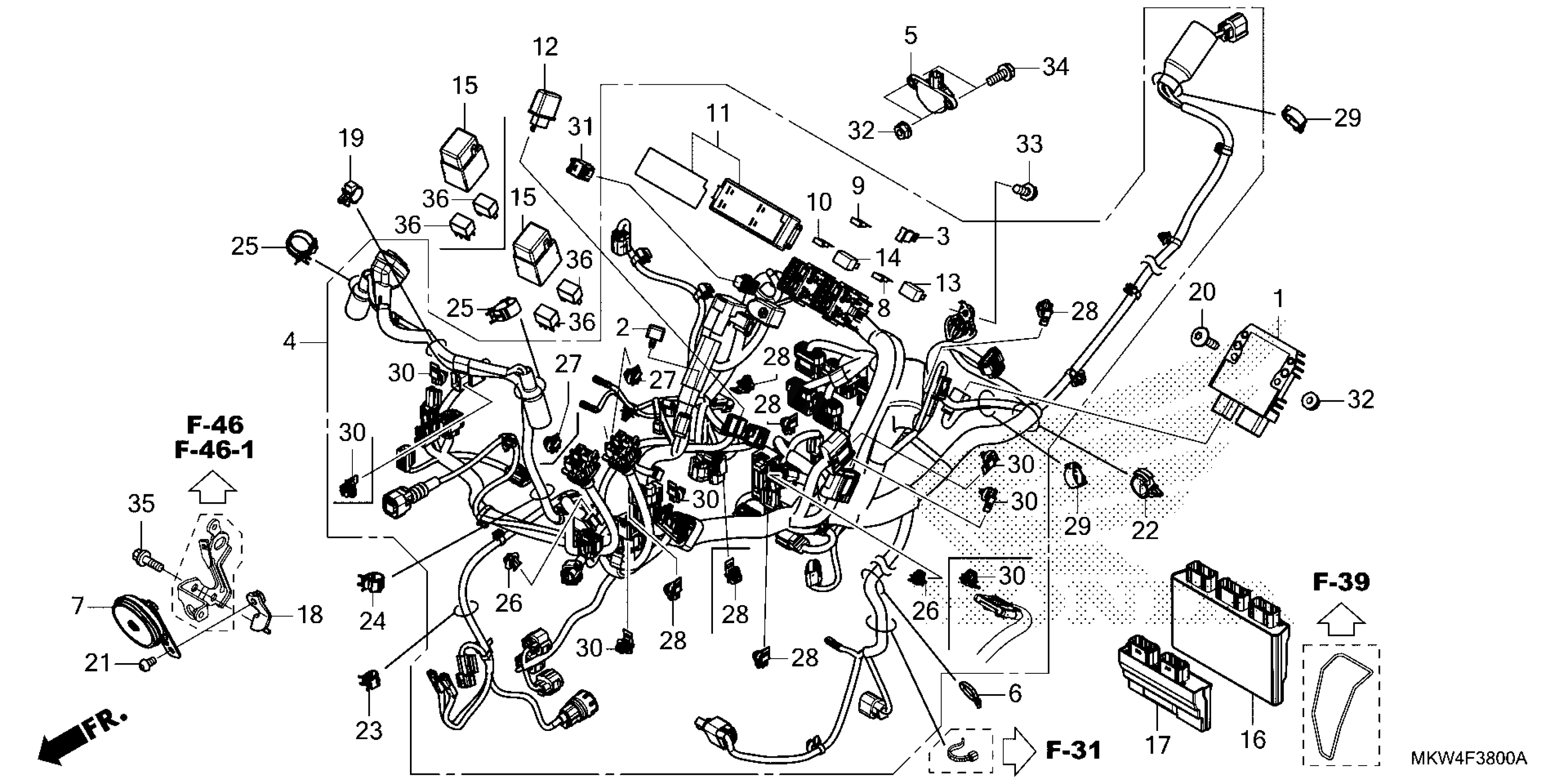

Honda NC750XDAC (24) MOTORCYCLE, JPN, VIN# JH2RH091-RK300001 TO JH2RH091-RK399999 WIRE HARNESS Diagram

#

Description
Price

1

RECTIFIER ASSY., REGULATOR

31600-K1B-T01

$317.53

2

RECTIFIER, SILICON

31700-MM8-610

$23.09

3

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.92

4

WIRE HARNESS

32100-MKW-A10

$961.84

5

SENSOR ASSY., BANK ANGLE

35160-MGS-D31

$138.63

6

BAND (BLACK 3.5X140)

35701-MG9-950

$1.84

7

HORN (HIGH)

38110-MEE-013

$32.69

8

FUSE, BLADE (10A)

38221-SNA-A41

$2.96

9

FUSE, BLADE (15A)

38221-SNA-A51

$3.44

10

FUSE, BLADE (30A)

38221-SNA-A81

$2.24

11

COVER (UPPER)

38255-MKW-D10

$9.57

12

RELAY, TURN SIGNAL

38301-KZZ-J01

$52.56

13

RELAY (MICRO ISO 4P)

38501-MKP-DN1

Unavailable

14

RELAY (MICRO ISO 4P)

38501-MKP-DN1

Unavailable

15

COVER, RELAY (2P)

38506-KZZ-900

$3.34

16

UNIT COMP

38770-MKW-A91

$1,274.24

17

UNIT COMP, PGM-DCT

38780-MKW-A91

$584.18

18

STAY, HORN

50311-MGS-D31

$6.34

19

CLIP, RETURN HOSE

53781-SE0-952

$7.00

20

BOLT, SPECIAL (6X22)

90085-KFB-000

$3.26

21

BOLT, SOCKET (8X16)

90128-MGS-D30

$2.66

22

CLAMP, HARNESS

90652-HC4-003

$5.68

23

CLIP, CABLE (8MM)

90690-GHB-631

$2.01

24

CLIP, CABLE (15MM)

90690-GHB-651

$2.01

25

CLIP, CABLE (25MM)

90690-GHB-671

$2.01

26

CLIP, CONNECTOR (BLACK)

91533-MGS-D30

$1.24

27

CLIP, CONNECTOR (DARK BLUE)

91535-STK-003

$5.85

28

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.95

29

CLIP, WIRE HARNESS *NH1L* (BLACK)

91558-SD5-003

Unavailable

30

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.52

31

CONNECTOR, DUMMY (6P 025M)

91771-MKG-D81

$7.87

32

NUT, FLANGE (6MM)

94050-06080

$0.60

33

BOLT, FLANGE (6X14)

95701-06014-08

$1.50

34

BOLT, FLANGE (6X18)

95701-06018-08

$1.50

35

BOLT, FLANGE (8X25)

95701-08025-08

$0.68

36

RELAY, POWER (MICRO ISO 4P)

38501-MKR-D11

$12.03
