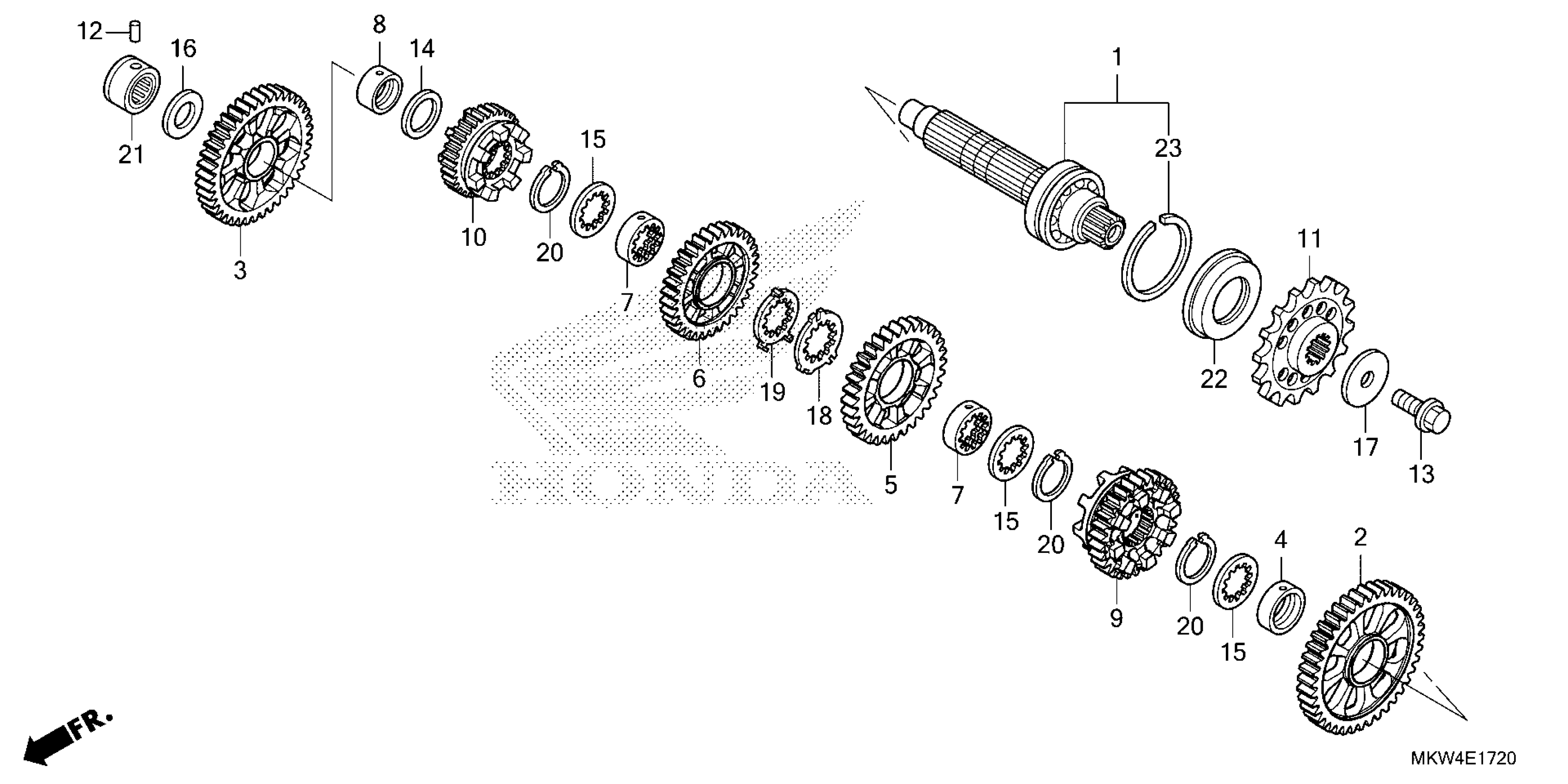

Honda NC750XDAC (24) MOTORCYCLE, JPN, VIN# JH2RH091-RK300001 TO JH2RH091-RK399999 TRANSMISSION (COUNTERSHAFT) (2) Diagram

COUNTERSHAFT

23220-MKT-D00

$231.72

GEAR, COUNTERSHAFT FIRST (40T)

23421-MKT-D00

$103.46

GEAR, COUNTERSHAFT SECOND (40T)

23441-MKT-D00

$103.46

COLLAR (28MM)

23442-ML7-000

$25.81

GEAR, COUNTERSHAFT THIRD (32T)

23461-MKT-D00

$93.75

GEAR, COUNTERSHAFT FOURTH (33T)

23481-MKT-D00

$93.75

COLLAR, SPLINE (28X31X9)

23482-MV9-670

$17.72

COLLAR (22X13)

23495-KY1-000

$19.31

GEAR, COUNTERSHAFT FIFTH (30T)

23501-MKT-D00

$106.72

GEAR, COUNTERSHAFT SIXTH (31T)

23521-MKT-D00

$106.72

SPROCKET, DRIVE (17T)

23801-MJS-J20

$59.69

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.02

BOLT, SPECIAL (10MM)

90037-422-003

$6.99

WASHER, THRUST (22X30X1)

90452-KZ4-000

$4.83

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$5.85

WASHER, THRUST (20MM)

90458-292-000

$3.38

WASHER (10.2MM)

90459-438-000

$5.57

WASHER, SPLINE (28MM)

90463-MR7-000

$9.76

WASHER, LOCK (28MM)

90464-MR7-000

$9.76

CIRCLIP (28MM)

90603-MN4-000

$3.58

BEARING, NEEDLE (20MM) (NTN)

91022-MJE-DB1

$40.38

OIL SEAL (34X62X8)

91207-KT8-003

$11.73

RING, SNAP (62MM)

94560-62200

$3.88
