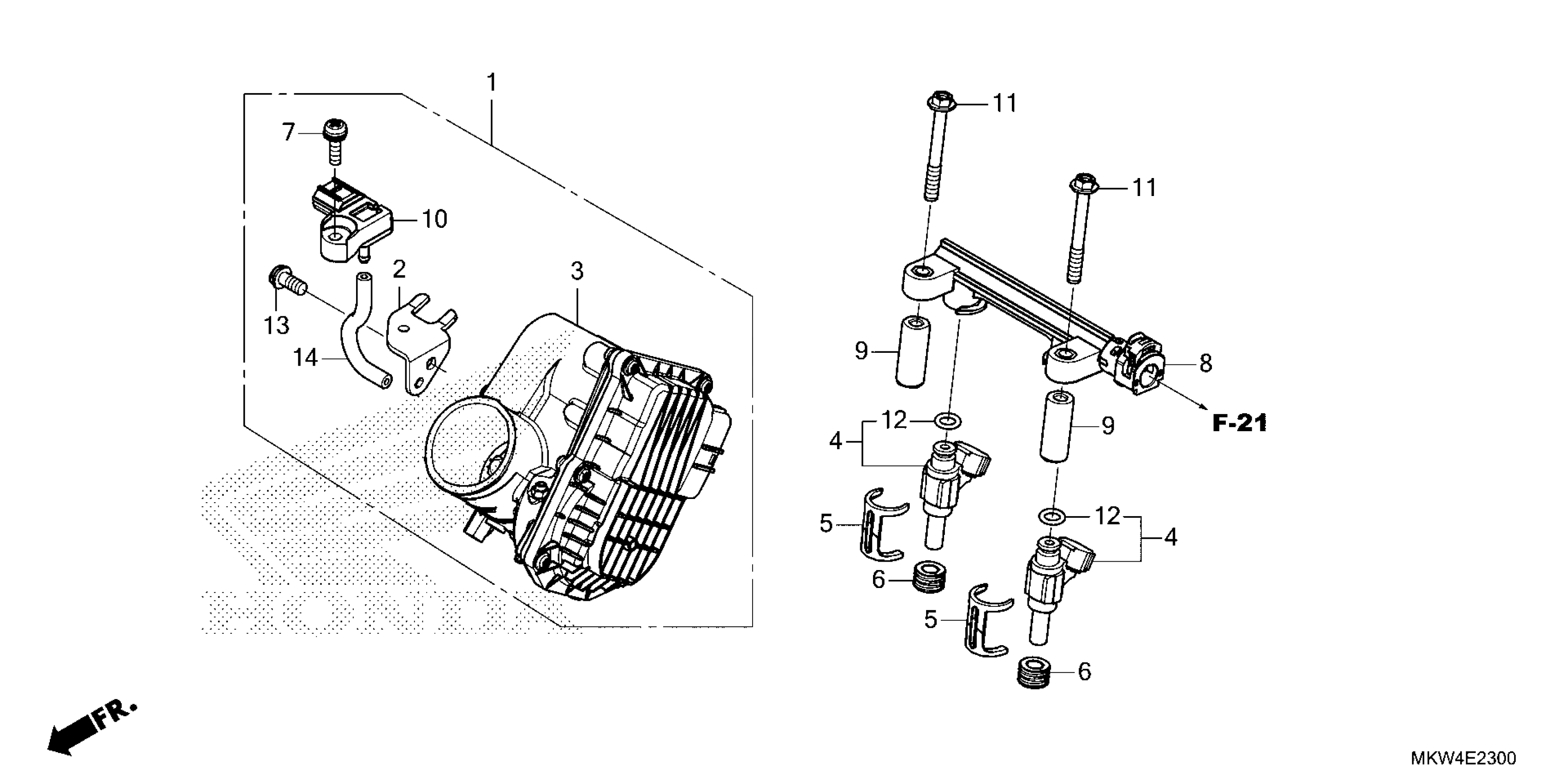

Honda NC750XDAC (24) MOTORCYCLE, JPN, VIN# JH2RH091-RK300001 TO JH2RH091-RK399999 THROTTLE BODY Diagram

BODY ASSY., THROTTLE (GNE0A A)

16400-MKT-D01

$503.49

STAY, MAP SENSOR

16402-MKT-D01

$6.07

BODY SET

16410-MKT-D01

$362.87

INJECTOR ASSY., FUEL

16450-MKT-D01

$133.08

CLIP, INJECTOR

16451-MKR-D10

$3.69

SEAL RING, INJECTOR

16472-MKT-D00

$5.84

BOLT-WASHER (6X18)

16542-MEL-003

$3.31

PIPE, FUEL

16640-MKT-D01

$50.21

COLLAR, FUEL PIPE

16647-MKT-D00

$4.61

SENSOR ASSY., MAP

37830-MFP-A51

$125.49

BOLT, FLANGE (6X50) (S-NSHF)

90028-GHB-760

$2.64

O-RING

91301-MKP-T01

$12.84

SCREW-WASHER (6X14)

93892-06014-18

$1.49

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67
