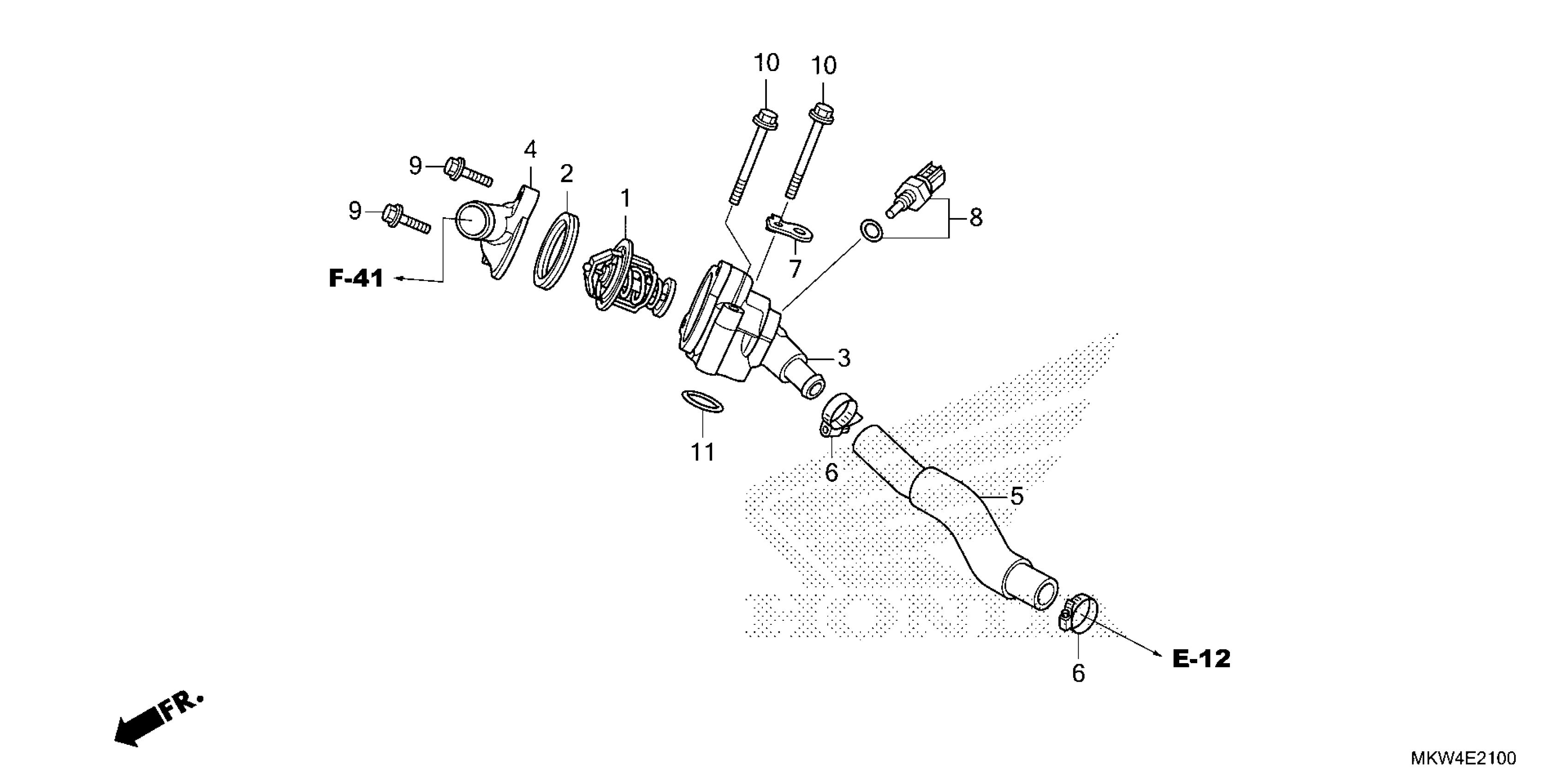

Honda NC750XDAC (24) MOTORCYCLE, JPN, VIN# JH2RH091-RK300001 TO JH2RH091-RK399999 THERMOSTAT Diagram

THERMOSTAT ASSY.

19300-MCJ-003

$47.67

RUBBER, THERMOSTAT

19305-KV3-010

$5.80

CASE, THERMOSTAT

19310-MGS-D30

$85.12

COVER, THERMOSTAT

19316-MGS-D30

$24.47

HOSE, WATER BYPASS

19322-MGS-D30

$14.72

CLAMP, WATER HOSE (25MM)

19504-KY1-003

$9.48

STAY, HARNESS

32150-MGS-D20

$3.00

SENSOR ASSY., WATER TEMPERATURE

37870-MGS-D31

$45.73

BOLT, FLANGE (6X22) (S-NSHF)

90028-GHB-670

$2.16

BOLT, FLANGE (6X55) (S-NSHF)

90028-GHB-770

$1.68

O-RING (29.7X2.4) (NOK) This part replaces 91356-425-003.

91356-425-005

$2.80

O-RING (29.7X2.4) (NOK)

91356-425-005

$2.80
