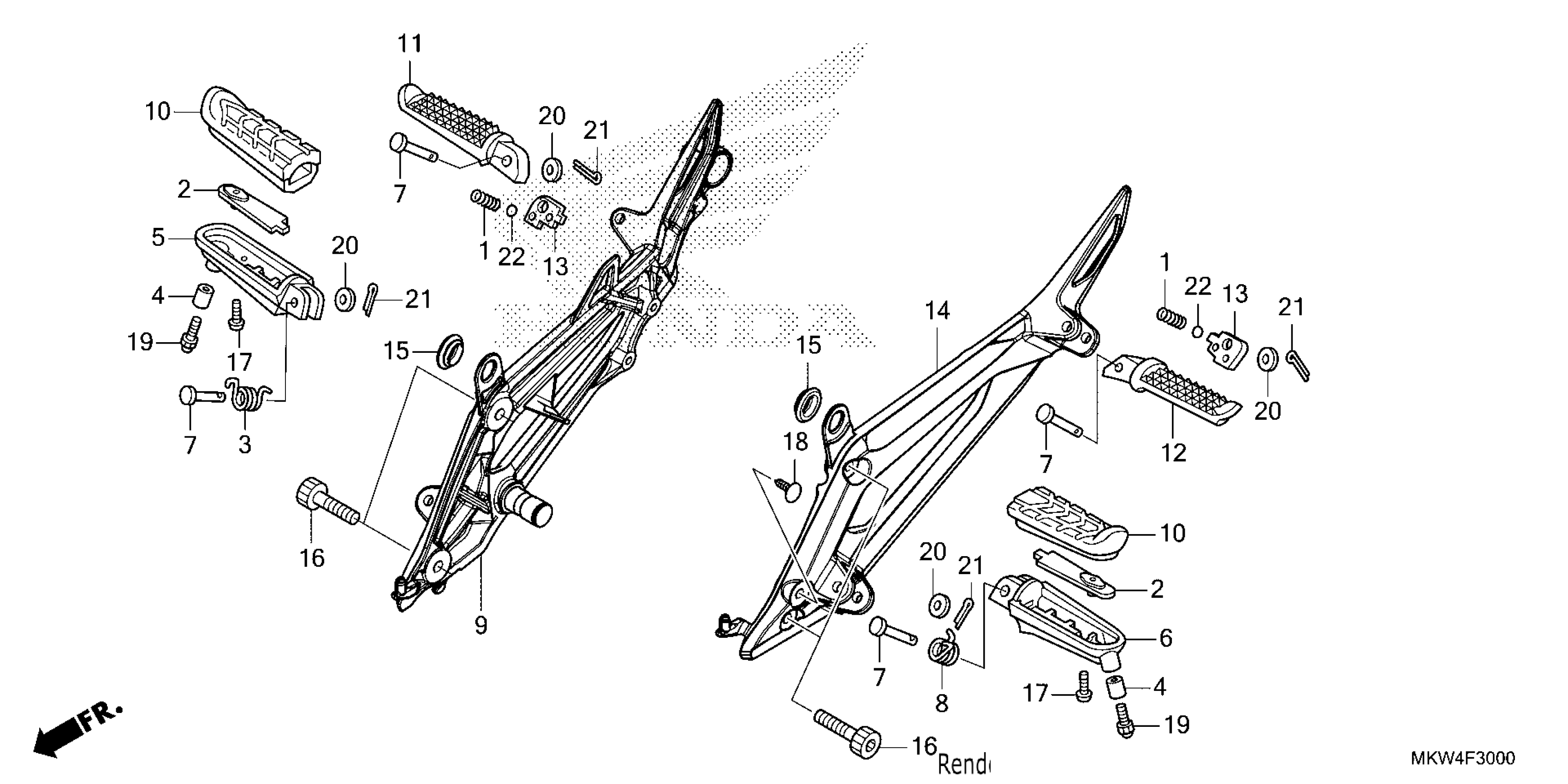

Honda NC750XDAC (24) MOTORCYCLE, JPN, VIN# JH2RH091-RK300001 TO JH2RH091-RK399999 STEP Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.92

2

PLATE, STEP SETTING

50609-MBW-000

$5.44

3

SPRING, R. STEP RETURN (L. SIDE)

50617-445-840

$5.44

4

COLLAR (6X6.5)

50631-MGS-D30

$1.89

5

ARM, R. MAIN STEP (COO) This part replaces 50635-MGS-D30.

50635-MGS-305

$63.03

5

ARM, R. MAIN STEP (COO)

50635-MGS-305

$63.03

6

ARM, L. MAIN STEP (COO) This part replaces 50636-MGS-D30.

50636-MGS-305

$62.98

6

ARM, L. MAIN STEP (COO)

50636-MGS-305

$62.98

7

PIN, STEP BAR

50639-MFL-D20

$2.92

8

SPRING, L. STEP RETURN (R. SIDE)

50644-445-840

$5.44

9

HOLDER, R. STEP *NHB38M* (MAT ALTAIR SILVER METALLIC)

50650-MKW-D00ZA

$291.00

10

RUBBER, MAIN STEP (COO) This part replaces 50661-MBW-000.

50661-MJM-305

$8.80

11

ARM, R. PILLION STEP (COO) This part replaces 50711-MGS-D30.

50711-MGS-305

$66.26

11

ARM, R. PILLION STEP (COO)

50711-MGS-305

$66.26

12

ARM, L. PILLION STEP (COO) This part replaces 50712-MGS-D30.

50712-MGS-305

$62.47

12

ARM, L. PILLION STEP (COO)

50712-MGS-305

$62.47

13

PLATE, PILLION STEP CLICK

50718-MN8-000

$2.48

14

HOLDER, L. STEP *NHB38M* (MAT ALTAIR SILVER METALLIC)

50750-MKW-D00ZA

$291.00

15

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

16

BOLT, SOCKET (8X34)

90112-MBR-J10

$3.10

17

BOLT, SPECIAL (5X14)

90118-MBW-000

$3.04

18

CLIP, BRUSH

90656-MGH-641

$2.23

19

BOLT, CAP (6X16)

92501-06016-0A

$2.91

20

WASHER, PLAIN (8MM)

94102-08000

$1.49

21

PIN, COTTER (2.0X15)

94201-20150

$1.49

22

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
