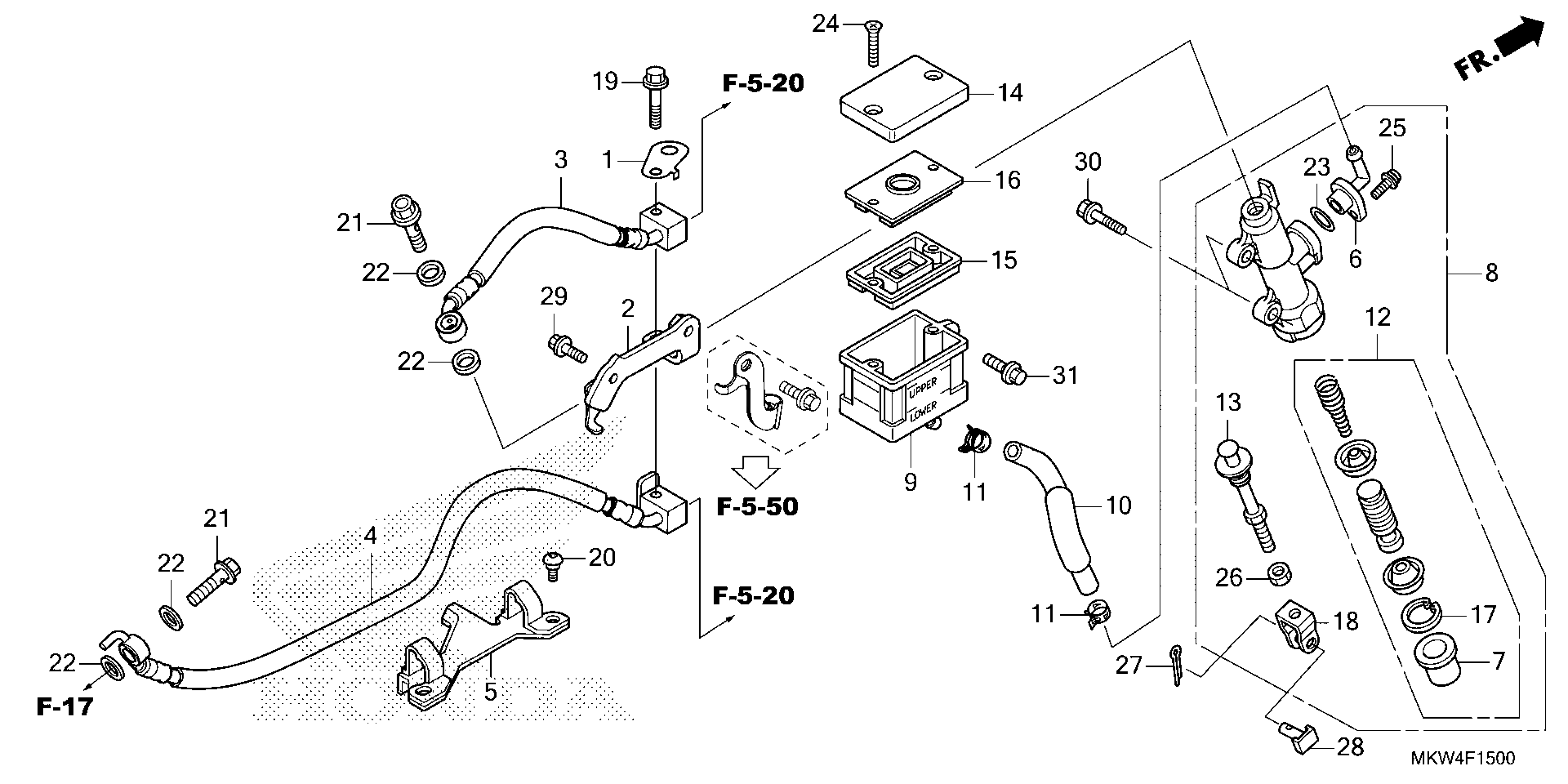

Honda NC750XDAC (24) MOTORCYCLE, JPN, VIN# JH2RH091-RK300001 TO JH2RH091-RK399999 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

CLAMP, SENSOR WIRE

38514-MGS-D80

$3.98

2

STAY, RR. BRAKE HOSE

43160-MKW-D10

$13.00

3

HOSE A, RR. BRAKE

43310-MKW-D01

$29.30

4

HOSE E, RR. BRAKE

43314-MGS-D81

$70.38

5

GUIDE, RR. BRAKE HOSE

43468-MGS-D31

$16.59

6

CONNECTOR, MASTER CYLINDER

43503-MER-D01

$7.74

7

BOOT

43504-MB2-006

$10.04

8

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)

43510-MKW-D01

$165.26

9

CUP, OIL

43511-KV3-831

$23.70

10

HOSE, RR. BRAKE MASTER CYLINDER

43512-MKW-D01

$15.13

11

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

12

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MB2-315

$46.51

13

ROD, PUSH

43530-MS8-006

$22.79

14

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$4.28

14

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$4.28

15

DIAPHRAGM

45520-MG7-006

$10.61

16

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

17

CIRCLIP

46182-MEL-D21

$1.93

18

JOINT, BRAKE ROD

46504-MT8-006

$9.05

19

BOLT, FLANGE (6X35)

90013-GHB-700

$2.23

20

SCREW, SPECIAL (5X14)

90102-MKA-D80

$2.90

21

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

22

WASHER, OIL BOLT

90545-300-000

$3.99

23

O-RING (14.8X2.4)

91212-422-006

$2.56

24

SCREW, FLAT (4X40)

93600-04040-1G

$1.49

25

SCREW-WASHER (4X12)

93893-04012-07

$1.49

25

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

26

NUT, HEX. (8MM)

94002-08000-0S

$1.49

27

PIN, COTTER (2.0X15)

94201-20150

$1.49

28

PIN D, JOINT

95015-54000

$4.24

29

BOLT, FLANGE (6X14)

95701-06014-07

$1.49

30

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

31

BOLT, FLANGE (6X14)

96001-06014-00

$1.72
