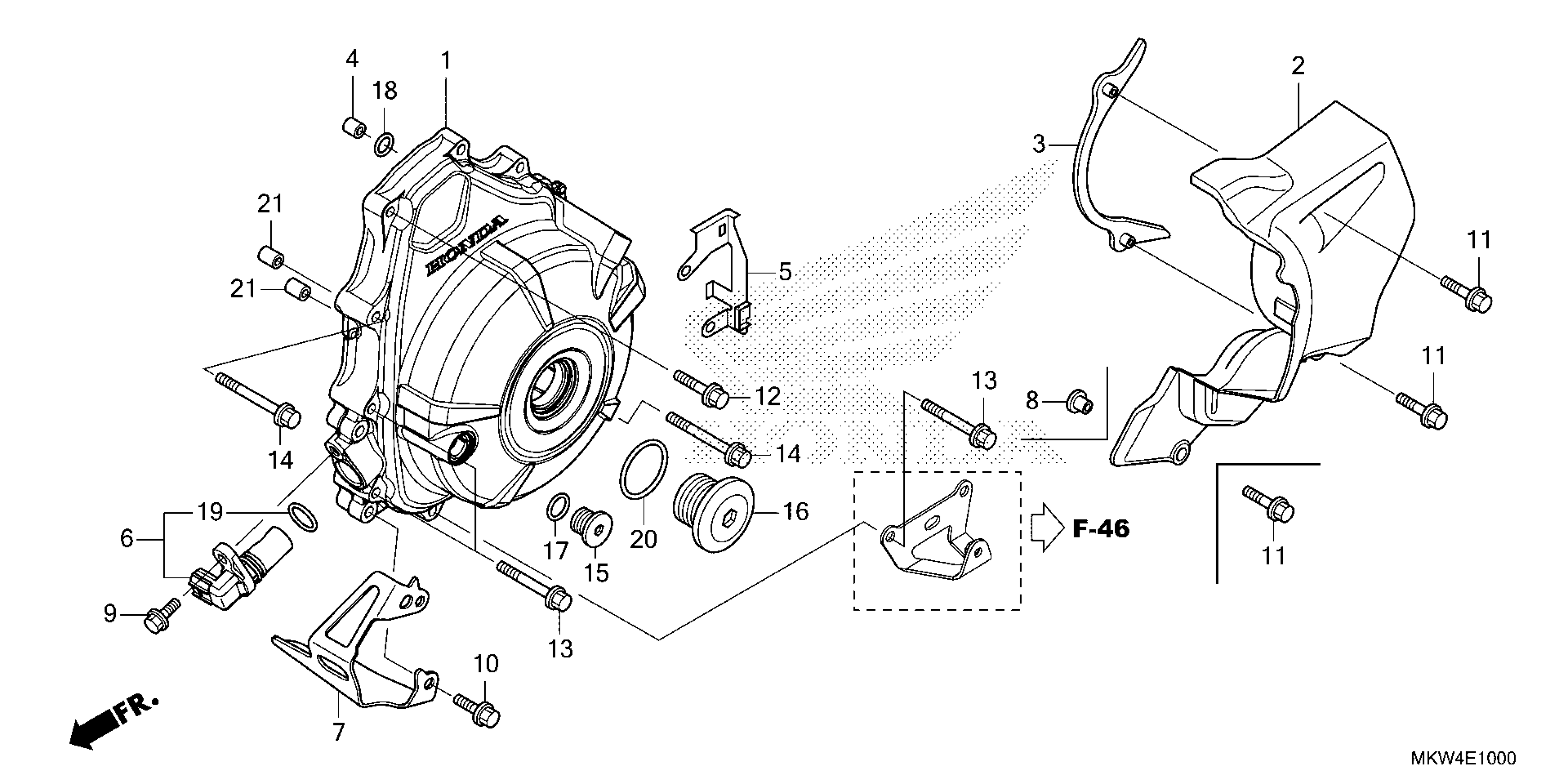

Honda NC750XDAC (24) MOTORCYCLE, JPN, VIN# JH2RH091-RK300001 TO JH2RH091-RK399999 ALTERNATOR COVER Diagram

COVER, ALTERNATOR

11320-MKW-D00

$185.19

COVER, L. RR.

11351-MGS-D50

$68.56

PLATE

11355-MJL-D30

$26.62

ORIFICE (0.8MM)

15516-MGS-D30

$5.62

GUIDE, L. RR. COVER

32153-MGS-D30

$4.99

SENSOR ASSY., CRANK

37500-MKT-D02

$49.81

BOLT, FLANGE (6X18)

90026-GHB-650

$2.06

BOLT, FLANGE (6X25) (S-NSHF)

90028-GHB-680

$1.01

BOLT, FLANGE (6X28) (S-NSHF)

90028-GHB-690

$1.01

BOLT, FLANGE (6X40) (S-NSHF)

90028-GHB-740

$2.16

BOLT, FLANGE (6X45) (S-NSHF)

90028-GHB-750

$2.34

CAP (14MM)

90084-MN8-010

$11.76

CAP (30MM)

90087-MR1-000

$18.27

O-RING (13.8X2.5)

91303-377-000

$3.26

SEAL, PLUG (11.5X7) O-RING (4.9X1.9) O-RING (7.8X2.2)

91301-PC9-003

$2.80

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.80

O-RING (7.7X2.3) (ARAI) This part replaces 91313-393-003.

91301-PC9-003

$2.80

O-RING

91333-PNC-006

$3.04

O-RING (29X2.4) (NOK)

91344-PC9-004

$3.36

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.62
