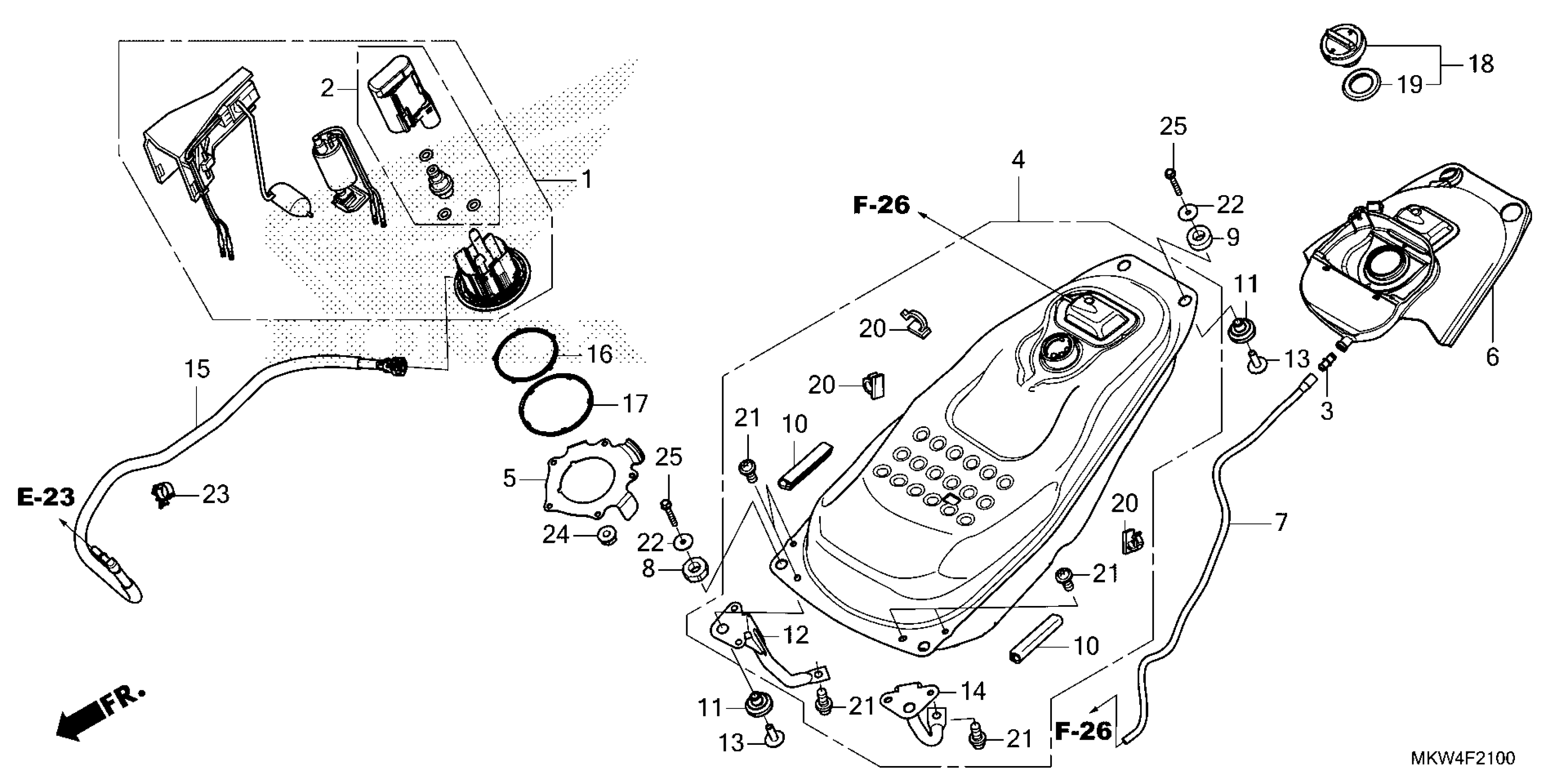

Honda NC750XDAC (23) MOTORCYCLE, JPN, VIN# JH2RH091-PK200001 TO JH2RH091-PK299999 FUEL TANK@FUEL PUMP Diagram

PUMP UNIT ASSY., FUEL (MSDS)

16700-MKW-D01

$662.18

FILTER ASSY., FUEL

16730-MKT-D01

$42.30

JOINT, BREATHER TUBE

17359-419-670

$1.95

TANK ASSY., FUEL

17500-MKW-D00

$807.77

PLATE, FUEL PUMP SETTING

17506-MKT-D00

$18.61

TRAY, FUEL TANK

17507-MKW-D00

$27.67

TUBE, DRAIN

17508-MKW-D00

$6.57

RUBBER, FR. FUEL TANK MOUNTTING (UPPER)

17513-MKW-D00

$2.11

RUBBER, RR. FUEL TANK MOUNTING (UPPER)

17514-MKW-D00

$2.11

TRIM, FUEL TANK

17516-MEE-D00

$3.03

RUBBER, FUEL TANK MOUNTING (LOWER)

17517-MGS-D30

$3.90

BRACKET, R. FUEL TANK

17517-MKW-D00

$15.38

COLLAR, FUEL TANK

17518-MGS-D30

$2.90

BRACKET, L. FUEL TANK

17518-MKW-D00

$15.38

HOSE, FUEL FEED

17526-MKW-D01

$176.23

GASKET, FUEL PUMP

17572-MKT-D00

$20.49

DUST SEAL

17573-MKT-D00

$6.80

CAP, FUEL FILLER

17620-KFR-841

$39.95

GASKET, FUEL FILLER CAP

17632-383-832

$7.79

CLIP, HARNESS

83705-MZ7-300

$7.18

BOLT-WASHER, TORX (6X12)

90062-RGH-A00

$3.11

WASHER (6.5X25X1.5)

90404-680-000

$4.07

CLAMP, TUBE (D18)

90651-HL3-G01

$2.48

NUT, FLANGE (6MM)

94050-06080

$1.49

BOLT, FLANGE (6X40)

95701-06040-08

$1.80
