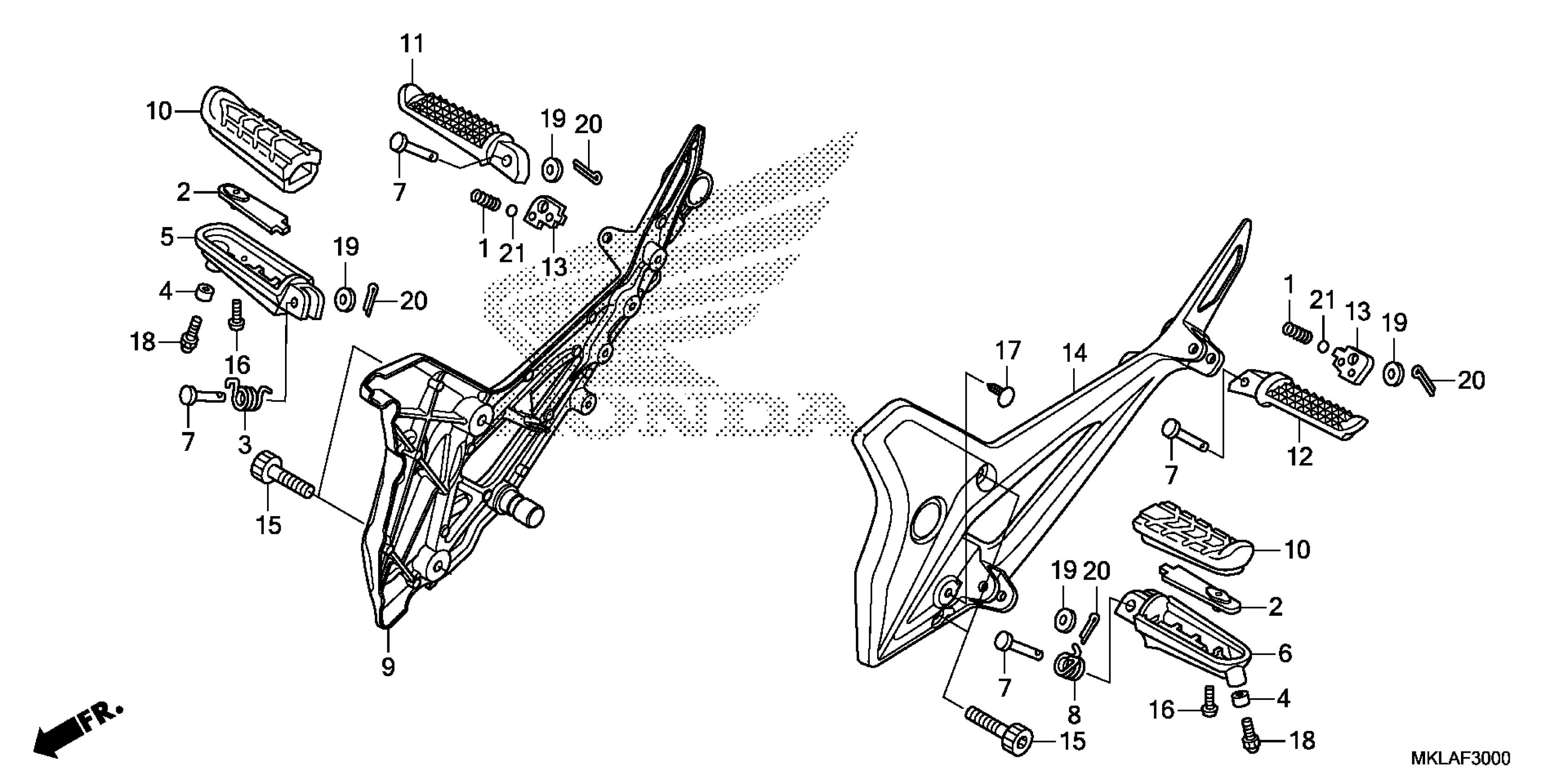

Honda NC750XDAC (20) MOTORCYCLE, JPN, VIN# JH2RC905-LK200001 STEP Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

2

PLATE, STEP SETTING

50609-MBW-000

$5.20

3

SPRING, R. STEP RETURN (L. SIDE)

50617-445-840

$5.20

4

COLLAR (6X6.5)

50631-MGS-D30

$1.74

5

ARM, R. MAIN STEP (COO) This part replaces 50635-MGS-D30.

50635-MGS-305

$56.54

5

ARM, R. MAIN STEP (COO)

50635-MGS-305

$56.54

6

ARM, L. MAIN STEP (COO) This part replaces 50636-MGS-D30.

50636-MGS-305

$56.50

6

ARM, L. MAIN STEP (COO)

50636-MGS-305

$56.50

7

PIN, STEP BAR

50639-MFL-D20

$2.80

8

SPRING, L. STEP RETURN (R. SIDE)

50644-445-840

$5.20

9

HOLDER, R. STEP *NH146M* (ACCURATE SILVER METALLIC)

50650-MGS-D31ZA

$336.50

10

RUBBER, MAIN STEP (COO) This part replaces 50661-MBW-000.

50661-MJM-305

$8.13

10

RUBBER, MAIN STEP (COO)

50661-MJM-305

$8.13

11

ARM, R. PILLION STEP (COO) This part replaces 50711-MGS-D30.

50711-MGS-305

$59.44

11

ARM, R. PILLION STEP (COO)

50711-MGS-305

$59.44

12

ARM, L. PILLION STEP (COO) This part replaces 50712-MGS-D30.

50712-MGS-305

$55.68

12

ARM, L. PILLION STEP (COO)

50712-MGS-305

$55.68

13

PLATE, PILLION STEP CLICK

50718-MN8-000

$2.29

14

HOLDER, L. STEP *NH146M* (ACCURATE SILVER METALLIC)

50750-MGS-D30ZA

$321.99

15

BOLT, SOCKET (8X34)

90112-MBR-J10

$2.87

16

BOLT, SPECIAL (5X14)

90118-MBW-000

$3.09

17

CLIP, BRUSH

90656-MGH-641

$2.06

18

BOLT, CAP (6X16)

92501-06016-0A

$3.62

19

WASHER, PLAIN (8MM)

94102-08000

$0.87

20

PIN, COTTER (2.0X15)

94201-20150

$1.04

21

BALL, STEEL (#8) (1/4)

96211-08000

Unavailable
