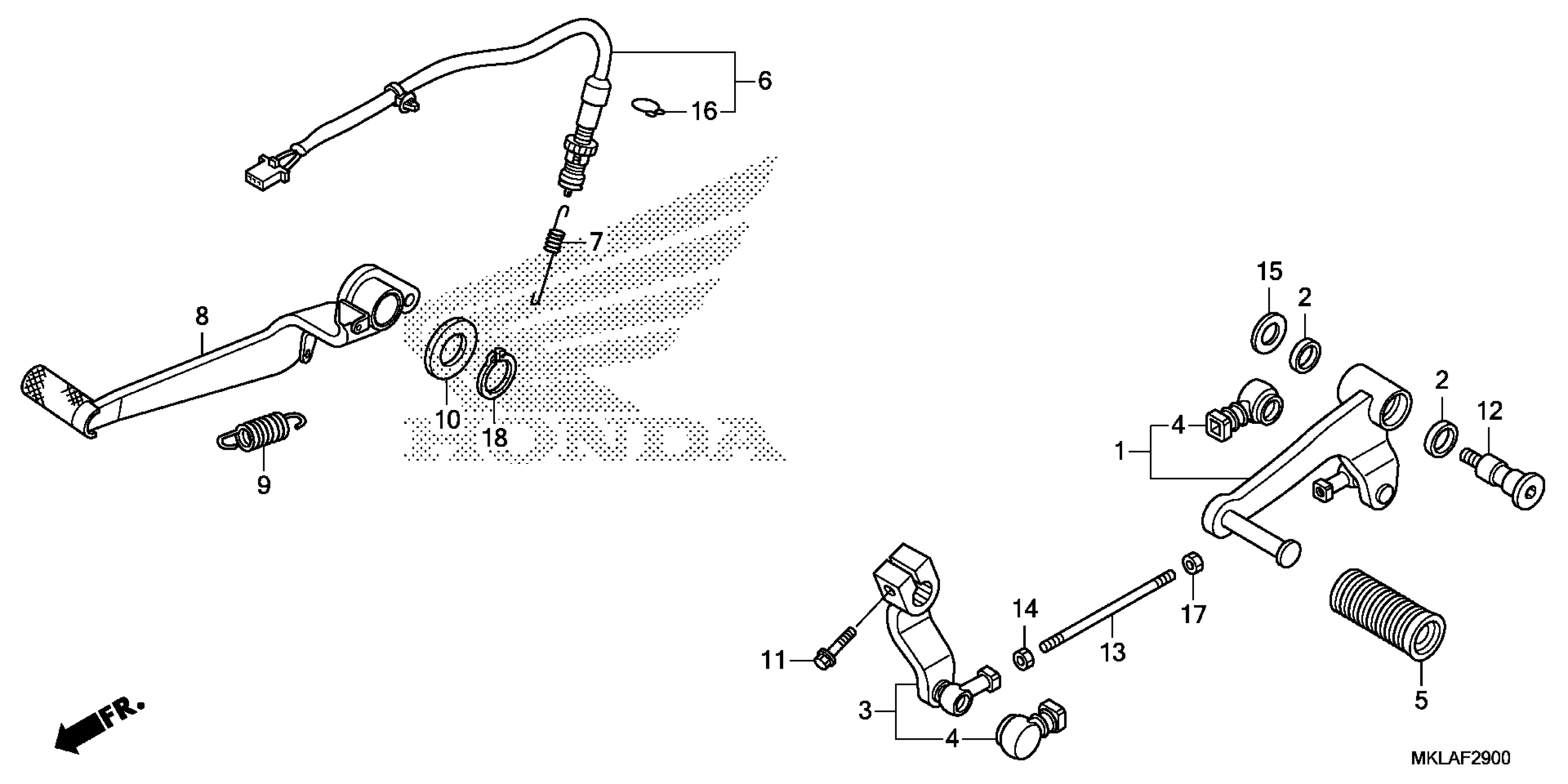

Honda NC750XDAC (20) MOTORCYCLE, JPN, VIN# JH2RC905-LK200001 PEDAL Diagram

#

Description

Price

6

SWITCH ASSY., RR. STOP

35350-MGS-D32

$24.97

7

SPRING, STOP SWITCH

35357-MGS-D30

$4.14

8

PEDAL, BRAKE (COO) This part replaces 46500-MGS-D30.

46500-MGS-305

$100.22

9

SPRING, BRAKE PEDAL

46511-MV9-000

$9.04

10

PLATE, PILLION STEP SIDE

50715-KE8-000

$3.90

16

CLIP, SWITCH COVER

90601-KAF-003

$2.43

18

CIRCLIP (OUTER) (19MM)

94511-19000

$0.86
