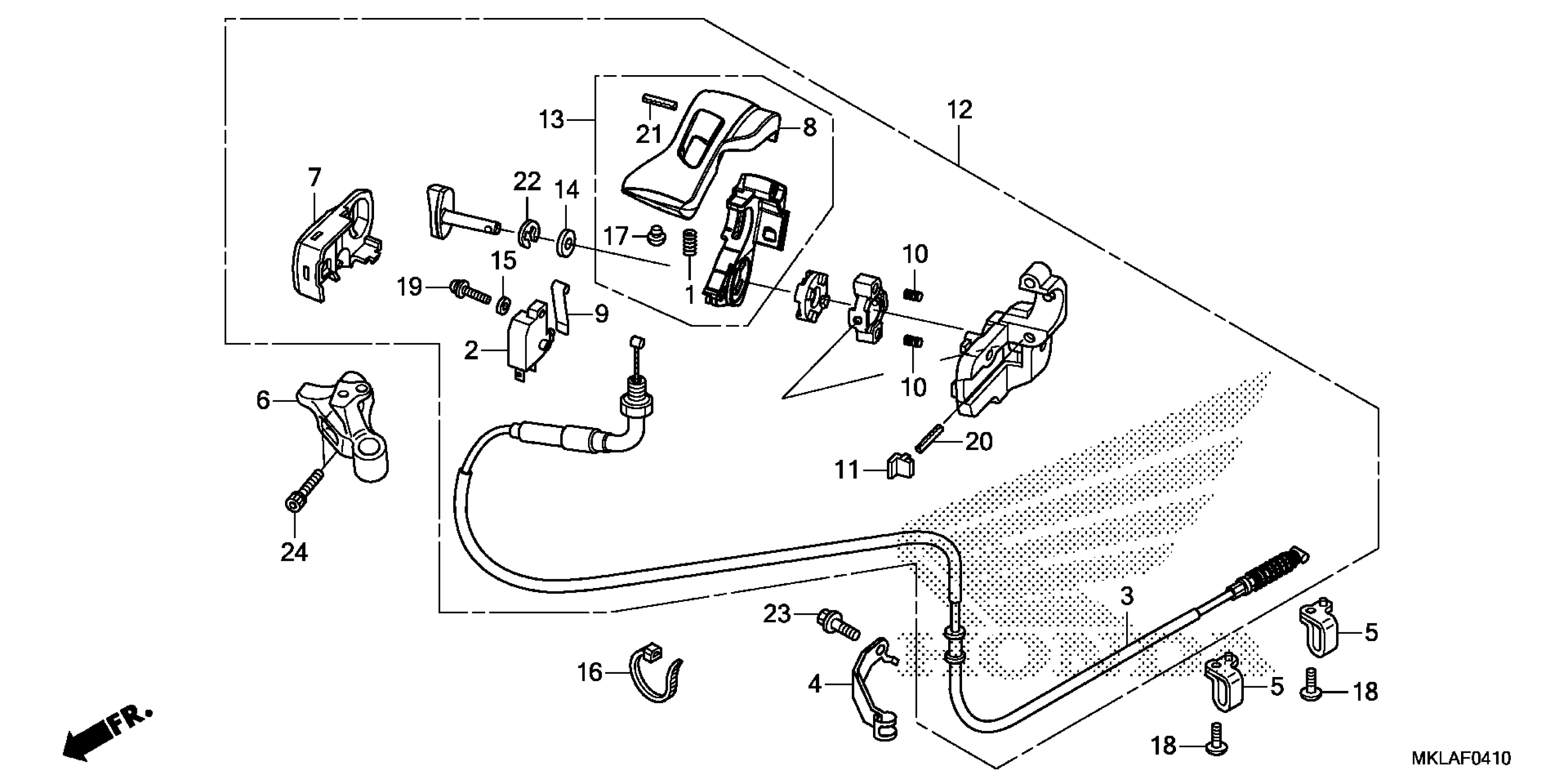

Honda NC750XDAC (20) MOTORCYCLE, JPN, VIN# JH2RC905-LK200001 PARKING BRAKE LEVER Diagram

SPRING, BALL SETTING

24271-743-000

$2.39

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

CABLE, PARKING BRAKE

43450-MGS-D51

$55.39

CLAMP, PARKING BRAKE

43455-MGS-D50

$9.26

GUIDE, PARKING BRAKE

43456-MGS-D70

$6.84

HOLDER (UPPER)

47111-MKL-D50

$56.61

COVER, HOLDER

47117-MGS-D50

$3.82

LEVER, PARKING TOP

47152-MGS-D51

$11.10

SPRING, SWITCH

47154-MGE-D00

$8.49

SPRING, PLUNGER

47155-MGE-D00

$3.62

CAP, HOLDER (LOWER)

47156-MGE-D00

$2.31

LEVER ASSY., PARKING

47200-MGS-D51

$365.20

LEVER, PARKING

47210-MGS-D51

$44.72

WASHER (10.2MM)

90401-430-000

$1.64

WASHER, PLAIN (4X8)

90515-GN5-910

$1.49

WASHER, PLAIN (4X8) This part replaces 90515-046-810.

90515-GN5-910

$1.49

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

PLUG, CHANGE REINFORCEMENT

90801-SB0-000

$3.61

SCREW, PAN (5X16) SCREW, PAN (4X20)

93500-05016-0G

$1.49

SCREW-WASHER (4X14)

93892-04014-07

$1.49

PIN, SPRING (3X22)

94305-30223

$1.49

PIN, SPRING (3X28) (NOT AVAILABLE)

94305-30283

$1.51

E-RING (9MM) (NOT AVAILABLE)

94540-09018

$3.85

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

BOLT, SOCKET (6X20)

96600-06020-07

$1.49
