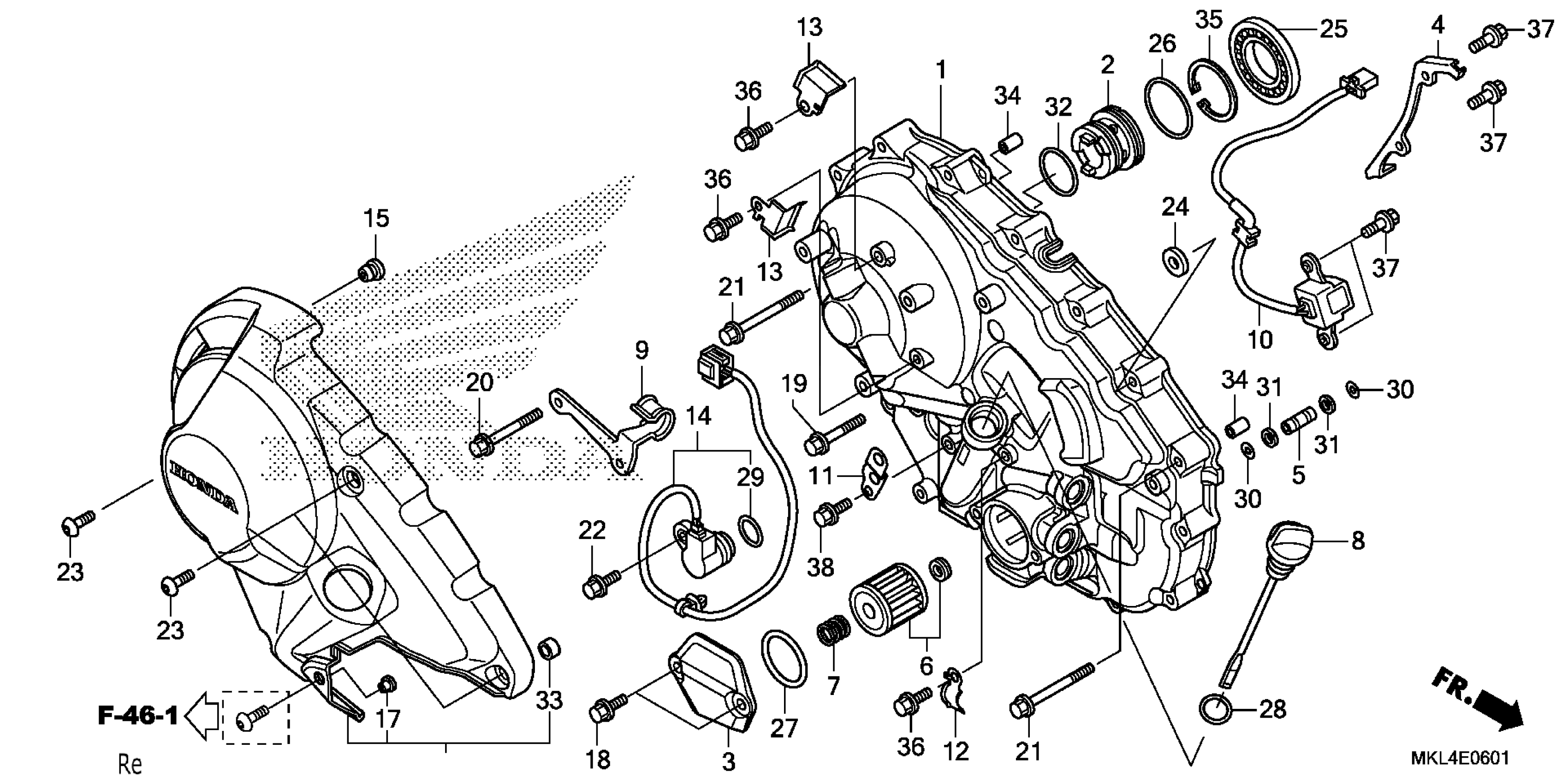

Honda NC750XDAC (19) MOTORCYCLE, JPN, VIN# JH2RC905-KK100001 RIGHT CRANKCASE COVER (2) Diagram

COVER, R. CRANKCASE

11330-MGS-D40

$336.13

COLLAR, OIL GUIDE

11332-MGS-D20

$26.43

COVER, OIL FILTER

11337-MGS-D40

$56.84

CLAMP, SOLENOID CORD

11339-MGS-D20

$9.92

PIPE, OIL PASSAGE

15104-MGS-D20

$9.77

ELEMENT, OIL FILTER

15412-MGS-D21

$8.72

SPRING, OIL FILTER

15414-MEB-670

$2.62

DIPSTICK, OIL

15650-MGS-D20

$29.49

STAY, FUEL HOSE

22821-MJL-D50

$8.21

GENERATOR ASSY., PULSE (TOYO)

30300-MGS-D21

$118.18

STAY, HARNESS CLIP (B)

32171-MGS-D20

$2.70

STAY, HARNESS

32172-MGS-D70

$2.70

STAY, HARNESS

32173-MGS-D70

$2.70

SENSOR ASSY., ANGLE

38810-MGS-D51

$240.23

PLUG, HANDLE COVER (LOWER)

53125-174-670

$1.84

COVER, R. ENGINE SIDE *NH303M* (MAT AXIS GRAY METALLIC)

64520-MGS-D50ZA

$80.66

COLLAR, FENDER SETTING

80103-MCJ-750

$2.57

BOLT, FLANGE (6X16)

90027-GHB-640

$2.26

BOLT, FLANGE (6X28)

90027-GHB-690

$2.33

BOLT, FLANGE (6X40)

90027-GHB-740

$2.72

BOLT, FLANGE (6X50)

90027-GHB-760

$3.23

BOLT, KNOCK (6MM)

90011-MGE-D00

$2.89

BOLT, SPECIAL (6X17)

90085-MCZ-000

$2.13

WASHER, SEALING (6MM)

90488-425-000

$2.28

BEARING, RADIAL BALL (40X68X7.5)

91029-MGS-D21

$21.15

O-RING (35X2.2)

91302-MGS-D20

$2.31

O-RING (39.8X2.2) (ARAI)

91302-PA9-003

$4.21

O-RING (18X3)

91307-035-000

$2.92

O-RING (16.5X2.5)

91310-MGE-D01

$4.80

O-RING (7.7X1.9)

91311-RFH-003

$2.61

RING, BACK-UP (8X11)

91315-MGS-D20

$3.34

O-RING (29X2.4) (NOK)

91344-PC9-004

$3.51

COLLAR

91502-MGS-D50

$2.72

PIN, DOWEL (8X20) (Honda Code 1417369)

94301-08200

$2.25

CIRCLIP (INNER) (40)

94520-40150

$2.02

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

BOLT, FLANGE (6X14)

96001-06014-00

$1.72
