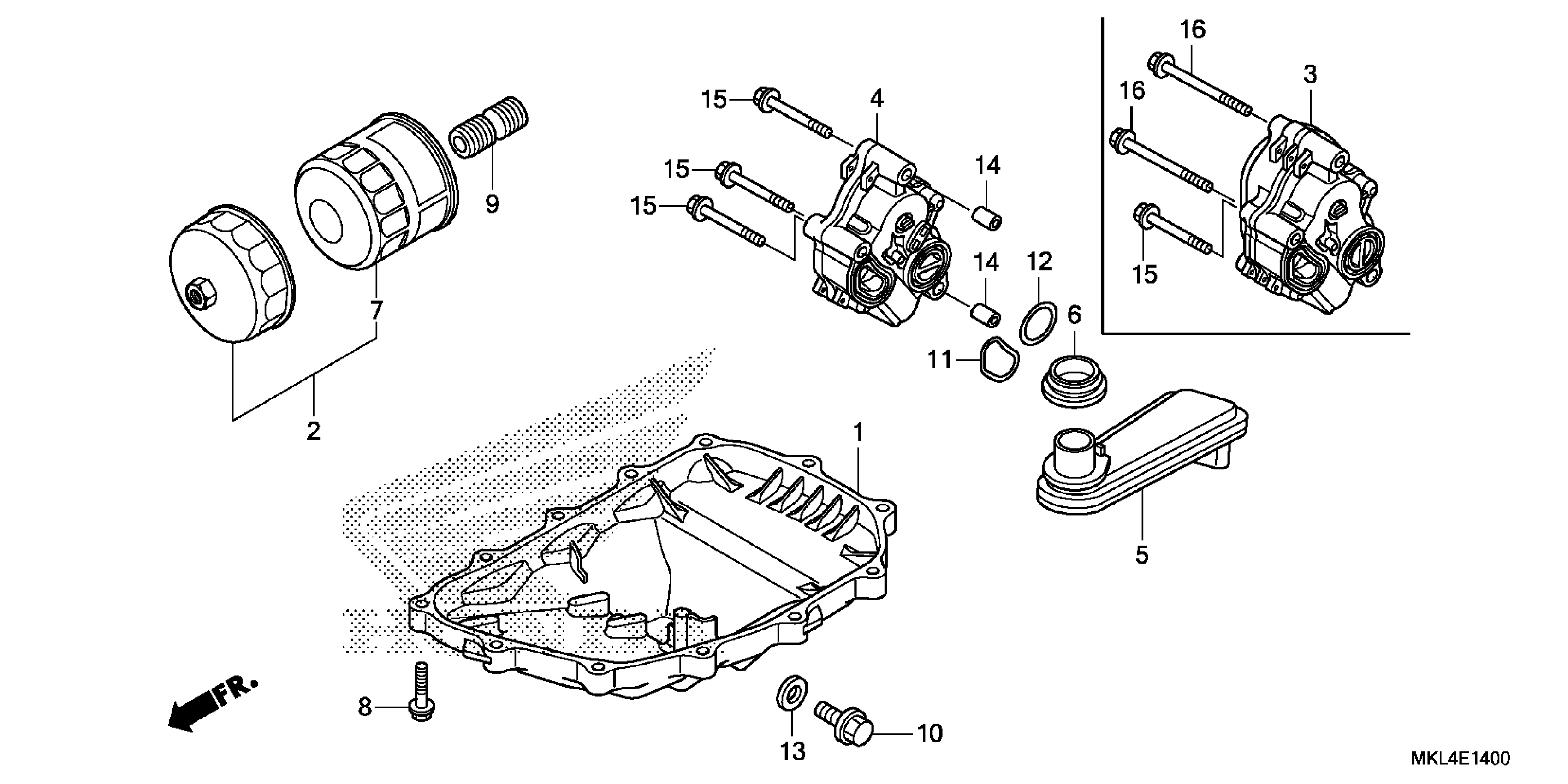

Honda NC750XDAC (19) MOTORCYCLE, JPN, VIN# JH2RC905-KK100001 OIL PAN@OIL PUMP Diagram

PAN, OIL

11210-MGS-D31

$272.77

FILTER SET, OIL | (Optional). This part replaces 15010-MCE-H51.

15010-MKR-305

$20.30

FILTER SET, OIL | (Optional).

15010-MKR-305

$20.30

PUMP ASSY., OIL

15100-MGS-D20

$155.67

STRAINER, OIL

15150-MGS-D30

$39.30

GASKET, OIL STRAINER

15154-MAT-000

$6.16

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$15.84

FILTER, OIL (WAKO FILTER)

15410-MFJ-D02

$15.84

BOLT, FLANGE (6X28)

90027-GHB-690

$2.33

BOSS, OIL FILTER (Honda Code 1243435)

90019-MB0-000

$8.61

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$3.98

BOLT, DRAIN PLUG (12X15)

90131-896-650

$3.98

O-RING (32X1.7)

91301-MEE-003

$1.90

O-RING (24.5X1.9)

91307-PY4-003

$2.86

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

BOLT, FLANGE (6X75)

95701-06075-00

$2.30
