Description

Price

1

DAMPER SET, WHEEL

06410-MGS-D30

$59.16

2

SPROCKET, FINAL DRIVEN (39T)

41201-MGS-D70

$77.70

3

AXLE, RR. WHEEL

42301-MGS-D31

$47.56

4

COLLAR, L. RR. WHEEL SIDE

42311-MGS-D10

$21.21

5

COLLAR, RR. BRAKE SIDE

42312-MGS-D10

$15.62

6

RING, RR. PULSER

42515-MGS-D80

$63.00

7

FLANGE SUB-ASSY., RR. DRIVEN

42615-MGS-D30

$259.90

8

COLLAR, RR. AXLE DISTANCE

42620-MGS-D10

$25.44

9

COLLAR B, RR. WHEEL DISTANCE

42625-MGS-D30

$19.46

10

WHEEL SUB-ASSY., RR. (TYPE1)

42650-MKA-D81ZB

$896.11

11

WEIGHT, BALANCE (10G)

42704-MER-D00

$9.61

11

WEIGHT, BALANCE (20G)

42705-MER-D00

$17.93

11

WEIGHT, BALANCE (30G)

42706-MER-D00

$17.67

12

TIRE, RR. This part replaces 42711-MJL-D34.

42711-MJL-D35

$200.71

12

TIRE, RR. (160/60ZR17 M/C 69W) (BS)

42711-MKA-D81

$214.68

13

VALVE ASSY., CLAMP IN

42755-MKA-D81

$16.58

14

O-RING

42758-MKA-D81

$1.52

15

DISK, RR. BRAKE (SUNSTAR)

43251-MGS-D31

$340.11

16

BOLT 2, STUD (12X25)

90102-MAS-000

$4.01

17

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$6.21

17

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

18

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

$3.85

19

NUT, U (18MM)

90306-MCS-G01

$6.81

20

WASHER (20X31.5X2)

90401-MAS-000

$3.21

21

WASHER, RR. SWINGARM

90559-MER-R60

$4.21

22

BEARING, ANGULAR BALL (22X50X15)

91051-MGS-D31

$38.11

23

BEARING, RADIAL BALL (6204UU)

91053-MGS-D31

$12.93

24

DUST SEAL (30X50X7)

91251-MGS-D31

$12.86

25

DUST SEAL (30X47X7.5)

91253-MAE-003

$15.95

26

O-RING (55X2)

91351-MGS-D30

$2.92

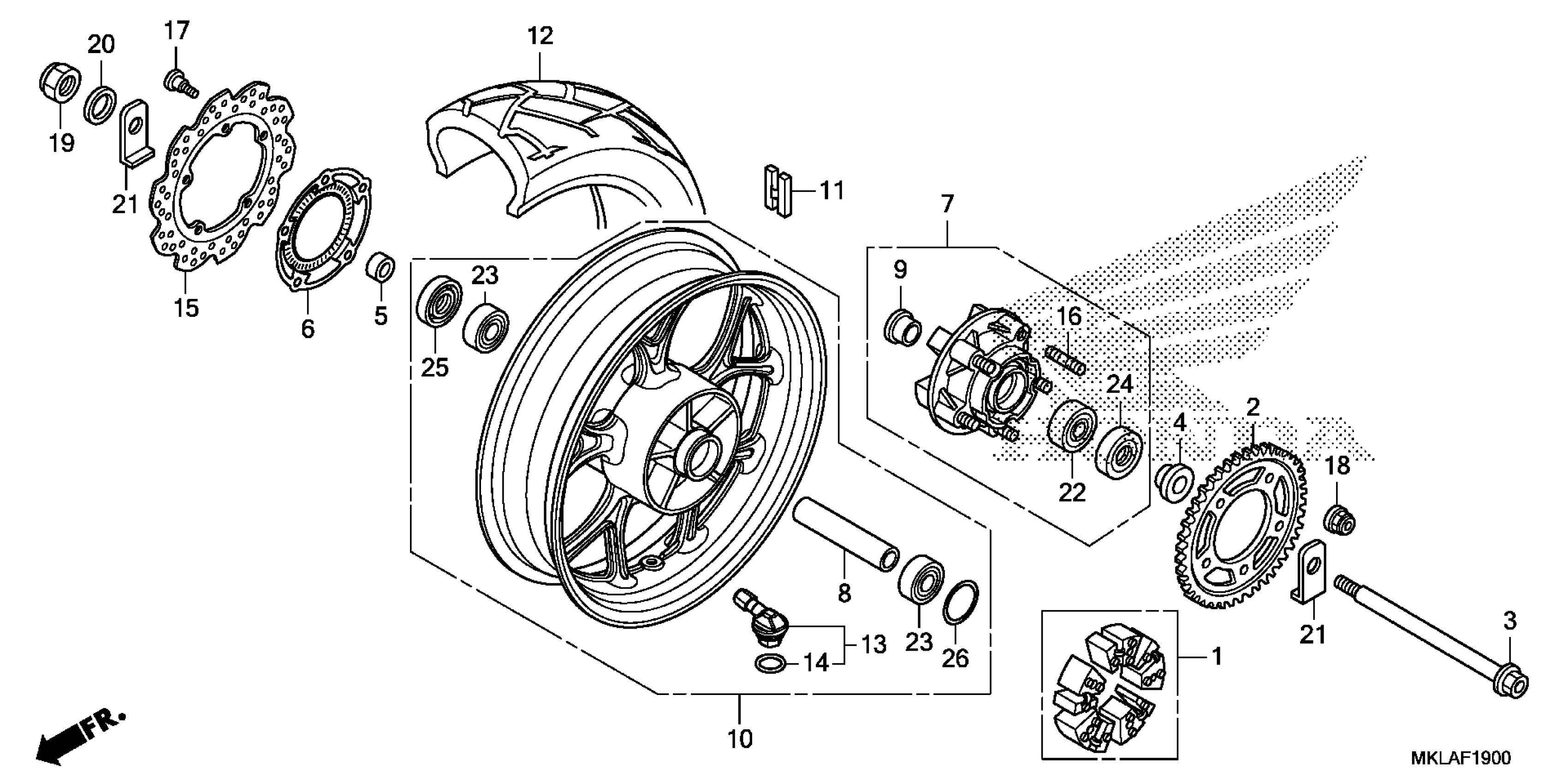

Honda NC750XDA (20) MOTORCYCLE, JPN, VIN# JH2RC904-LK200001 REAR WHEEL Diagram
