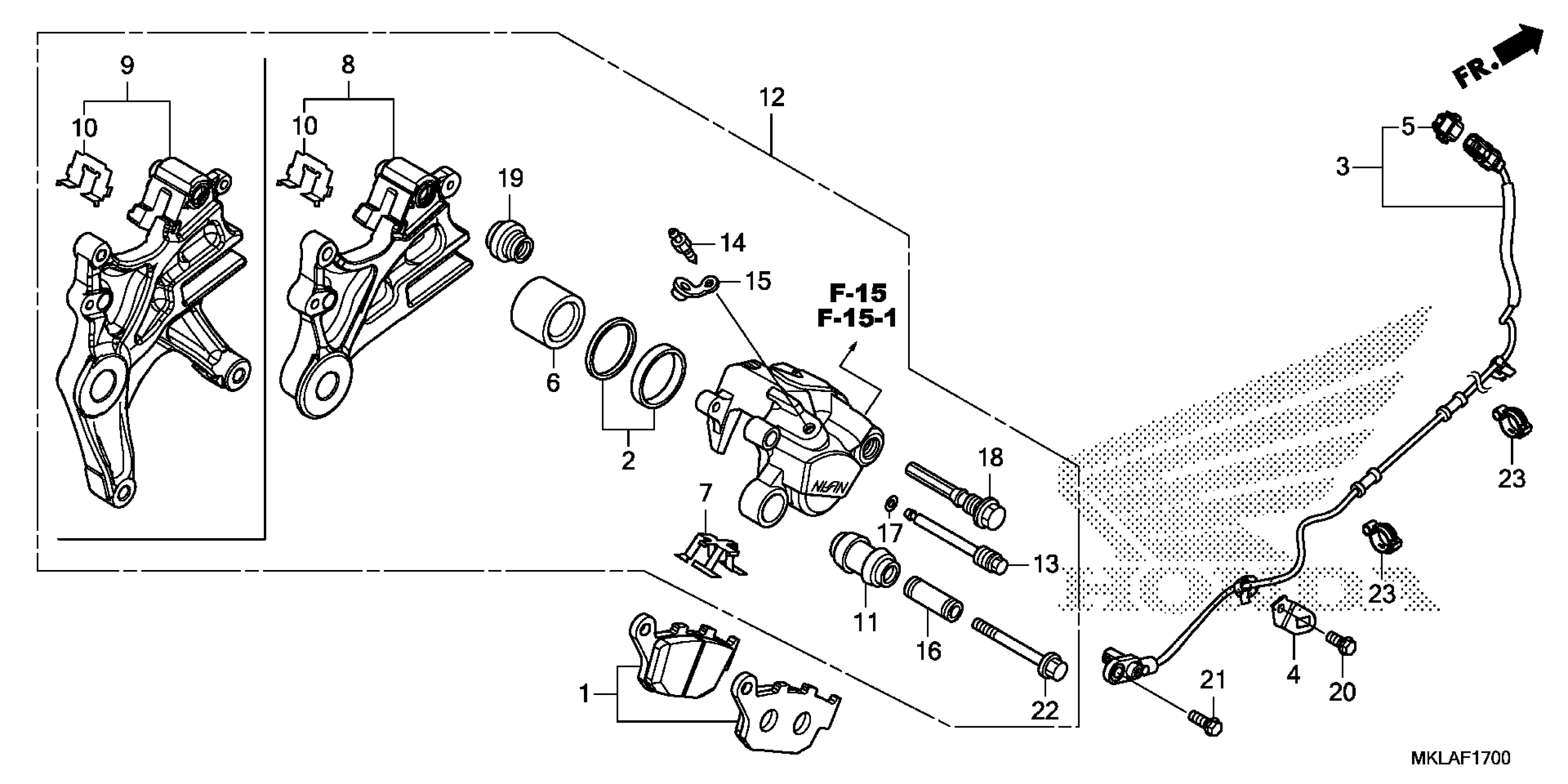

Honda NC750XDA (20) MOTORCYCLE, JPN, VIN# JH2RC904-LK200001 REAR BRAKE CALIPER Diagram

Description

Price

PAD SET, RR.

06435-MGS-D32

$44.08

SEAL SET, PISTON

06451-443-405

$12.15

SENSOR, RR. WHEEL SPEED

38510-MKA-D81

$153.56

STAY, SENSOR WIRE

38515-MKA-D80

$3.19

CLIP, CONNECTOR (DARK BLUE)

42524-T5A-003

$2.69

PISTON

43107-KT7-761

$34.77

SPRING, PAD

43108-MBB-006

$5.90

BRACKET, RR. BRAKE

43110-MKA-D51

$152.15

RETAINER

43112-MFF-D01

$7.03

BOOT, SLEEVE

43132-KT7-761

$7.85

CALIPER SUB-ASSY., RR.

43150-MKA-D51

$283.49

PIN, HANGER

43215-KZ4-J41

$5.02

SCREW, BLEEDER (NISSIN)

43352-568-003

$9.83

CAP, BLEEDER

43353-461-771

$4.83

SLEEVE

45111-MA3-006

$12.28

RING, STOPPER

45111-MAJ-G41

$3.63

BOLT, PIN

45131-MN9-006

$14.66

BOOT B

45133-MA3-006

$5.21

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.15

BOLT, FLANGE (6X16)

90116-MKA-D80

$1.99

BOLT, FLANGE (8X49)

90180-MN8-006

$5.80

CLIP, CABLE (12MM)

90690-MGS-D81

$2.06
