Description

Price

1

SEAL, IGNITION SWITCH

30433-MBW-602

$2.84

2

KEYSET This part replaces 35010-MKA-A32.

35010-MKA-A33

$227.54

3

SWITCH ASSY., COMBINATION & LOCK

35100-MKA-A32

$176.95

4

BASE, CONTACT

35101-MKA-D81

$64.85

5

COVER, COMBINATION SWITCH

35106-MAT-A00

$10.52

6

EMBLEM, KEY | (Optional).

35113-MJE-D00

$21.11

7

KEY, BLANK | (Optional).

35121-MJE-A02

$22.64

8

HANDLEBAR NH105 (MAT BLACK)

53100-MKA-D50ZB

$176.07

9

WEIGHT B, HANDLEBAR

53105-KV3-000

$17.27

10

WEIGHT, HANDLEBAR

53105-MK4-620

$15.03

11

RUBBER A, HANDLE WEIGHT

53106-KR3-000

$3.92

12

RUBBER, HANDLE WEIGHT (B)

53107-MY1-000

$7.00

13

RING, HANDLE WEIGHT SNAP

53108-KR3-770

$6.22

14

CLAMP, CABLE

53111-MKL-D50

$13.34

15

HOLDER ASSY., HANDLE (UPPER) NH105 (MAT BLACK)

53130-MGS-D30ZA

$114.67

16

BRIDGE, FORK TOP

53230-MGS-D30

$220.66

17

CAP, STEERING STEM NUT

53232-MJ4-670

$13.43

18

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.62

18

EMBLEM, PRODUCT (UEHARA)

86150-KPG-902

$4.02

19

SCREW-WASHER (5X22)

90020-MBW-610

$2.56

20

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.92

21

BOLT, FLANGE (8X36) BOLT, FLANGE (8X35)

90111-362-000

$4.80

22

BOLT, FLANGE SOCKET (8X32)

90160-MGJ-D00

$4.44

23

SCREW, OVAL (6X65)

90191-KBG-000

$4.94

24

NUT, STEERING STEM FLANGE

90304-MCF-000

$10.79

25

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

26

CLIP, HANDLEBAR

91501-MKA-D80

$2.11

27

CLIP, CONNECTOR (BLACK)

91533-MGS-D30

$1.49

28

BOLT, SOCKET (6X16)

96600-06016-08

$1.74

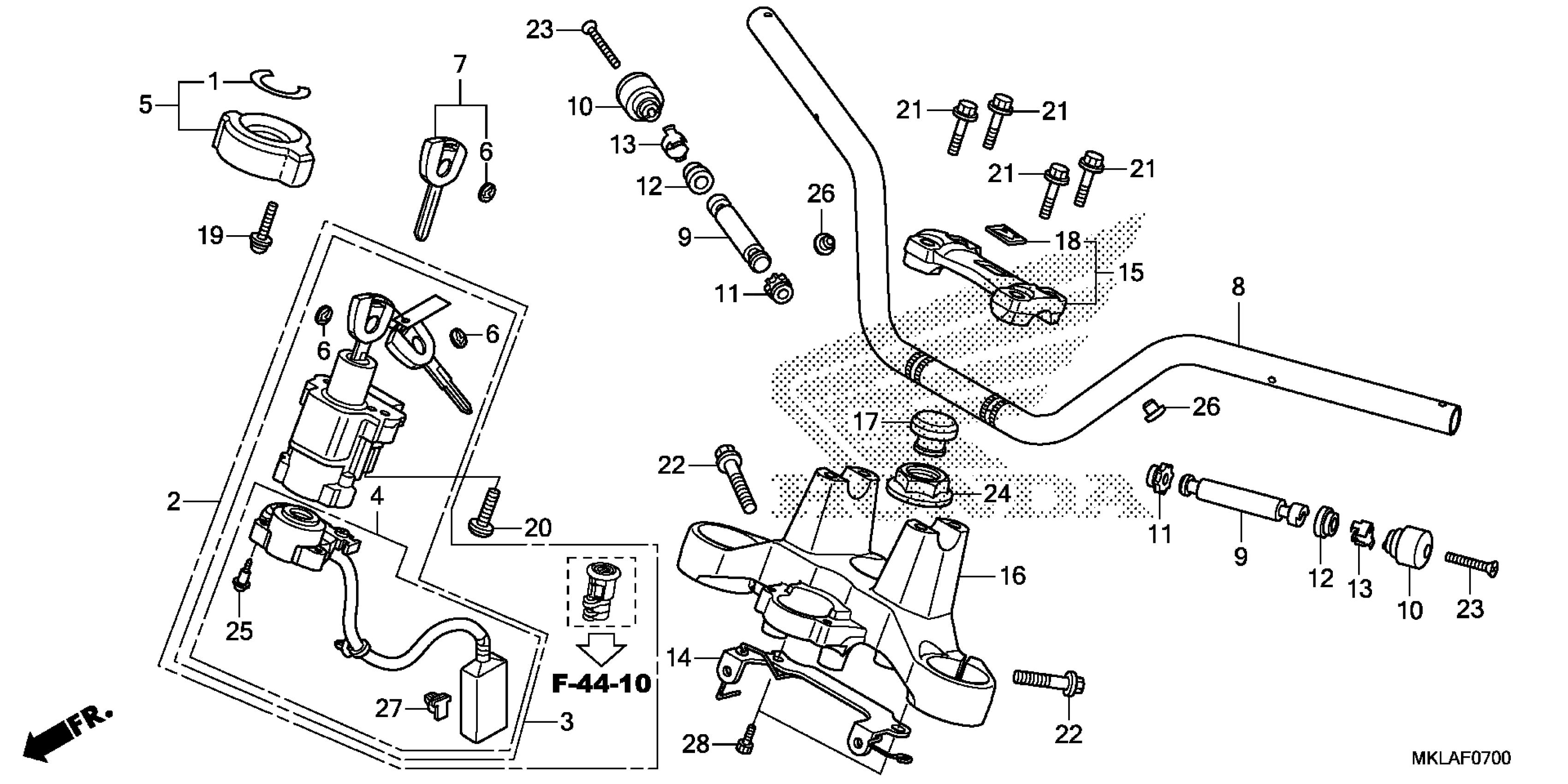

Honda NC750XDA (20) MOTORCYCLE, JPN, VIN# JH2RC904-LK200001 HANDLEBAR@TOP BRIDGE Diagram
