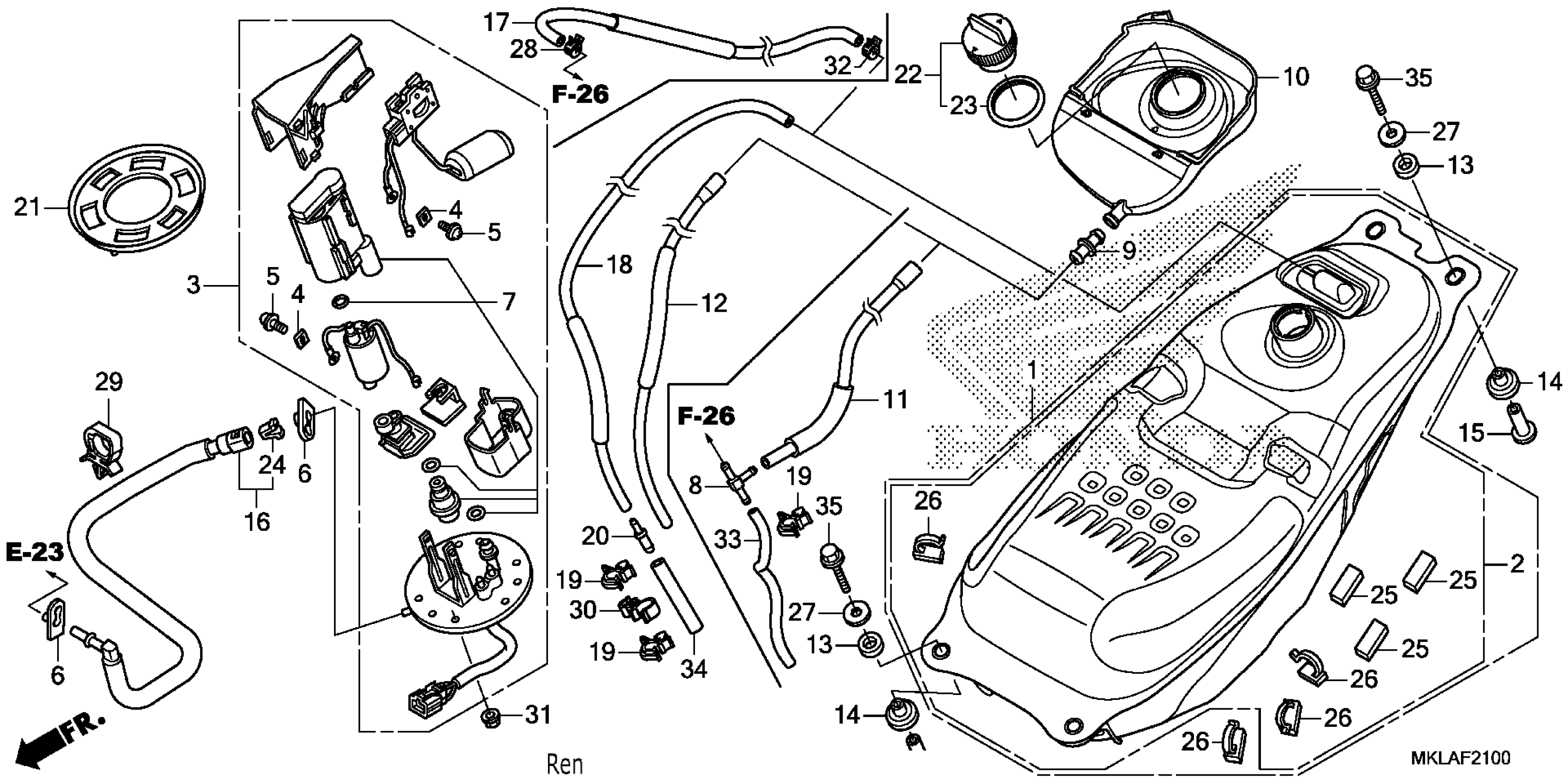

Honda NC750XDA (20) MOTORCYCLE, JPN, VIN# JH2RC904-LK200001 FUEL TANK@FUEL PUMP Diagram

#

Description
Price

1

TANK ASSY., FUEL *NHA86M* (MAT BALLISTIC BLACK)

04801-MGS-D31ZE

$706.56

3

UNIT, FUEL PUMP This part replaces 16700-MKA-D82.

16700-MKA-D83

$660.21

4

STOPPER

16711-MGS-D31

$4.47

5

SCREW (4X6.6)

16712-MGS-D31

$1.74

6

DAMPER, CONNECTOR

16719-MEW-920

$2.80

7

FILTER ASSY., FUEL This part replaces 16730-MKA-D82.

16730-MKT-D01

$38.84

9

JOINT, BREATHER TUBE

17359-419-670

$1.90

10

TRAY, FUEL TANK

17507-MGS-D30

$17.32

12

TUBE, DRAIN

17508-MKA-C50

$16.60

13

RUBBER, FUEL TANK MOUNTING (UPPER)

17516-MGS-D30

$2.28

14

RUBBER, FUEL TANK MOUNTING (LOWER)

17517-MGS-D30

$3.60

15

COLLAR, FUEL TANK

17518-MGS-D30

$2.68

16

HOSE, FUEL FEED

17526-MGS-D31

$190.25

18

TUBE, SEPARATOR BREATHER

17530-MKA-C50

$19.13

20

JOINT, BREATHER TUBE

17561-MEE-000

$4.26

21

GASKET, BASE

17574-MGS-D30

$22.44

22

CAP, FUEL FILLER This part replaces 17620-KFR-840.

17620-KFR-841

$36.91

23

GASKET, FUEL FILLER CAP This part replaces 17632-383-831.

17632-383-832

Unavailable

23

GASKET, FUEL FILLER CAP

17632-383-832

Unavailable

24

RETAINER

17711-MGE-003

$6.05

25

RUBBER, RR. FRAME

80129-MEG-000

$1.32

26

CLIP, HARNESS

83705-MZ7-300

$6.63

27

WASHER (6.5X25X1.5)

90404-680-000

$4.64

31

NUT, FLANGE (6MM)

94050-06080

$0.60

34

BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M)

95005-80001-20M

$27.67

35

BOLT, FLANGE (6X40)

95701-06040-08

$1.69
