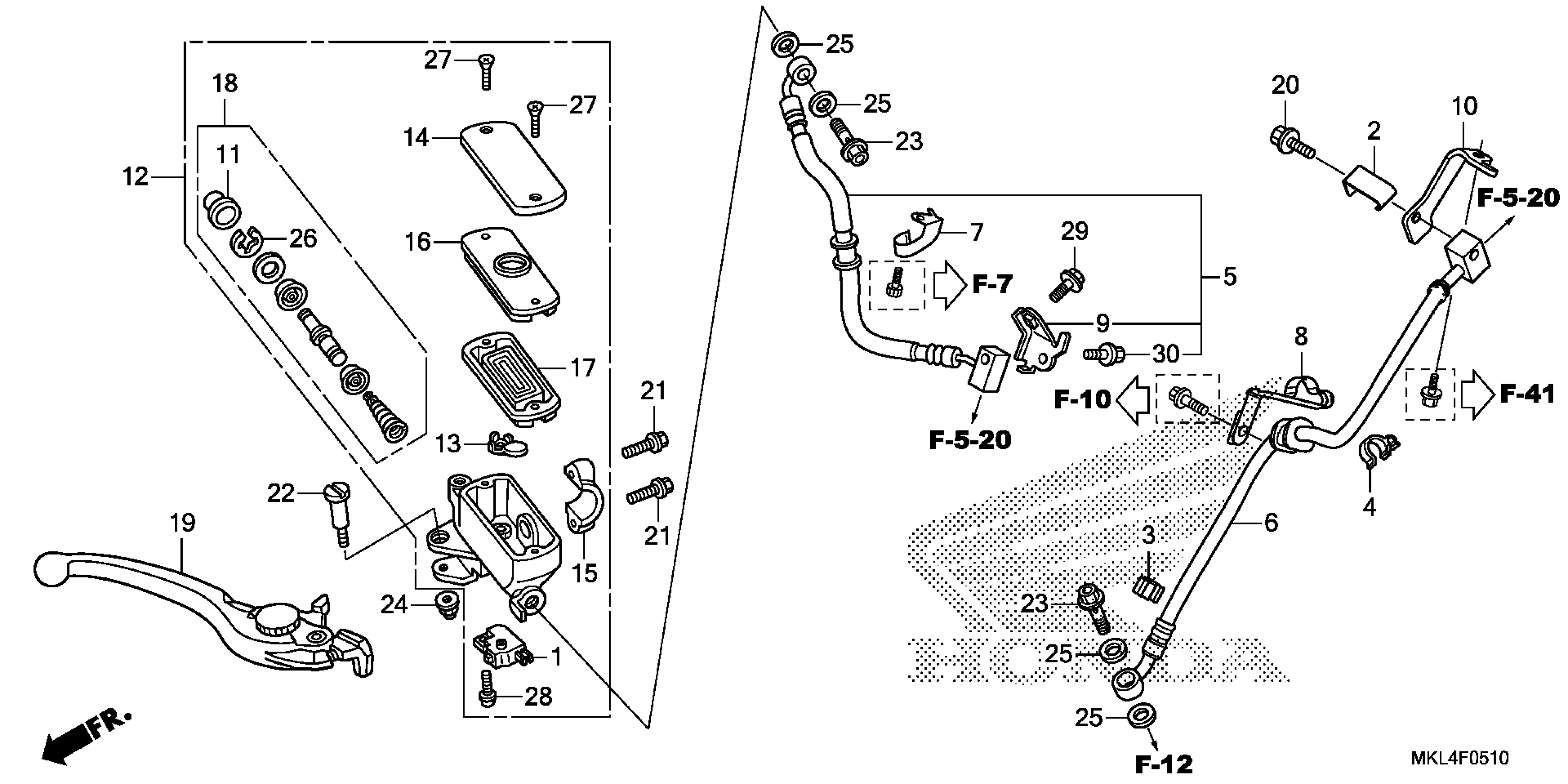

Honda NC750XDA (18) MOTORCYCLE, JPN, VIN# JH2RC904-JK000001 TO JH2RC904-JK099999 FRONT BRAKE MASTER CYLINDER (2) Diagram

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

CLAMP, SENSOR WIRE

38514-MJF-C10

$3.75

CLAMP, ABS WIRE (D8.5)

38516-MGE-003

$3.10

CLAMP, ABS WIRE (D12)

38517-MGE-003

$2.72

HOSE A, FR. BRAKE

45125-MGS-D81

$56.59

HOSE D, FR. BRAKE

45128-MKL-D81

$57.64

CLAMP A, FR. BRAKE HOSE

45155-MGS-D80

$5.75

CLAMP A, FR. BRAKE HOSE

45156-MJL-D80

$10.48

STAY, FR. BRAKE HOSE

45158-MGS-D80

$5.93

STAY, FR. BRAKE HOSE

45160-MJF-C11

$9.66

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR. (NISSIN)

45510-MGS-D31

$279.84

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$10.65

DIAPHRAGM (NISSIN)

45520-MM5-006

$15.12

MASTER CYLINDER SET

45530-KVY-911

$26.57

LEVER ASSY., R. HANDLE

53170-MEJ-016

$45.19

BOLT, FLANGE (6X14)

90013-GHB-620

$2.33

BOLT, FLANGE (6X22)

90013-GHB-660

$2.33

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

BOLT, FLANGE (6X14)

95701-06014-07

$1.49

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.72
