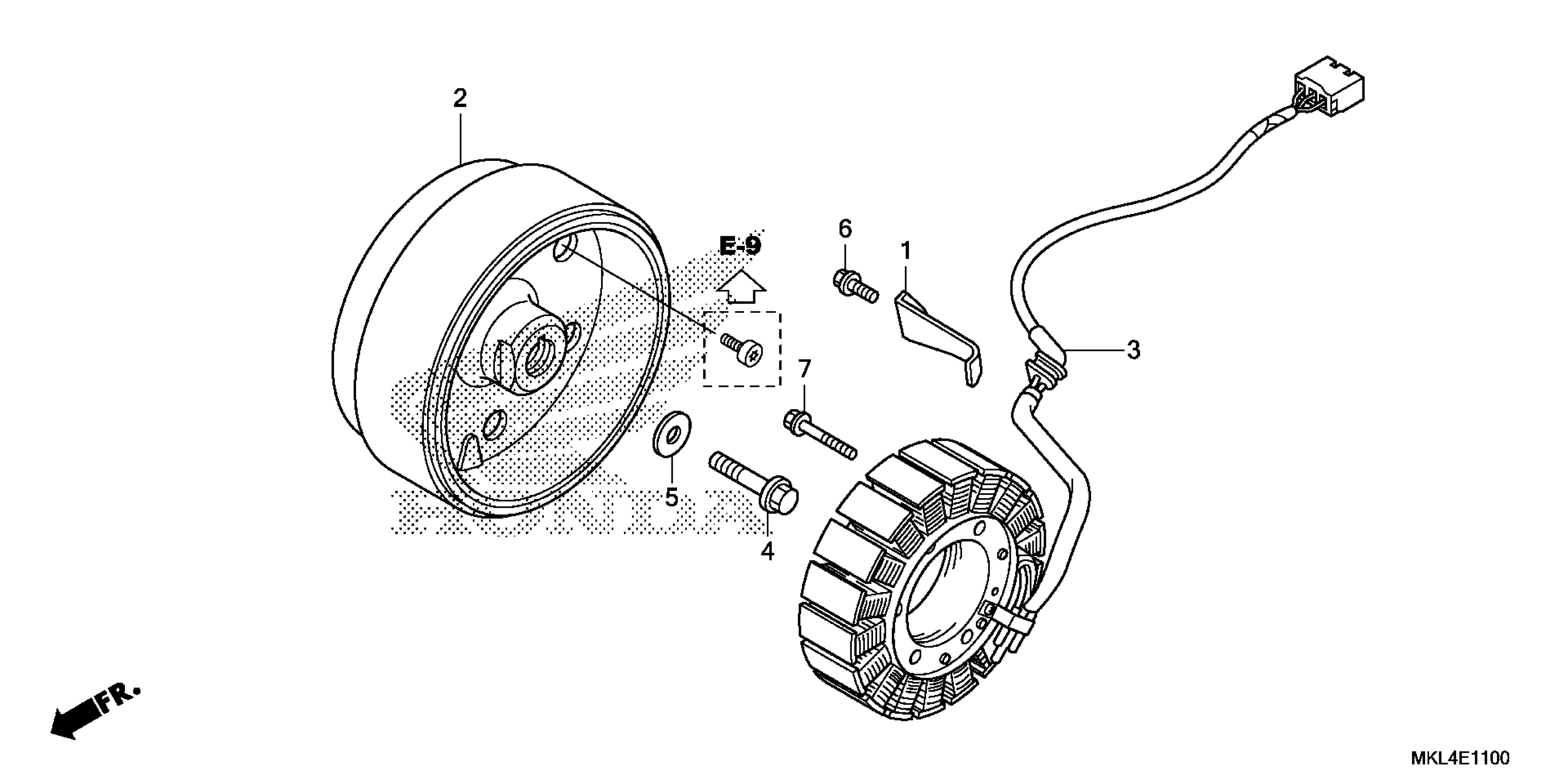

Honda NC750XDA (18) MOTORCYCLE, JPN, VIN# JH2RC904-JK000001 TO JH2RC904-JK099999 ALTERNATOR Diagram

#

Description

Price

1

CLAMP, ALTERNATOR CORD

11333-MGS-D30

$3.72

2

FLYWHEEL (MITSUBA)

31110-MJF-A01

$521.84

3

STATOR (MITSUBA)

31120-MJL-D51

$424.25

4

BOLT, FLANGE (12X50) (UBS)

90025-MEW-920

$6.01

5

WASHER (12.5X34X5)

90403-MEW-920

$4.32

6

BOLT, FLANGE (6X14)

96001-06014-00

$1.66

7

BOLT, FLANGE (6X40)

96001-06040-00

$2.59
