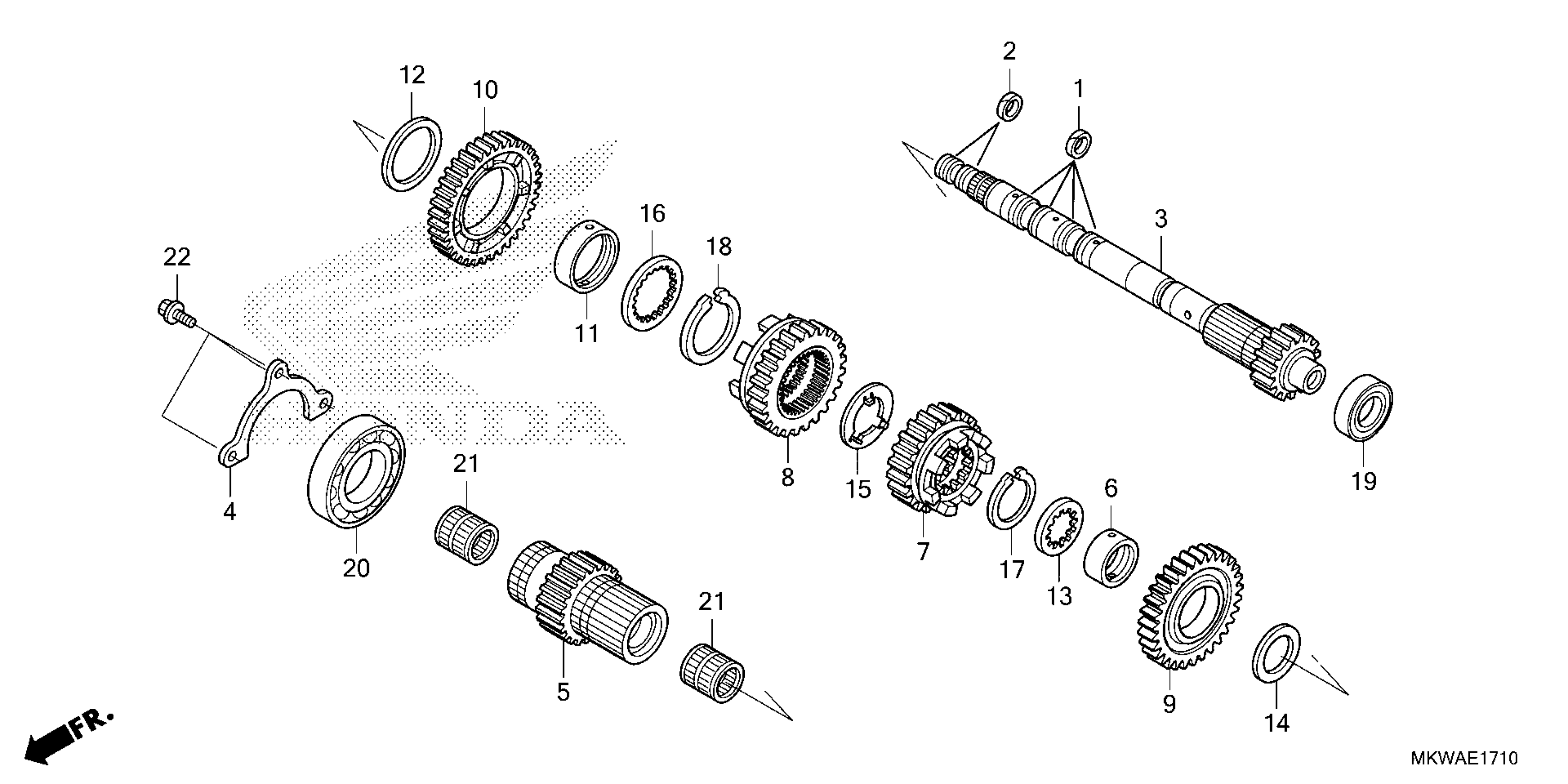

Honda NC750XD2AC (25) MOTORCYCLE, JPN, VIN# JH2RH231-SK000001 TO JH2RH231-SK099999 TRANSMISSION (MAINSHAFT) Diagram

RING, SEALING (26MM)

22814-PFL-003

$6.77

SEAL, RING (21.2MM)

22814-RGC-003

$12.00

MAINSHAFT (INNER) (15T)

23210-MKT-D00

$261.12

PLATE, MAINSHAFT BEARING SETTING

23212-MGS-D30

$2.96

MAINSHAFT (OUTER) (21T)

23231-MKT-D00

$211.38

COLLAR (30X11.2)

23442-MS2-610

$21.93

GEAR, MAINSHAFT THIRD (22T)

23451-MKT-D00

$92.96

GEAR, MAINSHAFT FOURTH (28T)

23471-MKT-D00

$97.79

GEAR, MAINSHAFT FIFTH (31T)

23491-MKT-D00

$73.69

GEAR, MAINSHAFT SIXTH (38T)

23511-MKT-D00

$98.60

COLLAR (40X43X10)

23512-MGS-D20

$11.66

WASHER

90403-MK2-300

$5.40

WASHER, SPLINE (30X36X1.5)

90452-MAT-000

$3.04

WASHER, THRUST (30.5MM)

90458-MAT-E00

$1.69

WASHER, SPECIAL (26X42X2)

90463-MKT-D00

$6.34

WASHER, SPLINE (40MM)

90493-MGE-D00

$7.46

CIRCLIP (30MM)

90604-MM5-000

$4.28

CIRCLIP (40MM)

90605-MGE-D00

$6.41

BEARING, RADIAL BALL (6204U)

91006-MGS-D31

$16.01

BEARING, RADIAL BALL (6008)

91023-MGS-D21

$22.12

BEARING, NEEDLE (26X31X22) (NTN)

91104-PL9-008

$12.93

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93
